Shandong New Luxing Cable Co., Ltd. >> ABC Cable (Aerial Bundled Cable)

ABC Cable (Aerial Bundled Cable)

ABC Cable (Aerial Bundled Cable)
Price: US $ 0.1-1/Meter
Min Order: 2000/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: ABC Cable ( Aerial Bundled Cable )
Product Name: ABC Cable ( Aerial Bundled Cable )
Rated Voltage: 0.6/1 Kv
Conductor: Aluminum
Insulation: XLPE
Usage: Overhead
Origine: Shandong , China
Certificates: ISO Ce CCC RoHS
Free Sample: Yes
Packaging: Wooden Drum Ateel Wooden Drum
Shipping: 3-10 Working Days
Application: Overhead
Voltage: Low and Medium Voltage Cable
Current: DC & AC
Insulation Material: XLPE
Certification: GB/T
Sheath Material: None
Wire Core Material: Bare Coper
Model: ABC Cable ( Aerial Bundled Cable )
Brand: Chang Qing Teng

Product Description

Shandong New Luxing Cable Co.ltd

Workshop:  we are factory.

Good team: we offer you compective price with best service.

Welcome to visit our factory !

1.Introduction of ABC Cable ( Aerial Bundled Cable )

ABC cable is suitable for transmitting line and distributing line of rated voltage 0.6/1KV and others.It is widely used at tall buildings,traveling development area and rural area or other place the cost of underground network is expensive.
This ABC cable is manufactured according to Chinese National Standards,IEC,SANS 1418, ASTM,NF C33-209 and etc. upon request.



2.Construction of ABC Cable ( Aerial Bundled Cable )

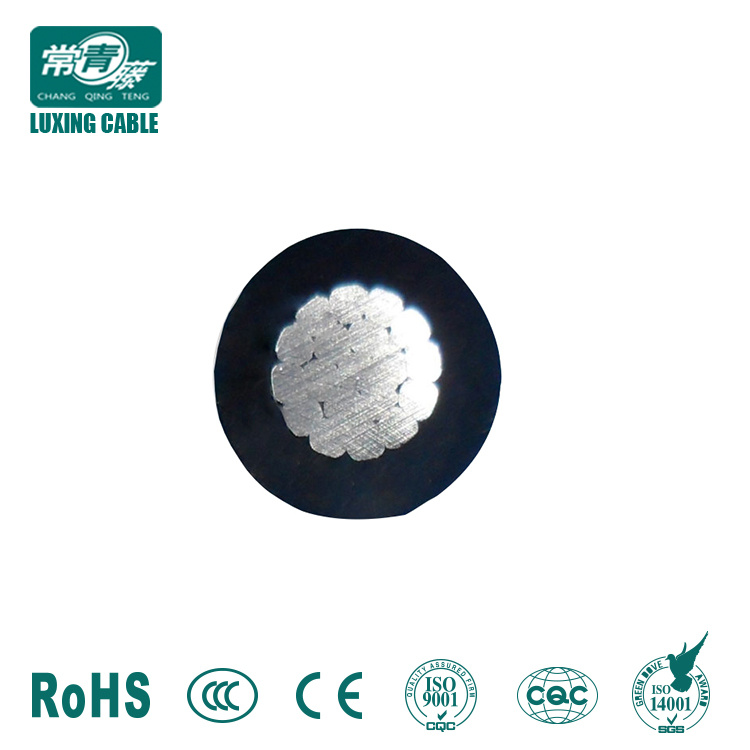

ABC Cable ( Aerial Bundled Cable ) are concentrically stranded EC Grade aluminum wires, insulated with either black weather resistant cross linked polyethylene (XLPE) or polyethylene (PE). The conductor insulation is marked with longitudinal ridges for phase identification.

Neutral messengers are concentrically stranded AAC or 6201 Alloy or ACSR. Neutral messenger can either be bare or insulated, depending on ABC aerial cable design.

Temperature Range
-15ºC-90ºC



3.Standards of ABC Cable ( Aerial Bundled Cable )

BS7870, HD626, NF33, IEC228, IEC209, IEC60502



4.Application of ABC Cable ( Aerial Bundled Cable )

New type of Aerial Bundle Cable for Power transmission, used for rebuilding of urban and forest regions, which can improve safety and reliance of electrified wire netting.

ABC Cable ( Aerial Bundled Cable )
SPEC. mm2Conductor StructureInsulation MaterialInsulation Thickness (mm)Approx. Overall Diameter (mm)Approx. Weight (kg/km)Packing Meters per Drum
Phase (Compacted AL)Neutral(Alloy)
(No./mm)Aluminum (No./mm)
1x16+1x167/1.727x1.72XLPE (HDPE)1.212.5110.1250-4000m
1x25+1x257/2.157/2.151.214.9163.9250-4000m
1x35+1x357/2.547/2.541.417.5229.0250-3500m
1x50+1x507/2.927/2.921.420.1300.0250-3000m
1x70+1x7019/2.1519/2.151.423.6423.2250-3000m
1x95+1x9519/2.5419/2.541.627.6585.4250-3000m
2x16+1x167/1.727/1.721.214.2175.8250-4000m
2x25+1x257/2.157/2.151.216.7258.4250-3500m
2x35+1x357/2.547/2.541.419.7361.2250-3500m
2x50+1x507/2.927/2.921.422.5472.1250-3000m
2x70+1x7019/2.1519/2.151.426.1658.3250-3000m
2x95+1x9519/2.5419/2.541.630.5908.2250-3000m
3x16+1x167/1.727/1.721.216.3241.5250-3500m
3x25+1x257/2.157/2.151.219.1353.6250-3500m
3x35+1x357/2.547/2.541.422.5493.5250-3000m
3x50+1x507/2.927/2.941.425.7644.1250-3000m
3x70+1x7019/2.1519/2.151.429.7895.2250-3000m
3x95+1x9519/2.5419/2.541.634.61233.5250-3000m

ABC Cable ( Aerial Bundled Cable )
SPEC. mm2Conductor Structure (Compacted AL) (No./mm)Insulation MaterialInsulation Thickness (mm)Approx. Overall Diameter (mm)Approx. Weight (kg/km)Packing Meters per Drum
2x167/1.72XLPE (HDPE)1.214.6131.4250-4000m
2x257/2.151.216.8189.0250-4000m
2x357/2.541.419.8264.5250-3500m
2x507/2.921.422.6344.1250-3000m
2x7019/2.151.425.6470.0250-3000m
2x9519/2.541.629.8645.5250-3000m
3x167/1.721.215.7197.1250-4000m
3x257/2.151.218.1283.5250-3500m
3x357/2.541.421.3396.7250-3500m
3x507/2.921.424.3516.2250-3000m
3x7019/2.151.427.6705.1250-3000m
3x9519/2.541.632.1968.2250-3000m
4x167/1.721.217.6262.9250-3500m
4x257/2.151.220.3378.0250-3500m
4x357/2.541.423.9528.9250-3000m
4x507/2.921.427.3688.3250-3000m
4x7019/2.151.430.9940.1250-3000m
4x9519/2.541.636.01291.0250-3000m

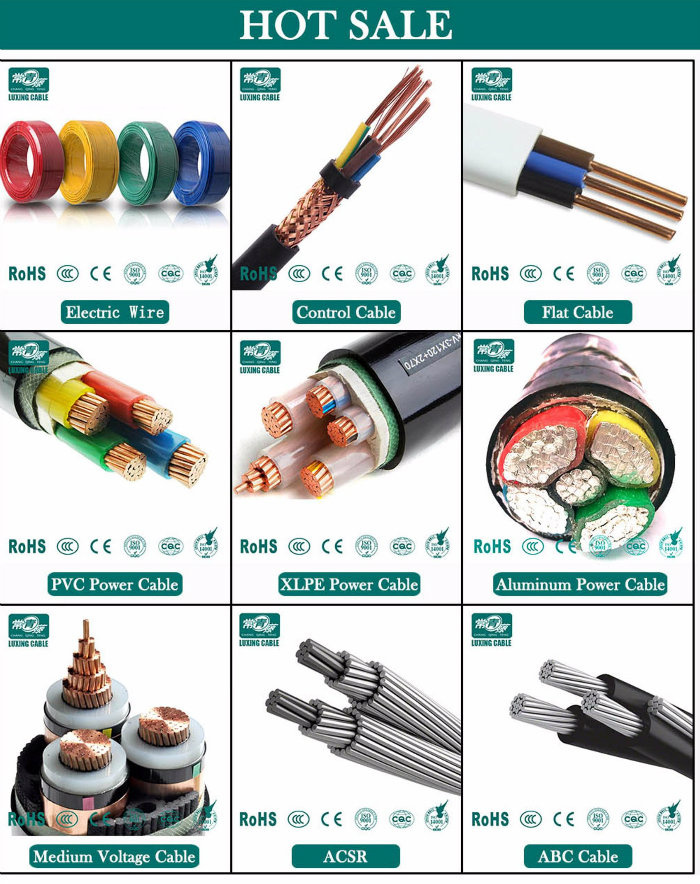

We mainly produce

300/500V 450/750V electrical wire AAC conductor
600/1000V PVC insulated cableAAAC conductor
600/1000V XLPE insulated cableACSR conductor
1.8/3KV to 26/35KV power cable OPGW
Armored underground cableABC cable
Control cable and instrumentation cables Rubber cable


Company Information

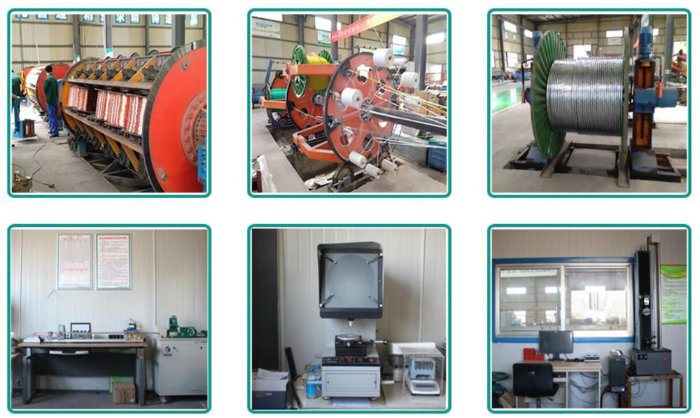

Workshop:  we are factory with 19 years experience .

We are the factory

We can provide competitive price and spot supply

We offer door-to-door service

We supply cables for engineering project and bidding project

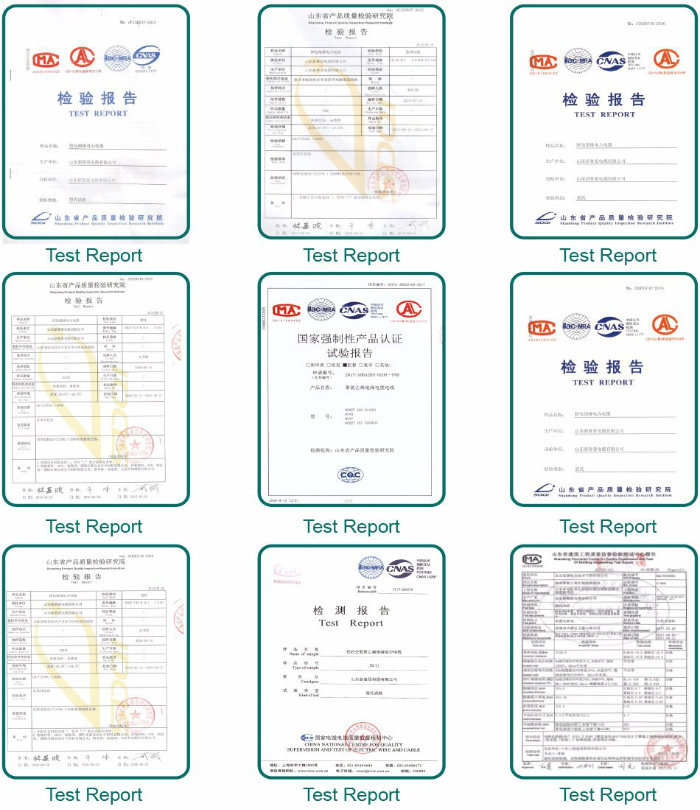

Type test report




We supply cables to





FAQ

Why choose us ?

1.19 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency



Contact us




1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
