ABC Electrical Power Conductor Cable Sac Cable 95mm2

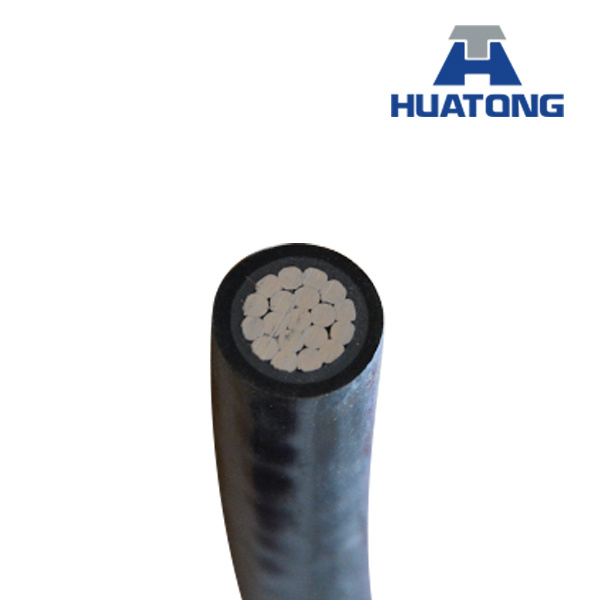

Name: ABC Electrical Power Conductor Cable Sac Cable 95mm2
Brand: all-electronics-online.com
SKU: 808158475
Availability: InStock
Rating: 4.9 (87 reviews)

Price:	US $ 1/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SAC cable
MOQ:	1km
Voltage:	12kv
Type:	Insulated
Conductor Type:	Stranded
Application:	Overhead
Conductor Material:	Aluminum
Insulation Material:	XLPE
Certification:	VDE
Sheath Material:	HDPE
Range Of Application:	Overhead
Brand:	Huatong

Product Description

Product Description
SAC cables 15kV 36kv AL Conductor XLPE Single Core SAC Cable
Specifications
Aluminum Conudcor
XLPE insulation
TIS 293-2541 & ICEA S-66-524
For aerial power transmission and distribution line
25kV 90 °C SAC (Spaced Aerial Cable)
Construction
1. Conductor : Compact round stranded hard-drawn aluminum wires
2. Insulation : Cross-linked polyethylene (XLPE)
3 Sheath: HDPE

Reference Standard
Construction    : TIS 293-2541 Table 2 , ICEA S-66-524 (1988)

Classification
Maximum conductor temperature : 90 °C
Maximum circuit voltage: 25,000 V
AC test voltage: 38,000 V

Conductor			Thickness of conductor Screen mm (Average)	Thickness of insulation mm (Nominal)	Thickness of Jacket mm (Nominal)	Overall Diameter Mm (Approx.)	Conductor resistance at 20°C Ω/km (Max.)	Insulation resistance at 15.6°C MΩ*km (Min.)	Conductor Weight	Breaking strength N (Min)	Current rating in free air at 40°C ambient A	Cable weight Kg/km (Approx.)
Cross- sectional area mm2 (Nominal)	Number of o wires (Min.)	Diameter of i conductor mm (Approx.)	Thickness of conductor Screen mm (Average)	Thickness of insulation mm (Nominal)	Thickness of Jacket mm (Nominal)	Overall Diameter Mm (Approx.)	Conductor resistance at 20°C Ω/km (Max.)	Insulation resistance at 15.6°C MΩ*km (Min.)	Conductor Weight	Breaking strength N (Min)	Current rating in free air at 40°C ambient A	Cable weight Kg/km (Approx.)
35	6	6.88	0.3	3.175	3.175	21.0	0.868	2580	94	5591	150	381
50	6	7.92	0.3	3.175	3.175	22.0	0.641	2380	128	7313	181	438
70	12	9.55	0.3	3.175	3.175	23.5	0.443	2126	185	10420	225	527
95	15	11.27	0.3	3.175	3.175	25.5	0.320	1913	256	14098	275	636
120	15	12.68	0.3	3.175	3.175	27.0	0.253	1759	324	18518	319	734
150	15	14.05	0.3	3.175	3.175	28.0	0.206	1648	398	22457	362	838
185	30	15.75	0.3	3.175	3.175	30.0	0.164	1521	500	58974	418	970
240	30	18.23	0.3	3.175	3.175	32.5	0.125	1367	655	37506

Huatong Cable Inc. has made outstanding contribution to STATE GRID, China SOUTH POWER GRID and the construction of domestic and foreign power market since foundation in 1993. The honors should be attributed to more than 20 years of constant R&D, market service and strong will.

Huatong Cable Inc. has set up overhead conductor division, power cable division and division of wire and cable for equipment. The division respectively takes charge of manufacture and marketing of overhead conductor, power cable and wire and cable for equipment. In 2002, our company set up the cable industry design and technology R&D department, providing technical support for product design and production. Our company makes independent innovation, and seeks cooperation with academic institutions including Shanghai Electric Cable Research Institute and China Electric Power Research Institute so as to meet the customized demands of customers and production needs of special cable. Now our company owns 25 exclusive rights to use trademark registered at home and abroad and 14 independent intellectual property patents. ACSR-720/50 aluminum cable steel reinforced has passed the technical appraisal of China Electricity Council. 500KV or above extra-high voltage conductor was put into production, came into service and had good operation record.

In 2013, Huatong Brand was awarded WELL KNOWN MARK OF China by the Trademark Office of the State Administration of Industry and Commerce, enjoying a high reputation in domestic market. The honor and legal status reflect the recognition of customers and support of the State Administration of Industry and Commerce. It is the only enterprise in cable industry in Henan that was awarded WELL KNOWN MARK OF China and Huatong brand will serve the society in the future.
