AC 220V Coil Magnetic Contactor DC 12V 3poles Contactor

Name: AC 220V Coil Magnetic Contactor DC 12V 3poles Contactor
Brand: all-electronics-online.com
SKU: 792590305
Availability: InStock
Rating: 5 (39 reviews)

Price:	US $ 5.97-6.62/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CC1-32

Product Description

CC1 Contactor 32A

1. Specification

Appliacatuon:Remote making&breaking circuits;Protect Circuit from over-load when assembing with thermal over-load relay;frequent start-up and control of Ac contactor;
Electric Ratings:AC50/60Hz,690V,up to 95A;
Utilization catagory:AC-3,AC-4
Altitude:<2000m,
Ambient temperature:-5ºC~+40ºC;
Mounting Cat:III
Mounting conditions:inckination between the mounting plane and the vertical plane should not exceed up&down 5ºC.
Standard:IEC/EN 60947-4-1

Control Coil Valtage (AC Coil Operation)

Volts(VAC)

110

127

220

230

240

380

415

440

480

500

600

Code

50Hz

60Hz

50/60Hz

Control Coil Valtage (DC Coil Operation)
Volts(VDC)	12	24	36	48	110	220
Code	JD	BD	CD	ED	FD	MD

Model No.		CC1-09	CC1-12	CC1-18	CC1-25	CC1-32	CC1-40	CC1-50	CC1-65	CC1-80	CC1-95
Rated Conventional Heating Current	Ith(A)	20	20	32	40	50	60	80	80	100	125
Rated Voltage Ui(V)	Ui(V)	690	690	690	690	690	690	690	690	690	690
Rated Operation Current Ue=380/415V	AC-3 Le(A)	9	12	18	25	32	40	50	65	80	95
Rated Operation Current Ue=380/415V	AC-4 Le(A)	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Power Controlled 3Ph Cage Motor AC3	220/240 kW	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/415 kW	4	5.5	7.5	11	15	18.5	22	30	37	45
	660/690 kW	5.5	7.5	10	15	18.5	30	33	37	45	45
Eletrical life(x10³ operations)	AC-3	1000	1000	1000	1000	800	800	600	600	600	600
Eletrical life(x10³ operations)	AC-4	200	200	200	200	200	150	150	150	100	100
Mechainical life(x10³ operations)		10	10	10	10	8	8	8	8	6	6
Matched Fuse	Size	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00
Matched Fuse	A	20	20	32	40	50	63	80	80	100	125
Main Circuit		3P or 4P

2. Dimension(mm)

Model	A	B	D	a	b	Φ
CC1-09	47	76	120.5(154.5)	34/35	50/60	4.5
CC1-18	47	76	125.5(160.5)	34/35	50/60	4.5
CC1-25	57	86	133.5(169.5)	40	48	4.5
CC1-32	57	86	138.5(176.5)	40	48	4.5

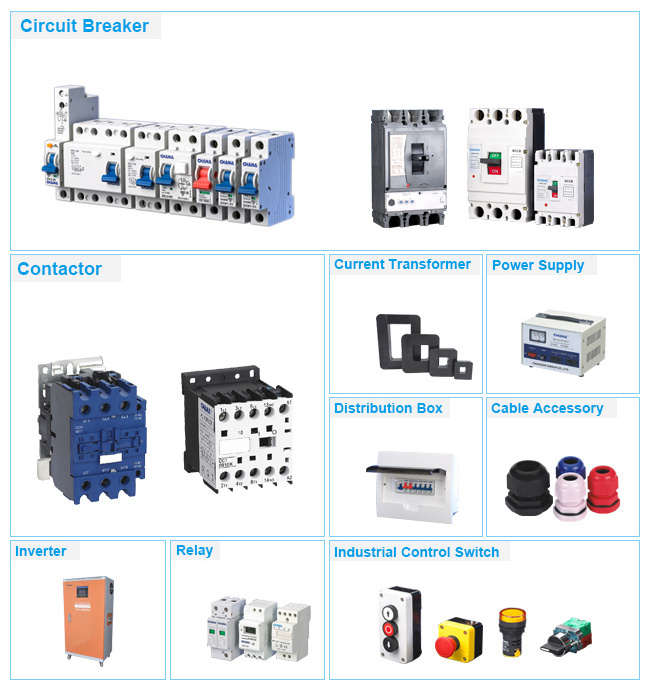

3. Feature Product
