AC 400V Fixed Type Acb 690V 3200A Air Circuit Breaker

Name: AC 400V Fixed Type Acb 690V 3200A Air Circuit Breaker
Brand: all-electronics-online.com
SKU: 743128715
Availability: InStock
Rating: 4.7 (55 reviews)

Price:	US $ 133.62-141.33/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CAW1-3200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Chaha
Size:	Big
Amper:	5000A
Export Market:	Global
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ACB
Poles Number:	3
Certification:	RoHS

Product Description

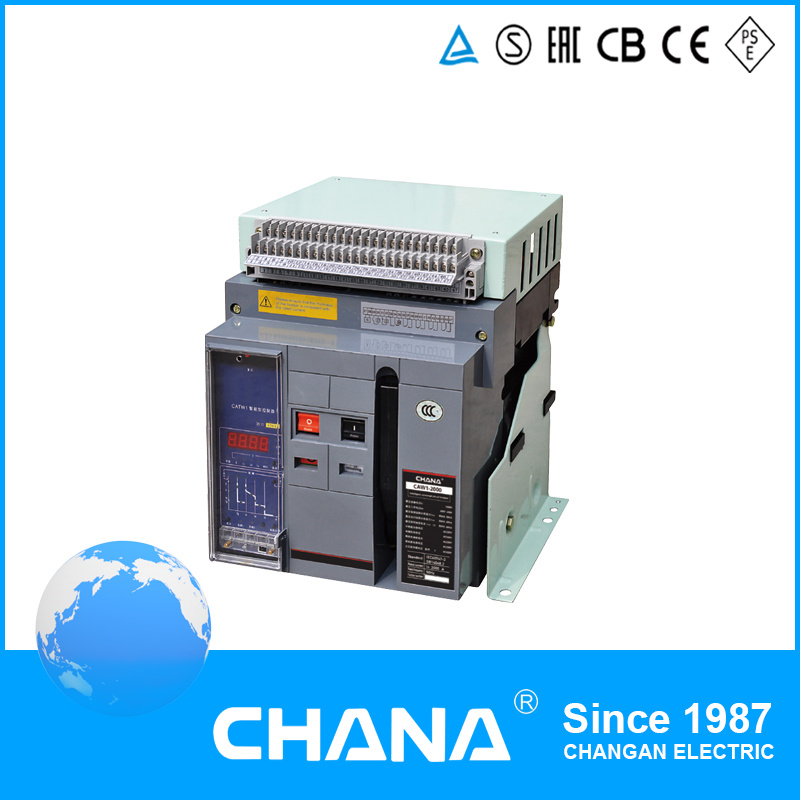

3200A Air Circuit Breaker

1. Application

ACB(Air circuit breaker) is suitable for the circuit of AC 50Hz with rated voltage up to 690V and rated current up to 6300A. It is mainly used to distribute electric energy and protect circuit and power supply equipment from overload, under voltage, short circuit and single phase earthing with intelligentized and selective protection function, the breaker can improve the reliability of power supply and avoid unnecessary power failure. The breaker is applicable for power stations, factories, mines (for 690V) and modern high-buildings, especially for the distribution system of intelligentized building. The whole series have past CCC and CE certification.

2. Specification

Rated operational voltage of the breaker is AC400/415/690V, with the rated current ranges from 630A to 6300A
Compact design with fixed and withdrawerable type
Standard of ACB: IEC/EC 60947-2
Telecommunication protocal: The protocals of Modbus, Profibus-DP and Device Net are avaiable
Breaking capacity under 415V

Type			CAW1-2000	CAW1-3200	CAW1-4000	CAW1-6300
Rated frame current Inm (A)			2000	3200	4000	6300
Number of poles			3,4	3,4	3,4	3,4
Rated current In (A)			630, 800, 1000,1250, 1600,2000	2000, 2500, 3200	3200, 3600, 4000	4000, 5000, 6300
Inc (kA)	400V		80	100	100	120
	690V		50	65	65	80
Ics=Icw (kA)	400V		50	80	80	100
	690V		40	50	50
Rated current at N-pole In(A)			50%In, 100%In
Inherent making & breaking time			23~32ms
Operation performance		Electric life	500
		Mechanical life	Maintenance-free 2500, Maintenance 10000
Mounting mode			Fixed withdrawable
Arcing distance (mm)			0
Intelligent controller			Standard type (M), telecommunication type (H)

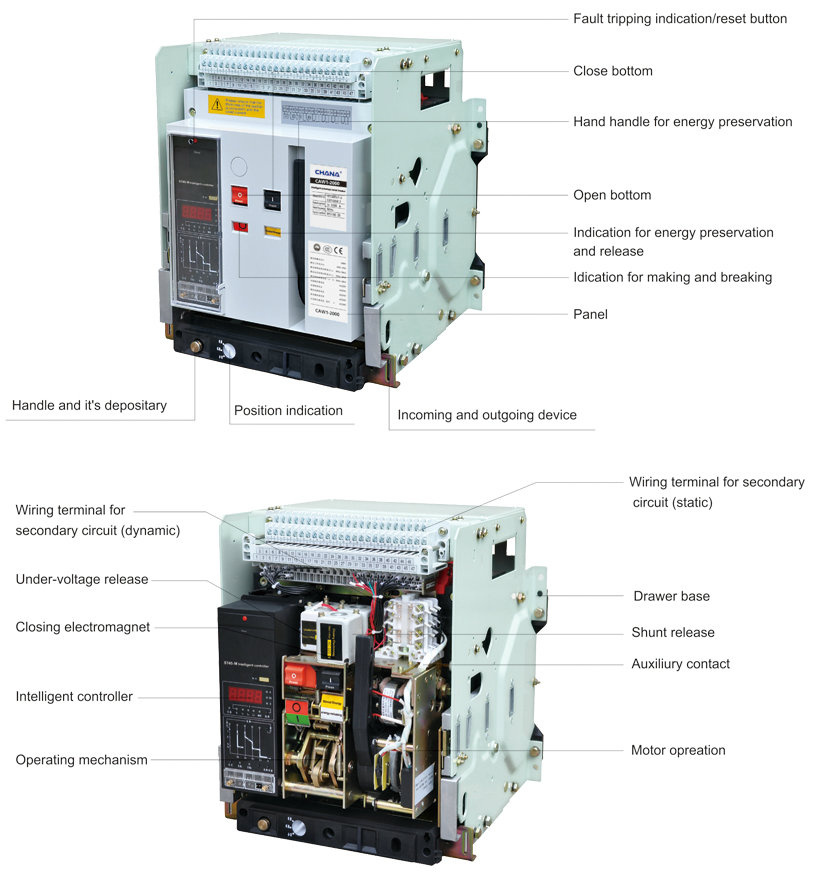

3. Structure

4. Certificate

5. Company Profile

Changan Group Co., Ltd, Established in 1987, comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 30years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,
Contactor, Relay, Switch, Solar Inverter etc..

1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Europe, South America, Mid-east and Africa Market.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
