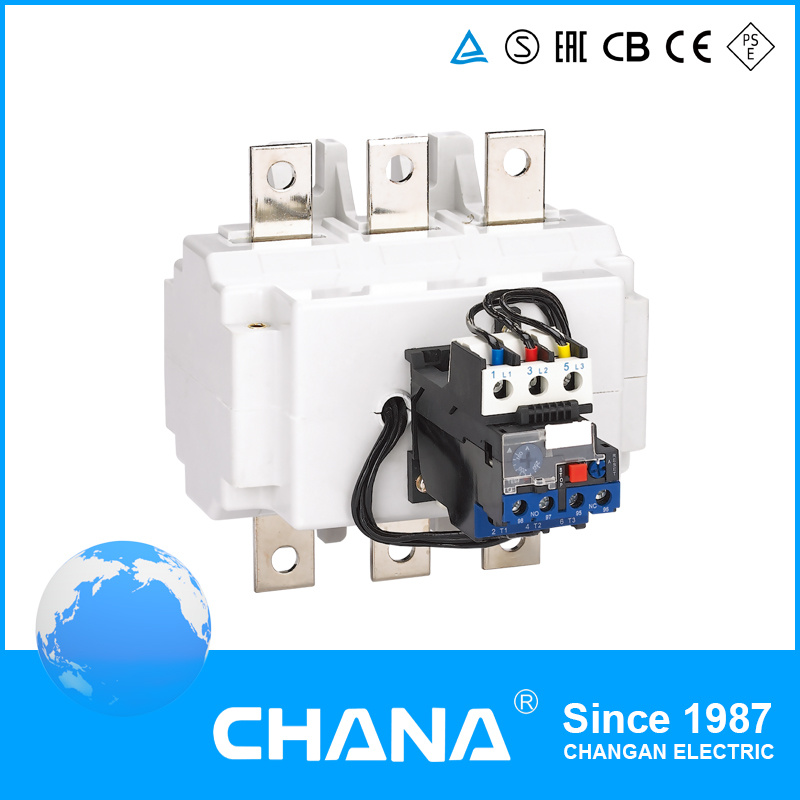

AC 690V Electrical Relay 160-630A Thermal Overload Relay

Prod Model:	CR2-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Suit For Contactor:	1no+1nc Tripping Contact
Export:	Global
Packing Type:	Box
Brand Name:	Chana

Product Description

CR2 Thermal Overload Relay

1. Specification

1) Electric ratings: AC 50/60Hz,690V,0.1A~630A
2) Tripping class: 10A
3) Mounting version:
      a. Plug-in: Available for CR2-03,13,23,33,43;
      b. Independent: Available for CR2-53,63;
4) Standard: IEC/EN 60947-4-1


Item	Series No.	I/In	Operating time	Test condition
Overload protection	1	1.05	>2h	Start from cold status
	2	1.2	≤2h	Start from cold status, right after item No.1
	3	1.5	≤2min	Start from cold status, right after item No.1
	4	7.2	2s	Start from cold status
Phase failure protection	5	1.0  0.9	>2h	Start from cold status
	6	1.15  0	≤2h	Start from heat status, right after item No.5

2. Features

   2.1 3-phase bimetal
   2.2 Continuously readjustable current settings
   2.3 Temperature compensation
   2.4 Tripping indicator
   2.5 Test button
   2.6 Stop button
   2.7 Manual and automatic reset button
   2.8 Electrically separated 1N/O plus 1 N/C contact

3. Assembly with contactor


Model of overload relay	Code	Rated current (A)	Recommended fuse type (RT16 is recommended)		Contactor Matched
			aM	gG
CR2-63	6372	160~250	250	400	CC1-185  CC1-400 CC1-225  CC1-500 CC1-265  CC1-630 CC1-330
	6373	200~315	315	500
	6374	250~400	400	630
	6375	315~500	500	800
	6376	400~630	630	800

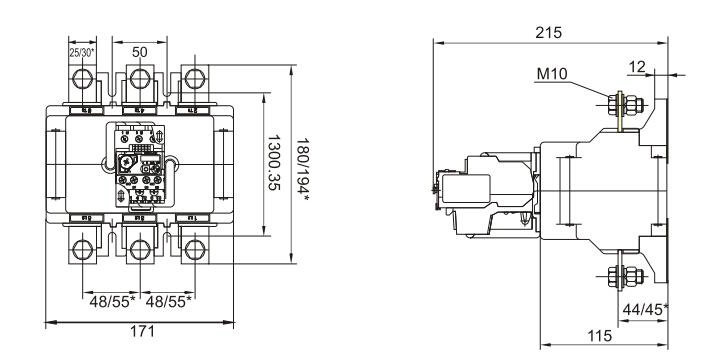

4. Mounting dimensions(mm)



5. Certificate



6. Our Services

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B.After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.

C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.

Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!
