AC Coil 95A 110V DC Contactor 3poles 380V Motor Control Contactor

Name: AC Coil 95A 110V DC Contactor 3poles 380V Motor Control Contactor
Brand: all-electronics-online.com
SKU: 792589625
Availability: InStock
Rating: 4.4 (136 reviews)

Price:	US $ 13.05-15.82/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CC1-95
Export Market:	Global

Product Description

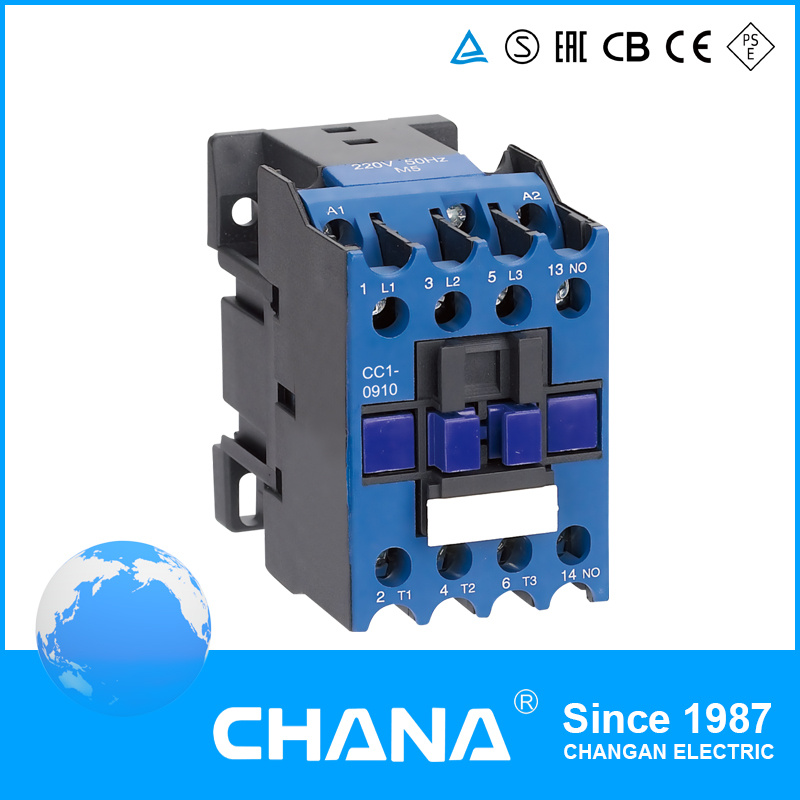

95A CC1 Contactor

1. Description

Remote making&breaking circuits;Protect Circuit from over-load when assembing with thermal over-load relay;frequent start-up and control of Ac contactor;
Electric Ratings:AC50/60Hz,690V,up to 95A;
Utilization catagory:AC-3,AC-4
Altitude:<2000m,
Ambient temperature:-5ºC~+40ºC;
Mounting Cat:III
Mounting conditions:inckination between the mounting plane and the vertical plane should not exceed up&down 5ºC.
Standard:IEC/EN 60947-4-1

2. Technical Date

Control Coil Valtage (Ac Coil Operation)

Volts(VAC)

110

127

220

230

240

380

415

440

480

500

600

Code

50Hz

60Hz

50/60Hz

Control Coil Valtage (Dc Coil Operation)

Volts(VAC)

110

220

Code

Model No.		CC1-40	CC1-50	CC1-65	CC1-80	CC1-95
Rated Conventional Heating Current	Ith(A)	60	80	80	100	125
Rated Voltage Ui(V)	Ui(V)	690	690	690	690	690
Rated Operation Current Ue=380/415V	AC-3 Le(A)	40	50	65	80	95
Rated Operation Current Ue=380/415V	AC-4 Le(A)	18.5	24	28	37	44
	220/240 kW	11	15	18.5	22	25
Power Controlled 3Ph Cage Motor AC3	380/415 kW	18.5	22	30	37	45
Power Controlled 3Ph Cage Motor AC3	660/690 kW	30	33	37	45	45
Eletrical life(x10^3 operations)	AC-3	800	600	600	600	600
Eletrical life(x10^3 operations)	AC-4	150	150	150	100	100
Mechainical life(x10^3 operations)		8	8	8	6	6
Matched Fuse	Size	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00
Matched Fuse	A	63	80	80	100	125
Main Circuit		3P or 4P

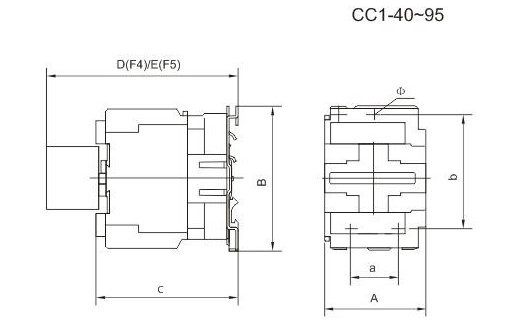

3. Dimension(mm)

Model	A max	B max	C max	D max	Emax	a	b	Φ	L	P	S
CC1-40~65	77	129	116	154.5	174.5	40	100/110	6.5	78	20	8.6
CC1-80~95	87	129	127	165.5	185.5	40	100/110	6.5	83	23.5	12

4. Feature Product

5. FAQ(Packaging & shipping)

Q 1.What's the payment term?
A.We accept tt,30% deposit and 70% balance agaisnt the copy of b/l.

Q 2.How's the delivery time ?
A.Usually it will take about 25 days for production

Q 3.Tell me the standard of package?
A.Normally are cartons, but also we can pack it according to your requirement.

Q 4.Could you offer form a or c/o ?
A.It's totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q 5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do oem

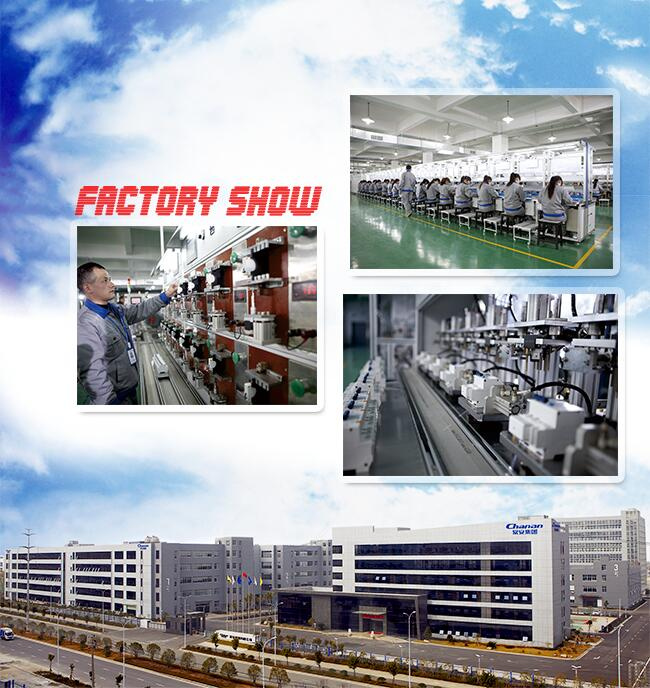

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
