AC Contactor for Motor Control

Name: AC Contactor for Motor Control
Brand: all-electronics-online.com
SKU: 755928085
Availability: InStock
Rating: 4.6 (23 reviews)

Price:	US $ 2-13/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	150/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSC1-D series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Contacts:	3p+No, 3p+Nc, 3p+Nc+No
Frequency:	50Hz, 60Hz, 50/60Hz
Electrical Life:	60~100×10&Sup4;
Mechanical Life:	800~1000×10&Sup4;
Rated Heat Current (a):	20~80
Usage:	AC Motor

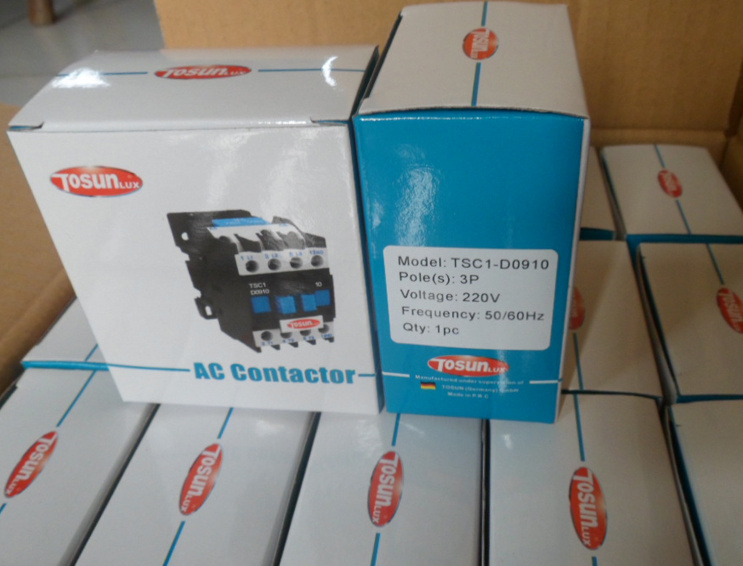

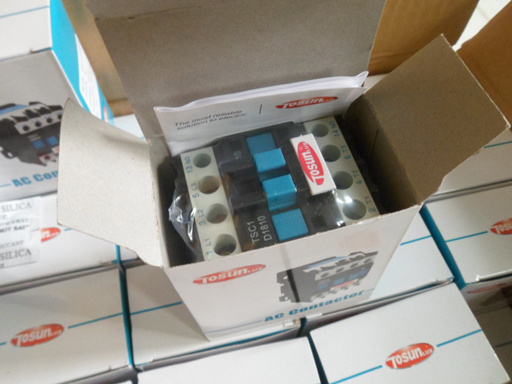

Packing:	1 PC Per Box

Product Description

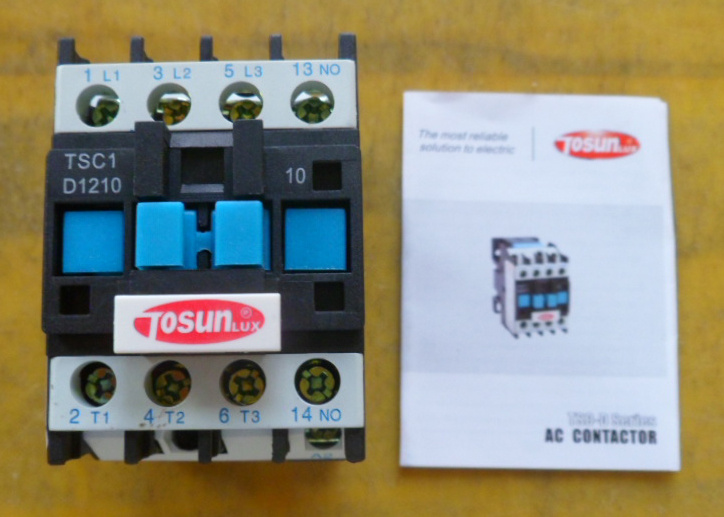

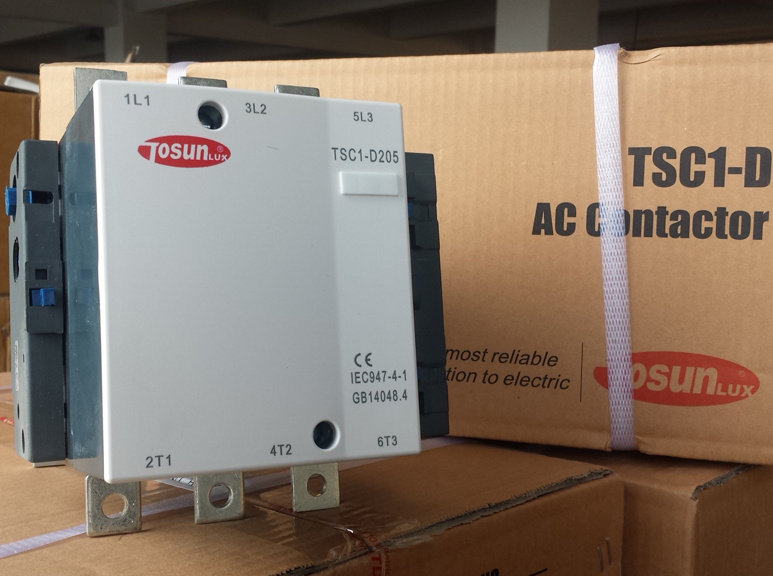

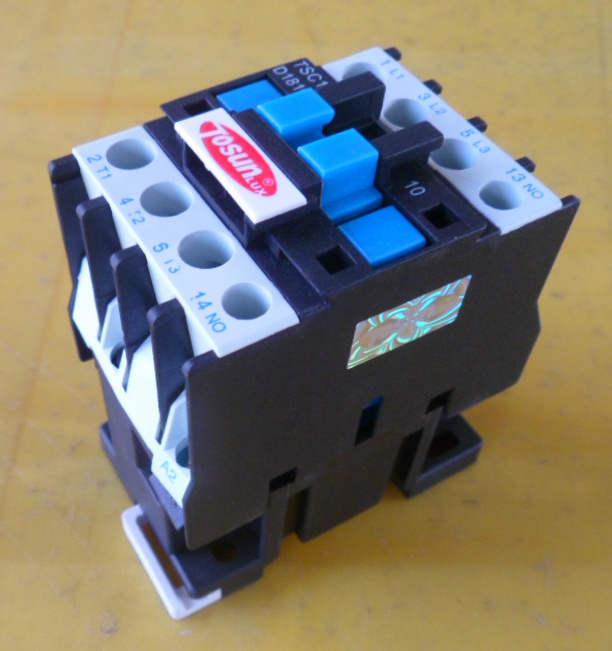

Description
TSC1-D series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor.
Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into electromagnetic starter. The products comply with IEC60947-4.

Specification

Model		D09	CFC2 -12	D18	D25	D32	D40	D50	D65	D80	D95	D115	D150	D170	D205	D245	D300	D410	D475	D620
Rated working current(A)	AC3	9	12	18	25	32	40	50	65	80	95	115	150	170	205	245	300	410	475	620
Rated working current(A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44	52	60	75	85	105	117	138	147	180
AC3 capacit of phase 3quirrel-cage motor AC3(kw)	220V/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25	30	40	55	63	75	100	110	147	200
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45	55	75	90	110	132	160	220	265	335
	415V	4	5.5	9	11	15	22	25	37	45	55	59	80	100	110	132	180	220	280	375
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55	75	90	110	129	160	200	250	355	400
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55	80	100	110	129	160	220	280	355	450
Rated thermal current(A)		20	20	32	40	50	60	80	80	125	125	200	250	250	275	315	400	500	700	1000
Eletrical life	AC4X104	20	20	20	20	20	80	60	60	60	60	200	60	60	50	50	50	30	30	20
Eletrical life	AC3X104	100	100	100	100	80	15	15	15	10	10	15	15	15	15	15	15	8	8	5
Mechanical life X 104		1000	1000	1000	1000	800	800	800	800	600	600	300	300	300	300	300	300	100	100	100
Number of the contacts		3P+NO					3P+NC+NO					-
Number of the contacts		3P+NC					3P+NC+NO					-
