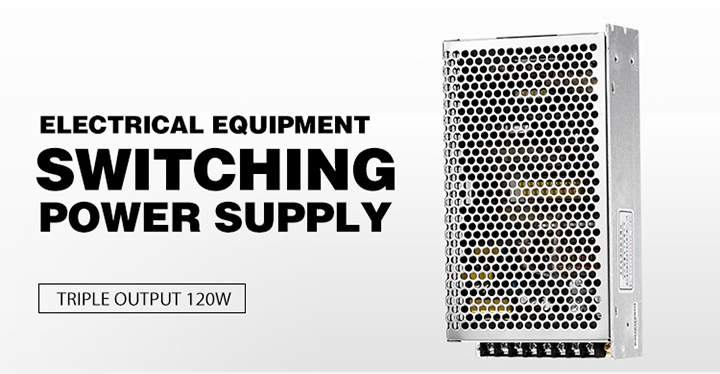

AC/DC 110V/220V T-120 120W Triple Output Power Supply, 5V 12V 24V 48V, Switching Power Supply

Name: AC/DC 110V/220V T-120 120W Triple Output Power Supply, 5V 12V 24V 48V, Switching Power Supply
Brand: all-electronics-online.com
SKU: 839691735
Availability: InStock
Rating: 4.5 (130 reviews)

Price:	US $ 12.5-14/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	T-120
Output Type:	Single
Warranty:	1 Year
Output Power:	101 - 200W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

120W Switching Power Supply

Features:

1. AC input 90~132VAC / 180~264VAC

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 12 months warranty

Specifications:

ac/dc 110v/220v T-120 120w triple output power supply

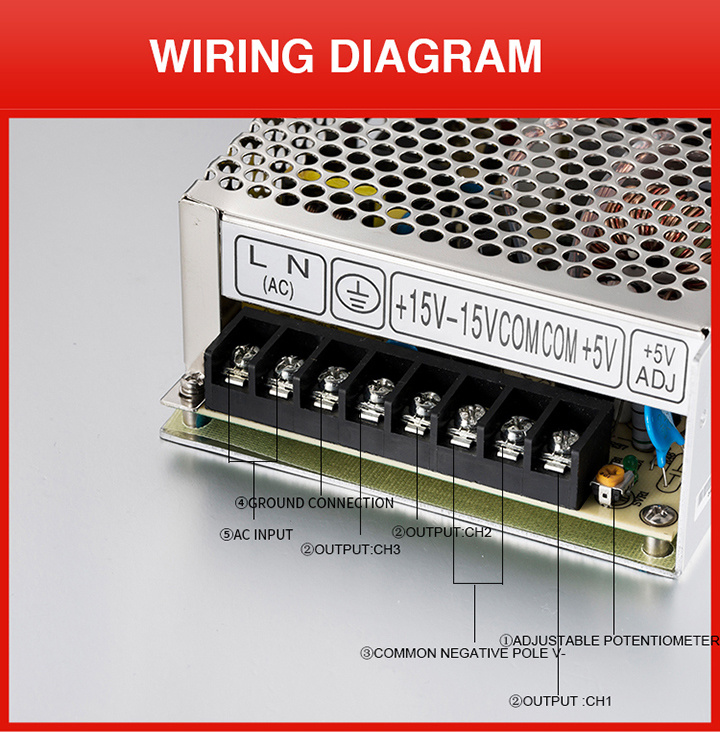

Model	T-120A			T-120B			T-120C
Model	CH1	CH2	CH3	CH1	CH2	CH3	CH1	CH2	CH3
DC output voltage	5V	12V	-5V	5V	12V	-12V	5V	15V	-15V
Rated output current	2-11A	0.5-5A	0.3-1A	2-11A	0.5-4.5A	0.2-1A	2-10A	0.5-3.5A	0.1-1A
Wave and noise(Note:3)	80mVp-p	150mVp-p	150mVp-p	80mVp-p	150mVp-p	150mVp-p	80mVp-p	150mVp-p	150mVp-p
Inlet stability(Note:4)	±0.5%	±1%	±1%	±0.5%	±1%	±1%	±0.5%	±1%	±1%
Load stability(Note:5)	±1%	±5%	±5%	±1%	±5%	±5%	±1%	±6%	±6%
Efficiency	77%			77%			76%
Adjustable range for DC voltage	±10%	±5%	±5%	±10%	±5%	±5%	±10%	±5%	±5%
Input current	90-132VAC/180-264VAC BY SWITCH 254-370VAC 47-63Hz
AC inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<1mA/240VAC
Overload protection	105%~150% Type: pulsing hiccup shutdown Reset: auto recovery
Temperature coefficient	±0.03%/°c(0~50°c)ON+5V
Setup, rise , hold up time	200ms, 50ms, 16ms/230VAC at full load
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC 1minute
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
Safety standards	CSA international mark approved (CSA950, UL 1950, IEC950, EN60950)
EMC standards	CISPR22(EN55022), IEC801-2,-3,-4,IEC555-2 Verification
