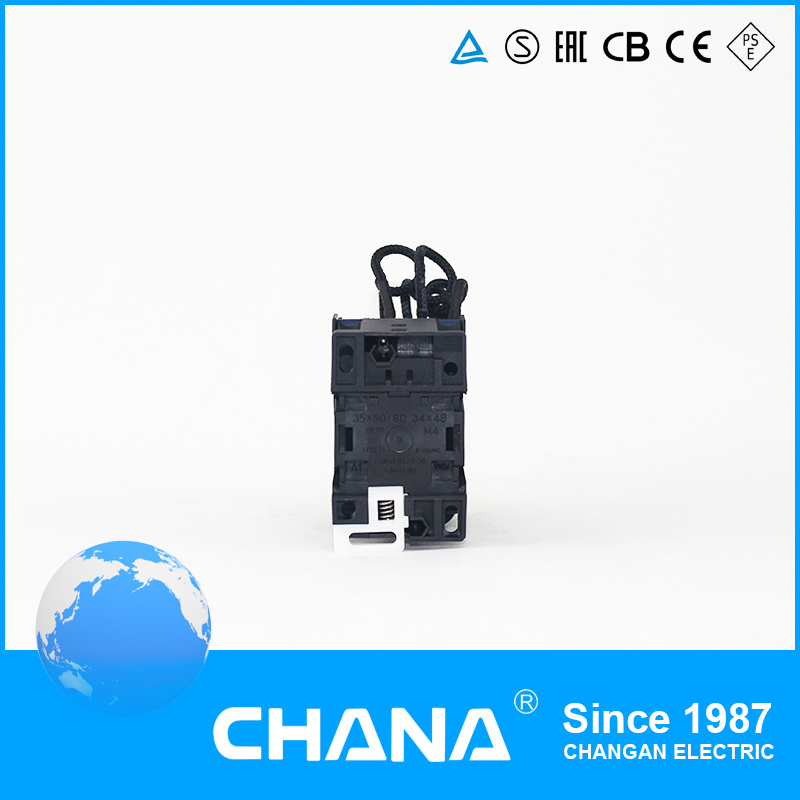

AC DC 25~95A Capacitor Switching Contactor

Prod Model:	CJ19-25
Standard:	IEC/En 60947-4-1
Ambient Temperature:	-5~+40
Auxiliary Contacts:	2n/O, 1n/O+1n/C,2n/C. 2n/O+1n/C,1n/O+2n/C
Rated Frequency:	AC50/60Hz
Cj19-25~43 Mounting Type:	Be Fixed with 35mm DIN Rail
Cj19-63~95 Mounting Type:	Fixed by Screw and Be Fixed with 35/75mm DIN Rail

Product Description

1. General



Electric ratings	AC50/60Hz, up to 400V
Standard	IEC/EN 60947-4-1
Ambient temperature	-5ºC~+40ºC,the average during 24 hours should not exceed +35ºC
Altitude	≤2000m
Atmosphere conditions	At mounting site,relative humidity not exceed 50% at the max temperature of +40ºC,higher relative humidity is allowable under lower temperature.For example,RH could be 90% at +20ºC,special measures should be taken to occurrence of dews.
Pollution degree	3
Installation categry	III
Installation conditions	the inclination between installation plane and vertical plane is within ±5°
Impact and shake	the products should locate in the places where there are no obvious impact and shake.

2. Technical Data


Standard
Model No.		CJ19-25	CJ19-32	CJ19-43	CJ19-63	CJ19-80	CJ19-95
Rated Conventional Heating Current	Ith (A)	25	32	43	63	80	95
Rated Work Current	415V/Ie (A)	18	25	32	60	80	95
Capacitor Controlled	220V/240V (Kvar)	6	9	10	15	18	22
	400V/440V (Kvar)	12	18	20	30	36	40
Rated Insulation Voltage	Ui(V)	690	690	690	690	690	690
Rated Operation Voltage Electrial life(×10³)	Ue(V)	400	400	400	400	400	400
	Times	120	120	120	100	100	100
Mechanical life (×10³)	Times	3000	3000	3000	3000	3000	3000
Restrained Surge Capacity	× Ie	15
Auxiliary Contact	Ith=10A	AC-15 360VA;DC-13 33W
	Control Capacity
Coil Parameters
Coil Power (VA)	Start-up	76	110	110	230	230	230
	Holding	10	11	11	32	32	32
Rated Control Power	Us (V)	24,36,48,110,220,380
Pull time	Ms	12~22	15~24	15~24	20~26	20~35	20~35
Release time	Ms	4~12	5~19	5~19	8~12	6~20	6~20
Operation Range	pick-up	(85%-110%)Us
	Drop-out	(20%-75%)Us

3.Wiring and installation

1) The connection terminals are protected through insulation cover,which is reliable and secure for          installation and operation.
2) For CJ19-25~43,screws are available for installation,as well as the DIN rail;for CJ19-63~95,35mm or        75mm standard rail are available for installatiion.



4. Shipping:

 1) Normally by SEA From NINGBO TO ...
 2) Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the           amount is Small.
 3) We Provide Drop shipping Service.
 4) In order to ensure you receive your order tax free upon import, we can declare lower value according     to your demand.
 5) Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination     country.



5. Payment:

1) We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2) If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3) L/C also accept



6. Warranty:

1) We provide 18 months warranty
2) If the product is defective, please notify us within 10 days of delivery.
3) All products must be returned on their original condition, in order to qualify for a refund or exchange of good
