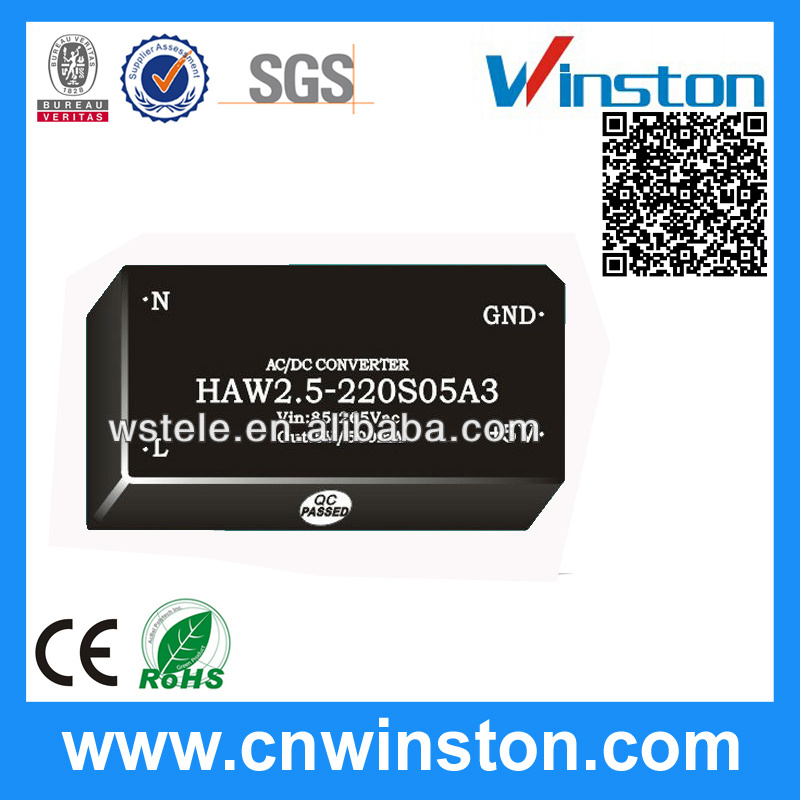

AC DC Converter Power Module with CE

AC DC Converter Power Module with CE
Price: US $ 5-10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: HDW
Markets: North America,South America,Eastern Europe,Africa,Oceania,Western Europe
Size: 37*18.5*16.5mm
Output Voltage: 5VDC
Type: DC/AC Inverters
Output Frequency: 60-100kHz
Output Current: 500mA
Output Type: Single
Warranty: 2 Years
Voltage Regulating Mode: Frequency Modulation Type
Certification: CE
Output Power: 2.5W
Input Voltage: 85~265VAC
Brand: Winston

Product Description


Typical characteristics

Size:37*18.5*16.5mm
Wide range input
Inversion frequency typical 80%
Switching frequency 60-100KHZ
Overcurrent,overheating and short circuit protection,self-restore
Input and output high isolation
Straight insert installation on PCB board
Small volume

Technical parameters table

Term:All the tests of paremeters are measured on the condition of normal input voltage,pure resistance rated load and room temperature environment of 25°c
Input characteristics


Input voltage
normal 220VACN165~265VAC
N200~380VAC
W85~265VAC
W120~380VAC
Frequency range

47~440HZ
Remote ON/OFFNO remote ON/OFF



Output characteristics


Output voltage accuracy

Vo1,Vo2±1.0%,±2.0%
Line regulationNormal load,full voltage rangeVo1,Vo2±0.2%,±0.5%
Load regulation20%~100% rated loadVo1,Vo2±0.5%,±3%
Ripple and noise
Vo≤5.0V, ≤80mVp-p

20MHz Bm full loadVo≥48V, ≤180mVp-pOther120mVp-p
Start delay timeTypical value
1s


General characteristics


Inversion efficiency
Normal voltage input,full loadVo≤5.0V,typical 80%Vo>5.0V,typical 82%
Switching frequency
Typical 60KHzMax 100KHz
Operating temperature
Free air convertion-10°c~+65°c
Storage temperature

-25°c~+105°c
Max case temperature

+80°c
Relative humidity

10%~90%
Case material
UL94V-0Black plastic case
Isolation voltage
Input and output2.5KV≤2mA/min
Min trouble free time interval

2*105Hrs


Typical product table:


Input voltage range
Normal output voltage/currentType
Vo1Vo2Vo3
VmAVmAVmA

85~265VAC
120~380VDC

3.3
500



HAW2.5-220S3V3A3
5500




HAW2.5-220S05A3

9
270



HAW2.5-220S09A3
12210



HAW2.5-220S12A3
15165



HAW2.5-220S15A3
18140



HAW2.5-220S18A3
24100



HAW2.5-220S24A3
4850



HAW2.5-220S48A3
+3.3250-3.3250

HAW2.5-220D3V3A3
+5250-5250

HAW2.5-220D05A3
+9135-9135

HAW2.5-220D09A3
+12105-12105

HAW2.5-220D12A3
+1580-1580

HAW2.5-220D15A3
+1870-1870

HAW2.5-220D18A3
+2450-2450

HAW2.5-220D24A3
+4825-4825

HAW2.5-220D48A3
+5260+12100

HAW2.5-220D05-12A3

Note:1)when the environment temperature is between +50~70°c,the product should be used according to the derating use curve.
2)The above are only parts of the product list due to the lack of space,andif you need products that are not within the table,please contact us.
3.The scales of the figures as below:
