| Prod Model: |
S-1000-24,S-1000-27,S-1000-48 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: |
Ningbo, Shanghai, Other |
| Delivery Time: |
20-25 Days |
| Output Type: |
Single |
| Output Power: |
>500W |
| Input Voltage: |
Full Range |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
Product Description

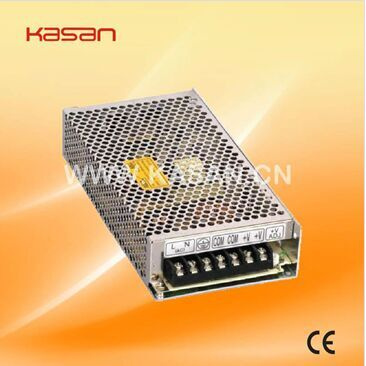

AC/DC, DC/DC Switching Power Supply (SMPS) 1000W Single Output S-1000
Features:
1) Low price and high reliability
2) 105ºC output capacitor
3) AC input power suitable for the whole world
4) High efficiently and low operation temperature
5) Soft-start current can reduce the AC input impact efficiently
6) with short-circuit and overload protection
7) Compact size, light weight
8) 100% full-load burning test
9) Installed with EMI filter, minimum wave
| Model / Specification | S-1000-12 | S-1000-13.5 | S-1000-15 | S-1000-24 | S-1000-27 | S-1000-48 |
| DC output voltage | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Output voltage error(Note: 2) | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% |
| Rated output current | 80A | 74A | 66A | 40A | 37A | 20A |
| Output current range | 0-80A | 0-74A | 0-66A | 0-40A | 0-37A | 0-20A |
| Wave and noise(Note: 3) | 240mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | 300mVp-p | 300mVp-p |
| Inlet stability(Note: 4) | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Load stability(Note: 5) | ± 1% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| DC output power | 1000W | 1000W | 1000W | 1000W | 1000W | 1000W |
| Efficiency | 84% | 84% | 83% | 85.5% | 86% | 87% |
| Adjustable range for DC voltage | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V | 24-30V | 41-56V |
| AC input voltage range | 190~240VAC 47~63Hz |
| Input current | 7A/230V |
| AC impulse current | 50A/230V |
| Leakage current | < 3.5mA/240VAC |
| Overload protection | 105%~150% Type: current limiting; Reset; Auto recovery |
| Over-voltage protection | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V | 24-30V | 41-56V |
| High-temperature protection | 70º C Cut off output (5~15V) output shutdown |
| Temperature coefficient | ± 0.03%º C (0~50º C) |
| Setup rise hold up time | 1.5s, 50ms, 20ms |
| Vibration | 10~500Hz, 2G 10min. /1cycle, Period for 60min, Each axes |
| Withstand voltage | Input and output interval: 1.5KVAC, Input and enclosure: 1.5KVAC, Output and enclosure: 0.5KVAC |
| Isolation resistance | Input and output interval, Input and enclosure, Output and enclosure: 500VAC/100MΩ |
| Working temperature and humidity | -10º C~+60º C, 20%~90%RH |
| Store temperature and humidity | -20º C~+85º C, 10%~95%RH |
| Overall dimension | 291*132*68mm |
| Weight | 2.35Kgs |
| Safety standards | Meet UL 1012 requirement (not apply for the mark) |
| EMC standards | CISPR22(EN55022)IEC1000-4, 2, 3, 4, 5, 6, 8, 11 IEC100-3-2 |
Note:
1. The testing condition for the parameter above is: 230VAC input, rated load, 25 degrees Celsius 70%Rh, Humidity
2. Error, include the setting error, line stability and load stability. (Note: 5)
3. Wave test: adopting“ A12” double wire for 20MHz, and 0.1uF& uF capacitor short-circuit for interrupting
4. Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5. Load stability test: The load is from 0% to 100%, others 60%.
6. C2, 3, 11must be knocked down. |
