| Prod Model: |
STP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Current: |
0-100A |
| Output Voltage: |
0-12V |
| Size: |
430*460*133mm |
| Item: |
STP100A/12V.R |
| Module: |
IGBT Module |
| Control Mode: |
Panel Control |
| Type: |
High Frequency Electroplating Power Supply |
| Feature: |
Small Size Light Weight |
| Mode: |
AC DC |
| Frequency: |
High Freuquency |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
>500W |
| Input Voltage: |
220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Brand: |
Samyang |
Product Description
Why choose us ?
1.Over 23 years electroplating rectifier and telecommunication power supply manufacture in China.
2.5 plating rectifier sole agents in United Kingdom,Poland,South Africa,Thailand,Colombia promised recommend.
3.2008 Olympic Games and 2010 Asia Games appointed power supply supplier.
4.50 peoples development team and strong R&D department.
5.Top 10 plating enterprise in China.
6.ISO9001,SGS,CE certification.
7.Direct factory price.
8.Technology support
9.Strict QC control system.

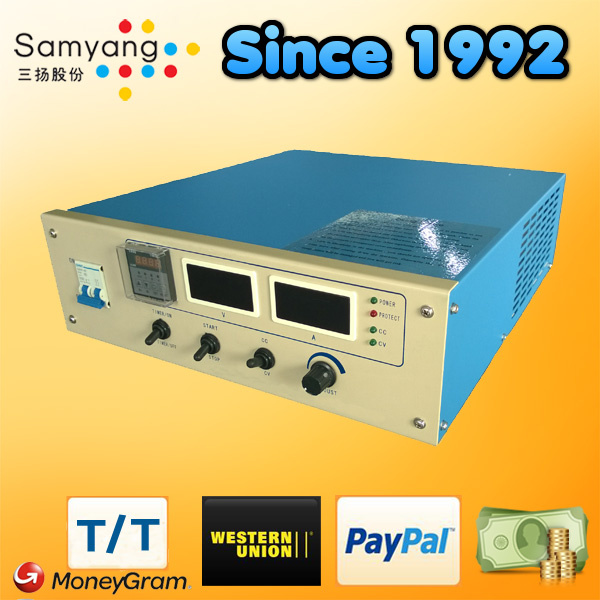

AC DC high frequency electroplating power supply 100A 12V panel control
Specification:
Input voltage | 220VAC±10% (single phase) 50Hz |
| Output Voltage | 0-12V continuously adjustable |
| Output Current | 0- 100A continuously adjustable |
| Output current stability | ≤2% |
| Output voltage stability | ≤1% |
| Efficiency | ≥85% |
| Power factor | ≥0.9 |
| Start-up postponing time | ≤10s |
| Inverting frequency | 18kHz ± 2kHz |
| 8kHz ± 2kHz |
| Cooling mode | air cooling |
| Panel control | Voltage and current display, start/stop,indicator light of protect
and power , adjustment of output value, CC/CV,timer. |
| Display | Digital meters or touch screen , Ampere hour meter ,
timer alarm ,etc |
| Signal interface | PLC 0~10V , RS485 |
| Modulation mode | PWM control |
| Complete protection functions | over current,over voltage,over heat ,short circuit,phase lack ,
input undercurrent protection,over temperature,diode defect. |
Product features: | 1. Small size, light weight, high efficiency, high control precision. |
2. High -frequency pulse current output, Suitable for plating small sized
no-ferrous metal and alloy work pieces, it has high enetration ability,
strong adhesive force, and can effectively enhance the brightness of
the plated surface. |
3. Output voltage and current can be adjusted, limiting voltage and current
can be adjusted,greatly enhance application flexibility of the product for users. |
4. With complete protection functions, over current, over heat
Protection functions. High power factor, less pollution to the electric
network, no interference. |
| Scope of application | It is suitable for acidic copper, alkaline copper, multi-layer
nickel, Chrome ,zinc , gold ,silver , indium,rhodium,
anodizing,electrolysis degreasing ,and single or double-clad plated printing process. |
High frequency electroplating power supply product details:
1.Digital display the output current and voltage.
2.Indicator lights clearly display.
3.Sealing and durable select buttons.
4.High control precision and digital display timer function.
5.220VAC,380VAC,400VAC,415VAC,440VAC,450VAC,480VAC dual input voltage.
6.The whole machine used sealing design.
7.High quality and heavy output copperplate.
8.Standard 10 meters remote control cables.
High frequency electroplating power supply six advantages:
1.IGBT module import from Japan.
2.Graceful appearance design.
3.Air cooling professional design.
4.Transformer,radiator,inductor,circuit board are made by ourself.
5.Waterproof and anti-corrosion.
6.Stable waveform output and easy to adjust.
Every plating rectifier can add the functions : (timer is our general function so that is for free)
1.PLC (0-10V)
2.RS485
3.Ramp time
4.Adjustable potentiometer
5.Timer
6.Ampere hour meter
After sale service:
1.Your inquiry related to our products or prices will be replied in 24hours.
2.1 years warranty,by replace/repair/free spare parts for bulk order.
Within the first year, if you need any spare parts for replacement, we can provide to you without paid. And we will offer lifelong technical support and service.
3. Considering the expensive shipping cost for you,broken rectifier is no need to send back to China, just let us know the problem through a video or a picture, then,we will send the replacement to you immediately.
4.Any questions or confustion, please feel free to let us know.
About Payment
Payment by TT/,Paypal, Western Union,Money Gram will be acceptable.
Please note: Our trade term is EXW,so the price is not includeing the shipping cost).
About shipping
1. Shipping way: Fedex,UPS,DHL, EMS, TNT, China POST, customer can choose the shipping way by themselves.
2. Before shipping we will pack the goods well in case for damage and for the shipping time depends on which shipping way you choose and the courier company and local customs, duties, thank you for your understanding in advance.
About MOQ
MOQ about the electroplating rectifier is 1 pcs .
