| Prod Model: |
SMA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Samyang |
| Item: |
SMA |
| Module: |
IGBT |
| Type: |
Plating Power Supply |
| Function: |
PLC or RS485 Function |
| Cooling Mode: |
Air Cooling |
| Power Mode: |
Switching Mode |
| Control Mode: |
Panel Control |
| Feature: |
High Frequency |
| Plating Process: |
for Anodizing,Electrolysis,Electroforming |
| Output Type: |
Single |
| Output Power: |
>500W |
| Input Voltage: |
220V |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Warranty: |
1 Year |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Brand: |
Samyang |
Product Description
Why choose us ?
1.We have 5 plating rectifier sole agents in United Kingdom,Poland,South Africa,Thailand,Colombia.
2.2008 Olympic Games and 2010 Asia Games appointed power supply supplier.
3. Over 22 years electroplating rectifier telecommunication power supply manufacture in China.
4.We are one of the limited liability company in our city.
5.We have 17 patents.

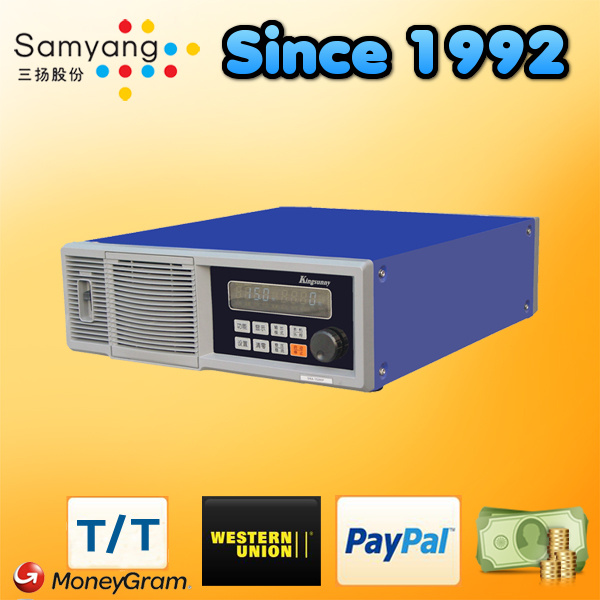

High frequency IGBT plating power supply for anodizing,electrolysis,electroforming
Index parameters:
Input voltage | 220VAC± 10% (single phase) 50Hz |
| 380VAC 350VAC-450VAC (three phase) 50Hz |
| Output Voltage | 0-6V,12V,15V,24V continuously adjustable |
| Output Current | 0-50A,100A,150A,200A,300A continuously adjustable |
| Output current stability | ≤2% |
| Output voltage stability | ≤1% |
| Ripple | ≤2% |
| Efficiency | ≥85% |
| Power factor | ≥0.9 |
| Start-up postponing time | ≤10s |
| Inverting frequency | 18kHz ± 2kHz
8kHz ± 2kHz |
| Cooling mode | air cooling |
| Display | Digital meters or touch screen , Ampere hour meter ,
timer alarm ,etc |
| Signal interface | PLC 0~10V , RS485 |
| Modulation mode | PWM control |
| Complete protection functions | over current,over voltage,over heat ,short circuit,phase lack ,
input undercurrent protection,over temperature,diode defect. |
Product features: | 1. Small size, light weight, high efficiency, high control precision. |
2. Smooth wave form low ripple output, Suitable for different types
of metal and alloy work pieces, it has high penetration ability,
strong adhesive force, and can effectively enhance the brightness
of the plated surface. |
3. Output voltage and current can be adjusted, limiting voltage
and current can be adjusted,greatly enhance application flexibility
of the product for users. |
4. With complete protection functions, over current, overheat
protection functions. High power factor, less pollution to the
electric network, no interference. |
| Scope of application | It is suitable for acidic copper, alkaline copper, multi-layer
nickel, Chrome ,zinc , gold ,silver , indium,rhodium, anodizing,
electrolysis degreasing ,and single or double-clad plated printing process. |
Plating power supply product details:
Product features:
1.Real-time monitoring of AC input status, output voltage,current value, ambient
tempreture,on time calculation and accumulation, three-stage time control functions.
2. Automatically judges over-voltage and generates alarm signals.All measured values can be dispalyed in the monitoring center and related report forms are automatically generated.
3. The On-Off status of the electroplating power supply ,the output voltage and current values and other parameters can be controlled remotely through the keyboard on the panel or the computer in the monintoring center.
4.The working signals of the devices peripheral to the electroplating power supply
such as the mixer and hangers etc and the temperature of the plating tank can
be set through the keyboard.
Scope of application:
Can be used in combination with PLC to fully realize computerized management.
It is suitable for acidic copper, alkaline copper, multi-layer nickel, Chrome ,zinc , gold ,silver ,indium,rhodium, electrolysis degreasing ,and single or double-clad plated printing process.
Lowest material cost and how to package ?
Making process:
1.Meeting review ------ 2.Picking ------- 3. Install parts ------- 4.Welding ------ 5. QC inspection ----- 6. Aging ------7. Process ------8. Testing ------- 9.Packing ------ 10.Delivery
1.Your inquiry related to our products or prices will be replied in 24hours.
2.1 years warranty,by replace/repair/free spare parts for bulk order.
Within the first year, if you need any spare parts for replacement, we can provide to you without paid. And we will offer lifelong technical support and service.
3. Considering the expensive shipping cost for you,broken rectifier is no need to send back to China, just let us know the problem through a video or a picture, then,we will send the replacement to you immediately.
4.Any questions or confustion, please feel free to let us know.
About Payment
Payment by TT/,Paypal, Western Union,Money Gram will be acceptable.
Please note: Our trade term is EXW,so the price is not includeing the shipping cost).
About shipping
1. Shipping way: Fedex,UPS,DHL, EMS, TNT, China POST, customer can choose the shipping way by themselves.
2. Before shipping we will pack the goods well in case for damage and for the shipping time depends on which shipping way you choose and the courier company and local customs, duties, thank you for your understanding in advance.
About MOQ
MOQ about the electroplating rectifier is 1 pcs .
SHUNDE SAMYANG Co., Ltd., original called Guangdong Kingsunny Technology Co., Ltd. is a subordinate enterprise of Shunde Communication Equipment Co., Ltd., which was established in 1992 and has manufactured power supplies over 20 years.
On the base of communication switching power supplies, our company successfully developed electroplating switching power supplies. We succeed to the persistent tenet of "Shunde power supply" and "Being determined and dauntless in innovation and striving for improvement ". Under the arrangement of leaders, our company introduced an advanced human resource administrating mode from abroad and improved our personnel system. In this way, our company has recruited a large number of highly qualified professionals and forms an effective operating system. Soft switching - an advanced technology of switching power supply in the 90s of the 20th century are used as the main circuit when developing high-frequency switching power supplies for galvanization.
Furthermore, microcomputer technology is applied to products to achieve remote supervision and to assist the electroplating industry in automated production management. In respect of marketing management, our company lays stress on establishing the sales network. Our market positioning is all electroplating factories oriented and our interest is every customer concerned. With regard to the management of logistics and production planning, our company has achieved scientific administration and we can timely deliver products to customers as scheduled by using our LAN and ERP management system.
Now our company boasts a building area of 13, 500 square meters. All production test facilities are introduced from the U. S. A and Japan and all activities concerned with product quality are carried out in controlled mode as per ISO9001 standards. Top quality, fine manufacturing techniques, perfect after-sales services, competitive price and scientific management are our guarantee for customers.
