AC / DC Single Output 600W 12V Power Supply 24V 48V Switching Power Supply

AC / DC Single Output 600W 12V Power Supply 24V 48V Switching Power Supply
Price: US $ 49-53/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: S-600
Output Type: Single
Warranty: 1 Year
Output Power: >500W
Input Voltage: 110-220V
Connection Mode: Series Switching Power Supply
Starting Mode: Separate-excited Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: CCC
Brand: Ann

Product Description

Product Description

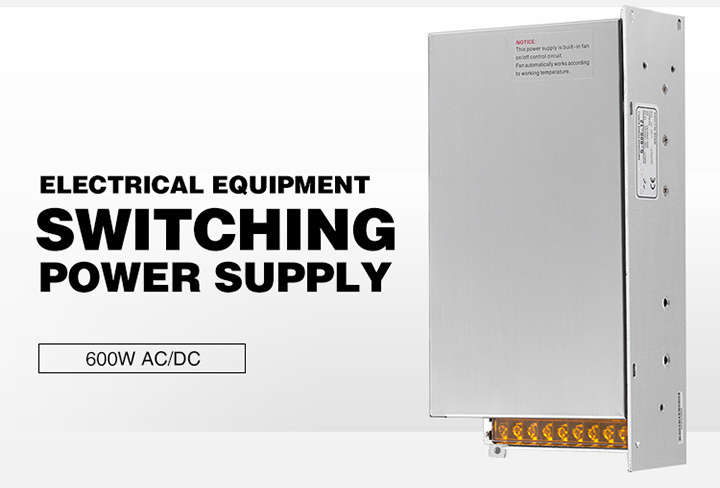

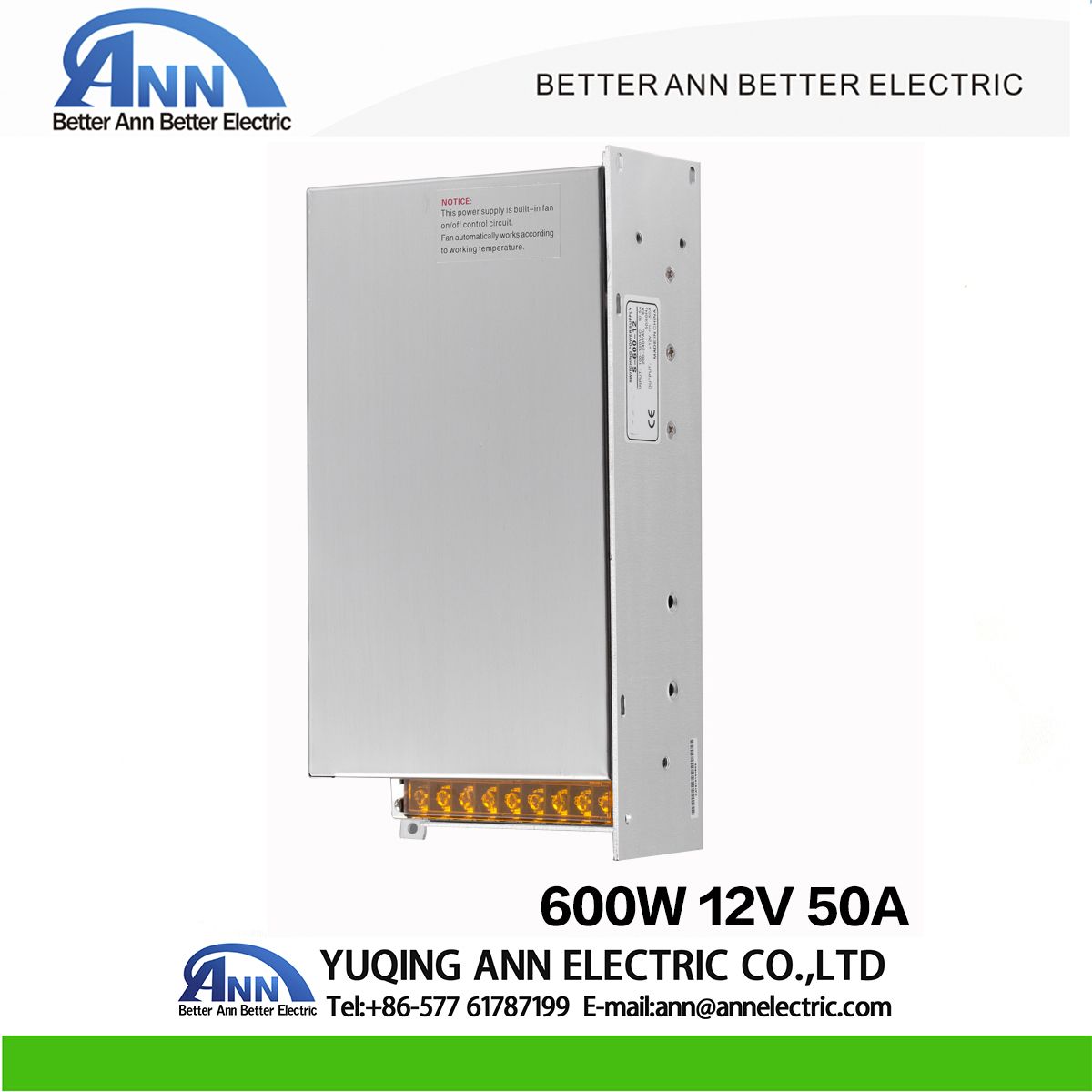

600W 12V DC Switching Power Supply

Features:

1. AC input 90~132VAC / 180~264VAC

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 12 months warranty





Specifications:


MODELS-600-12S-600-13.5S-600-15S-600-24S-600-27S-600-48
OUTPUT12V13.5V15V24V27V48V
50A44A40A25A22A12.5A
0 ~ 50A0 ~ 44A0 ~ 40A0 ~ 25A0 ~ 22A0 ~ 12.5A
600W600W600W600W594W600W
240mVp-p240mVp-p240mVp-p240mVp-p200mVp-p300mVp-p
10 ~ 13.2V12 ~ 15V13.5 ~ 18V20 ~ 26.4V26 ~ 32V41 ~ 56V
±1.0%±1.0%±1.0%±1.0%±1.0%±1.0%
±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%
±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%
200ms, 50ms, 20ms at full load
INPUT180 ~ 264VAC (110VAC input can be custom-made)
47 ~ 63Hz
84%84%84%86.00%87.00%88%
7A/115V 3.5A/230V
18A/115V 36A/230V
PROTECTION105 ~ 135% of rate load
Protection type : Fold back current limiting, recovers automatically after fault condition is removed
13.8 ~ 16.2V15.5 ~ 18.2V18 ~ 21V27.6 ~ 32.4V31 ~ 36.5V57.6 ~ 67.2V
Protection type : Hiccup mode, recovers automatically after fault condition is removed.
RTH1 or RTH250ºC FAN ON,45ºC FAN, 70ºC output shut down
ENVIRONMENT-10 ~ +60ºC, 20 ~ 90% RH non-condensing
20 ~ 90% RH non-condensing
-20 ~ +85ºC, 10 ~ 95% RH
±0.03%/ºC (0 ~ 50ºC)
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMCDesign refer to UL1950, TUV EN60950-1
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Compliance to EN55022 (CISPR22) Class B
Compliance to EN61000-3-2,-3
Compliance to EN61000-4-2,3,4,5,6,8,11;ENV50204,Light industry level,criteria A
OTHERS138.6K hrs min. MIL-HDBK-217F (25ºC)
240*125*65mm (L*W*H)
1.35Kgs/pcs, 12pcs/17.7Kgs/0.0326CMB
