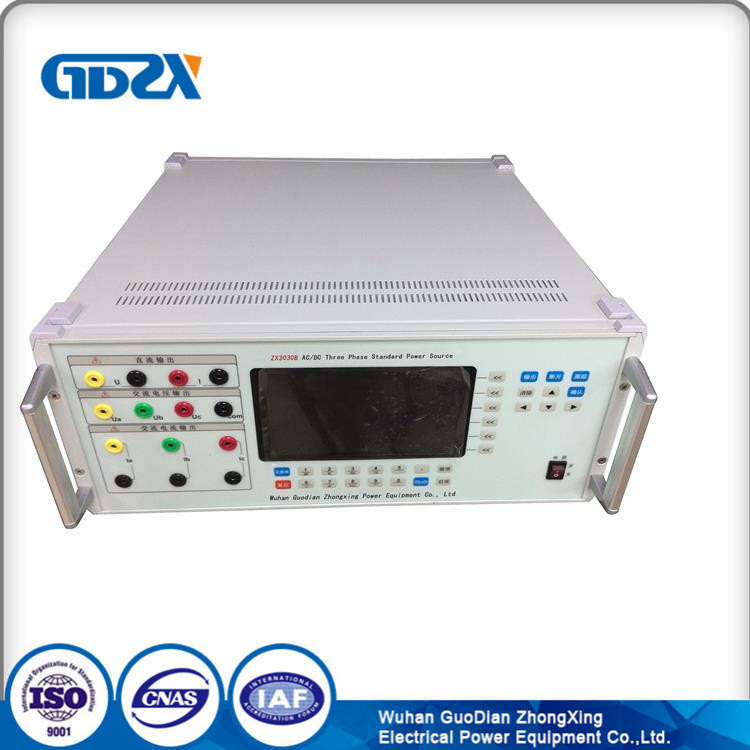

AC DC Three Phase Standard Power Source
| Price: |
US $ 9000-11000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
ZX3030B |
| AC Output Voltage Range: |
25V, 50V, 110V, 200V, 400V, 600V |
| AC Current Range: |
0.1A,0.5A,1A,5A,10A,20A |
| Voltage Current Regulation: |
range: 0~120%, fineness: 5×10-5 |
| Output Frequency: |
45 Hz ~ 65 Hz |
| Output Phase: |
0 ~ 359.99° |
| Output Harmonic: |
2~51th |
| AC Voltage Current Distortion: |
0.3% |
| DC Output Voltage Range: |
75mV,1V,3V,7.5V,15V,30V, 75V,150V,300V,600V,1000V |
| DC Output Current Range: |
30uA,300uA,3mA,30mA 300mA,0.5,1,2.5,5A ,10A ,20A |
| Output Type: |
Triple |
| Warranty: |
1 Year |
| Output Power: |
1 - 50W |
| Input Voltage: |
220V |
| Brand: |
GDZX |
Product Description
This device adopts advance ARM+FPGA, high precision D/A conversion and DDS technologies, can set up and regulate parameters of voltage, current, frequency, phase etc in a long period of time, via analog closed loop feedback and digital PID control Features:1. Can be used to test errors and variance caused by voltage, current, waveform or power fator change, for a variety of metering instrument such as energy meter, voltmeter, ammeter, wattmeter, frequency meter, power factor meter, phase meter2. Can generate distorted wave with 2~32 order harmonic, harmonic number, order, amplitude and phase position to base wave can be controlled by programs3. Operational amplifier work frequency 40HZ~1kHz, good linearity, dual output protection, High fidelity output signal and high shock-proof ability4. With RS232 and USB(optional) communication interface for PC connection5. With aluminum alloy carrying box, which look nice, and with little weight Technique Parameters: 1. AC outputVoltage scope: 0 - 600VRange: 25V, 50V, 110V, 200V, 400V, 600VCurrent scope: 0 ~ 24ARated current range: 0.1A,0.5A,1A,5A,10A,20AVoltage current regulation range: 0~120%Voltage current regulation fineness: 5×10-5Voltage current error ≤0.03%(Rd)±0.02%(full range),0.05 levelVoltage current output power: every rated range full scale 100% ≥ 20WOutput frequency: Range: 45 Hz ~ 65 HzResolution: 0.001 HzAccuracy: 0.01 HzOutput phase:Range: 0 ~ 359.99°fineness: 0.010Accuracy: 0.01°Output Harmonic: Orders: 2~51th orderAmplitude: 0~20%Each order phase position fineness: 0.010·N(N is harmonic order number)Output PowerOutput power scope: ranged current range and rated voltage range can be mixed arbitrarilyAccuracy: 0.1, 0.05 level within rated range ( reactive power accuracy will be one level lower) Output waveform distortation: AC voltage current ≤0.3%Energy Meter measurement: Integrated error: 0.1,0.05% FS (impulse output ≤90kHz, three phase rated vaule=60kHz) 2. DC outputDC voltage range: 75mV,1V,3V,7.5V,15V,30V, output capacitance: 100mA 75V,150V,300V,600V,1000V, output capacitance: 40mADC current range: 30uA,300uA,3mA,30mA,maximum output capacitance: 9VA 300mA,0.5,1,2.5,5A ,10A ,20A maximum output capacitance 10VADC voltage, current regulation range: 0~120% FS, fineness: 5×10-5Rated Voltage range accuracy: error ≤0.06%(Rd)±0.04%(full range), 0.1 level
error≤0.03%(Rd)±0.02%(full range), 0.05 levelRated current range accuracy: error ≤0.06%(Rd)±0.04%(full range), 0.1 level
error≤0.03%(Rd)±0.02%(full range), 0.05 levelDC 75mV output (load≥200Ω) accuracy error≤0.12%(Rd)±0.08%(full range), 0.2 level error≤0.06%(Rd)±0.04%(full range), 0.1 levelOthers: Working power supply: Single phase 220V±10%, 50Hz±5%Working environment: temperature 20ºC±10ºC relative humidity≤85%RHSize and Weight: 460×480×200mm, 18kg
Wuhan GuoDian ZhongXing Electrical Power Equipment Co., Ltd ( GDZX ) is located in DongHu High Technology Development Zone, Wuhan City, People's Republic of China. The company established in 2012 and the factory area 6000 square meters. Good quality and customer satisfaction are always the goal here.
Our main products are Hipot Test sets, Standard Power Source, Circuit breaker analyzer, Protection relay tester, Resistance Tester, voltage generator, Transformer testing series, Oil tester, Cable and Ground fault testing series, Power quality analyzer, Storage battery tester, Lightning arrester tester and other instruments. Most of the products are featured with Intelligent design, compact structure, simple operation, which make the on site work very convenient.
Not only we are the supplier of China Power Grid System but also we are extending our business to all over the world. In the last two years we made business relationship with customers from Indonesia, Kenya, Ecuador, Japan, Korea, and we are keeping growing. It is exciting to work with your partners from every different countries.
Your any requirement is our pursuit. Welcome to Visit Us
