AC Gear Motor for Agricultural

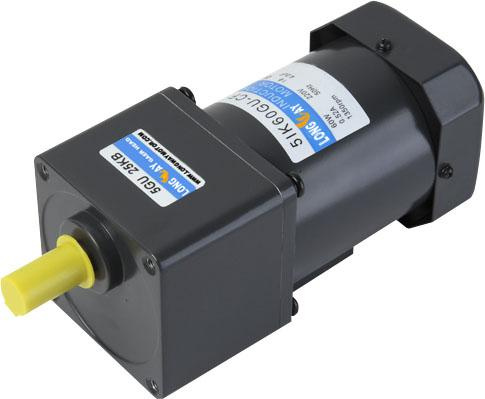

Name: AC Gear Motor for Agricultural
Brand: all-electronics-online.com
SKU: 774615745
Availability: InStock
Rating: 4.9 (72 reviews)

Price:	US $ 25piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	5IK
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time:	10-20days
Package:	10PCS/CTN
Weight:	4.8kgs
Number Of Stator:	Single-Phase
Function:	Control
Certification:	CE

Product Description

AC gear motor
Typical Applications:Industrial equipment, Agricultural
machinery, Entertainment equipment, Transportation

Motor specification:

Model of Motor		Output	Voltage	Frequency	Poles	Duty	Rated				Starting Torque		/Capactor/Ve
Model of Motor		Output	Voltage	Frequency	Poles		Speed	Current	Torque		Starting Torque		/Capactor/Ve
		W	V	HZ	P		rpm	A	N.m	kg.cm	N.m	kg.cm	μf/VAC
5IK60A-AF	5IK60GU-AF	60	1ph110	50	4	CONT	1350	0.98	0.44	4.40	0.38	3.75	12.0/500
5IK60A-CF	5IK60GU-CF	60	1ph220	50	4	CONT	1350	0.43	0.44	4.40	0.40	4.00	3.5/500
5IK60A-SF	5IK60GU-SF	60	3ph220	50	4	CONT	1350	0.49	0.46	4.55	1.70	17.0	/
5IK60A-S3F	5IK60GU-S3F	60	3ph380	50	4	CONT	1350	0.28	0.46	4.55	1.70	17.0	/

Frequency	Reduction Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60
50HZ	Output Shaft Speed	rpm	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25
	Allowable Torque	N.m	1.03	1.24	1.72	2.6	2.58	3.10	3.10	3.88	4.65	5.38	5.60	7.01	8.41	10.1	11.2	14.0	16.8
	Allowable Torque	kg.cm	10.5	12.7	17.6	21.0	26.3	31.6	31.6	39.6	47.4	54.9	57.1	71.6	85.8	103	114	143	171
60HZ	Output Shaft Speed	rpm	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30
	Allowable Torque	N.m	0.9	1.08	1.50	1.80	2.23	2.70	2.70	3.38	4.05	4.88	4.88	6.10	7.33	8.79	9.76	12.2	14.6
	Allowable Torque	kg.cm	9.18	11.0	15.3	18.4	23.0	27.6	27.6	34.5	41.3	49.5	49.5	62.2	74.7	90.0	99.8	124	149

Frequency	Reduction Ratio		75	90	100	120	150	180	200	300	500
50HZ	Output Shaft Speed	rpm	20	16	15	12	10	8	7.5	5	3
	Allowable Torque	N.m	19.6	19.6	19.6	19.6	19.6	19.6	19.6	19.6	19.6
	Allowable Torque	kg.cm	200	200	200	200	200	200	200	200	200
60HZ	Output Shaft Speed	rpm	24	20	18	15	12	10	9	6	3.6
	Allowable Torque	N.m	18.3	19.6	19.6	19.6	19.6	19.6	19.6	19.6	19.6
	Allowable Torque	kgf.cm	187	200	200	200	200	200	200	200	200
