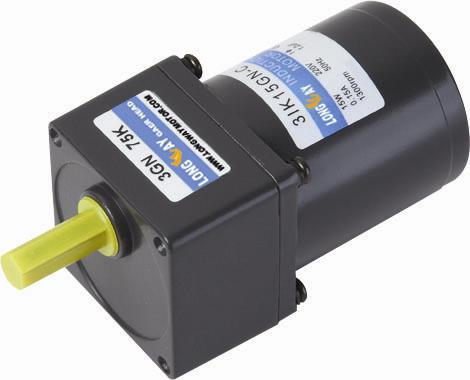

AC Gear Motor for Industrial Equipment

Name: AC Gear Motor for Industrial Equipment
Brand: all-electronics-online.com
SKU: 774608545
Availability: InStock
Rating: 4.4 (72 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	3IK15
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Stator:	Single-Phase
Function:	Driving
Certification:	CE,Rosh
Brand:	Longway

Product Description

AC gear motor
Typical Applications:Industrial equipment, Agricultural
machinery, Entertainment equipment, Transportation

Motor specification:

Model of Motor

Output

Voltage

Frequency

Poles

Duty

Rated

Starting Torque

/Capacitor/Ve

Speed

Current

Torque

rpm

N.m

kg.cm

N.m

kgf.cm

μf/VAC

3IK15A-A

3IK15GU-A

1ph110

CONT

1300

0.30

0.11

1.10

0.09

6.0/500

3IK15A-C

3IK15GU-C

1ph220

CONT

1300

0.14

0.11

1.10

0.10

0.95

1.5/500

3IK15A-D

1ph220

CONT

2800

0.17

0.06

0.55

0.08

0.75

1.5/5000

Frequency	Reduction Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60
50HZ	Output Shaft Speed	rpm	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25
	Allowable Torque	N.m	0.31	0.38	0.53	0.64	0.79	0.95	1.06	1.32	1.59	1.90	1.90	2.37	2.85	3.42	3.81	4.28	4.90
	Allowable Torque	kg.cm	3.2	3.9	5.4	6.5	8.1	9.7	10.8	13.5	16.2	19.4	24.2	29.1	31.9	38.8	43.6	50.0	50.0
60HZ	Output Shaft Speed	rpm	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30
	Allowable Torque	N.m	0.29	0.35	0.50	0.60	0.75	0.89	0.99	1.25	1.49	1.79	1.79	2.24	2.68	3.22	3.58	4.02	4.83
	Allowable Torque	kg.cm	3.0	3.6	5.1	6.1	7.6	9.1	10.1	12.7	15.2	18.2	18.2	22.8	27.3	32.8	36.5	41.0	49.2

Frequency	Reduction Ratio		75	90	100	120	150	180	200
50HZ	Output Shaft Speed	rpm	20	16	15	12	10	8	7.5
	Allowable Torque	N.m	4.90	4.90	4.90	4.90	4.90	4.90	4.90
	Allowable Torque	kg.cm	50.0	50.0	50.0	50.0	50.0	50.0	50.0
60HZ	Output Shaft Speed	rpm	24	20	18	15	12	10	9
	Allowable Torque	N.m	4.90	4.90	4.90	4.90	4.90	4.90	4.90
	Allowable Torque	kg.cm	50.0	50.0	50.0	50.0	50.0	50.0	50.0

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
