AC Hard Start Capacitor Kit

Prod Model:	SPP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Polypropylene Capacitor
Application:	Automobile
Package Type:	Through Hole
Capacitance:	1-50uf

Product Description

Specifications
We Supply AC Hard Satrt Kit Capacitor with Lowest Price And high Quality UL,TUV,CE Approved

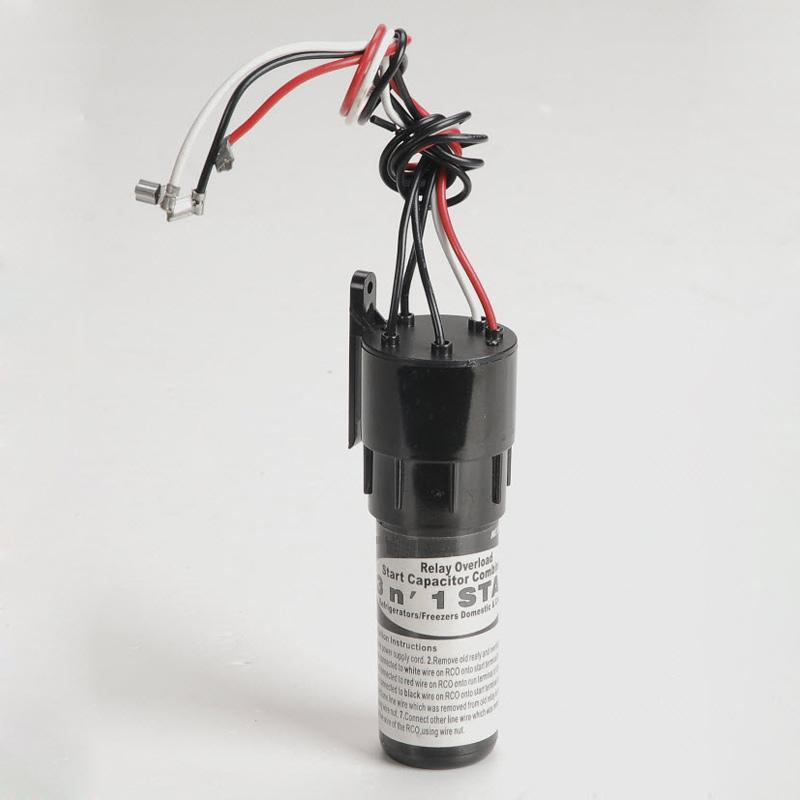

Hard Start Kit  Features and use:
This type capacitor is from bakelite capacitor based on special design for single AC motor and single phase AC hest pump system which is installed with operational capacitor(PAS). It may increase the starting torque of motor(heat pump). Can used on all PSC single phase 120V-288V air conditioner units from 4000-120000BTU.
Applicable scope: Single AC heat pump system in AC circuit.
Operating Voltage:110-330Vac
Power:1/2-10HP
Hard Start Kit Features :
1) Increases starting torque up to 500%
2) UL certified
3) Totally solid state integrated design
4) Fast, easy wires installation
5) Three mounting options: clip, screw, capacitor bracket
6) Individually packed
7) Applications: air conditioner,refrigerator,starting compressors

Hard Start Kit Features :

Part No.	BTU	HP	SUPCO	Voltage Max
HS600	4000-60000	1/2-5	SPP5	277VAC
HS650	4000-120000	1/2-10	SPP6	277VAC
HS800	5000-120000	1/2-10	SPP8	277VAC
HS410		1/2-5	RCO410	277VAC
HS810		1/2-10	RCO810	277VAC
