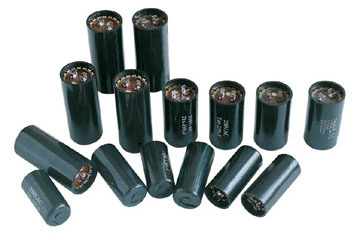

CD60 Motor Start Capacitor 50-100 UF

Name: CD60 Motor Start Capacitor 50-100 UF
Brand: all-electronics-online.com
SKU: 729912735
Availability: InStock
Rating: 4.5 (46 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CD60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Temperature Range:	-40~+65
Type:	Mica Capacitors
Application:	Lighting
Capacitance:	50-100uf
Package Type:	Nylon, Box

Product Description

CD60 Motor start capacitor , condenser,

Features and use:
It can be used in the startup of single-phase Ac motors (50Hz or 60Hz) to gain greater angular force under lower stating current. It is characterized by its exce-llent electric property, stable and dependable quality.
Technical Specifications

Working Temperature Range -40~+65

Rated Voltage Range110~330VAC

Rated Capacitance Range21-1536Uf

Dissipation Factor Tan ≤ 0.01 (50 Hz)

Rated Tolerance of capacitance30%

Without Voltage Between TerminalApply 1.25 times working voltage, for 2
Seconds,with out break down or explosion

Withstand Voltage Between Terminal and case2000Vac ,for 10 seconds,without break down or explosion

Capacitance uF	Rated Voltage 110-165Vac	Rated Voltage 220-250Vac	Rated Voltage 300-330Vac
21-25	36×70	36×70	36×85
25-30	36×70	36×70	36×85
30-36	36×70	36×70	36×85
36-43	36×70	36×85	36×85
43-52	36×70	36×85	36×85
47-56	36×70	36×85	36×85
53-64	36×70	36×85	46×85
64-77	36×70	36×85	46×85
72-86	36×70	36×85	46×85
88-108	36×70	46×85	46×111
108-130	36×70	46×85	46×111
124-149	36×70	46×85	46×111
130-156	36×70	46×85	46×111
145-174	36×70	46×111	52×111
161-193	36×70	46×111	52×111
189-227	36×85	46×111	52×111
216-259	36×85	46×111	52×111
223-280	36×85	46×111	52×111
243-292	36×85	46×111	52×111
270-324	36×85	52×111	52×111
324-389	36×85	52×111	52×111
340-408	46×85	52×111	52×111
378-454	46×85	52×111	52×111
400-480	46×85	52×111	52×111
430-515	46×85	52×111	52×111
460-552	46×85	52×111	52×111
540-648	46×111	52×111	52×111
890-708	46×111	65×111	65×111
645-774	46×111	65×111	65×111
708-850	46×111	65×111	65×111
720-850	46×111	65×111	65×111
720-865	46×111	65×111	65×111
800-960	46×111	65×111	65×111
815-978	46×111	65×111	65×111
829-995	46×111	65×111	65×111

Ningbo Hairong Import & Export Co., Ltd. Specializes in manufacturing and marketing electric motor, reducer, axial fan, fan motor, water pump, blower, capacitors, switch, thermostat, timer and refrigeration parts.

Our products are manufactured strictly according to the national standard and the IEC regulation, which have been given relative certificates.

Developing business based on the quality is the tenet we have always held. Besides the products listed in our catalogues, we also offer OEM services.

At present, our products sell well widely to Europe, America and South-East Asia. We sincerely wish to cooperate with clients and friends worldwide to build a brilliant future together!
