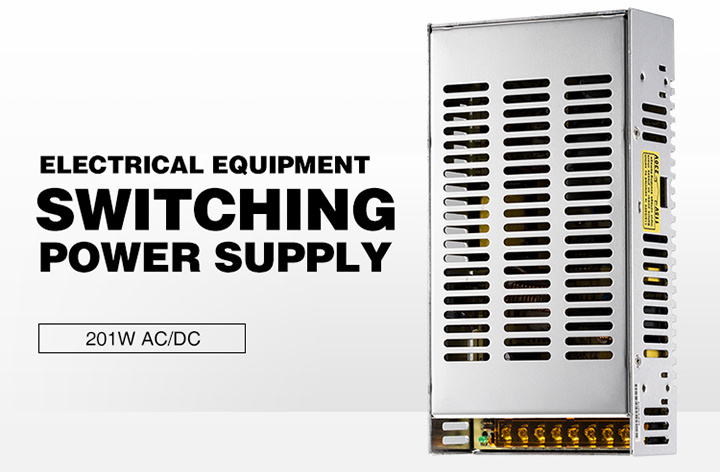

AC Input 110V / 220V to 12V DC 201W Power Supply (S-201-12) , LED Switching Power Supply

Name: AC Input 110V / 220V to 12V DC 201W Power Supply (S-201-12) , LED Switching Power Supply
Brand: all-electronics-online.com
SKU: 839572075
Availability: InStock
Rating: 4.8 (111 reviews)

Price:	US $ 15-17/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-201
Output Type:	Single
Warranty:	1 Year
Output Power:	201 - 300W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

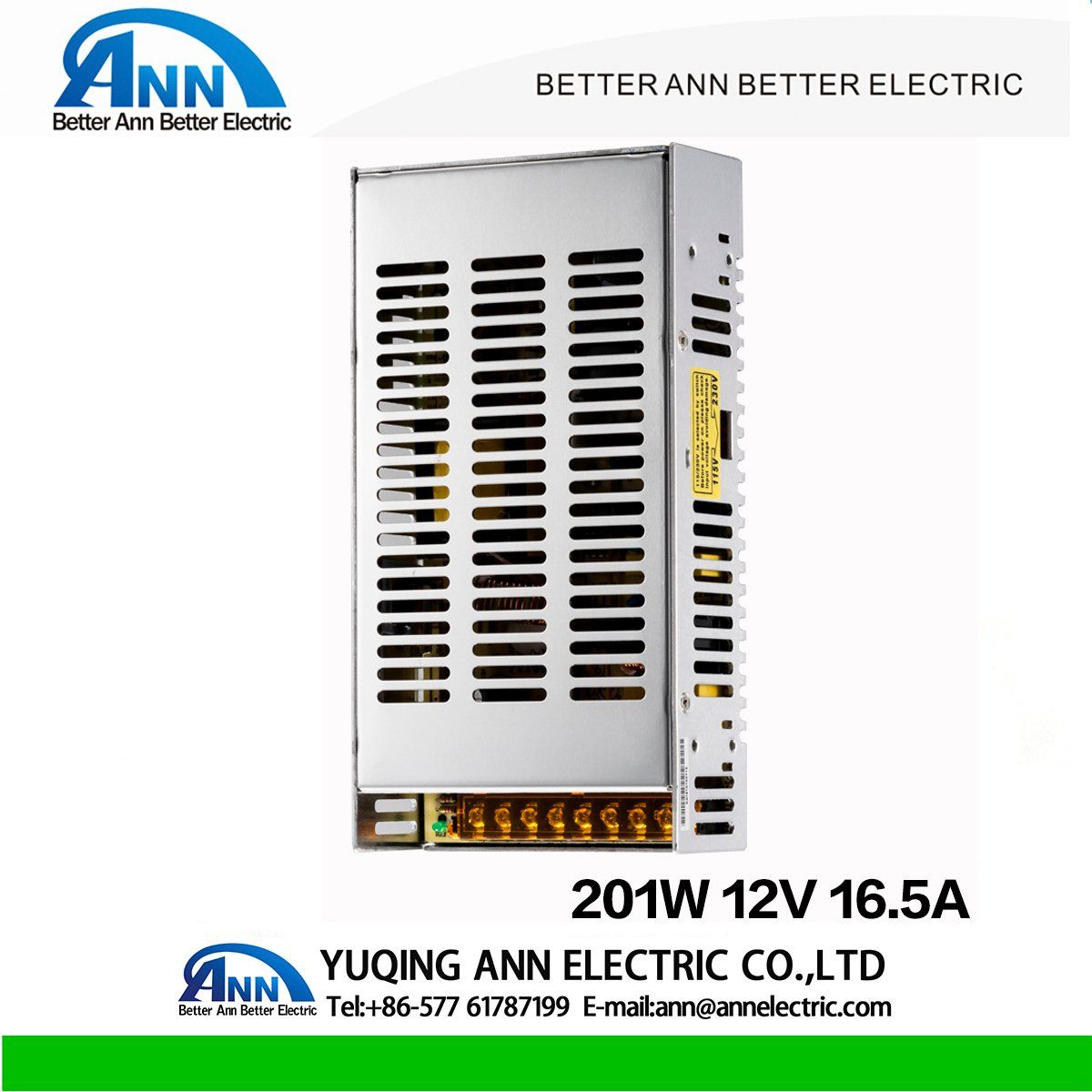

201W 12V DC Switching Power Supply

Features:

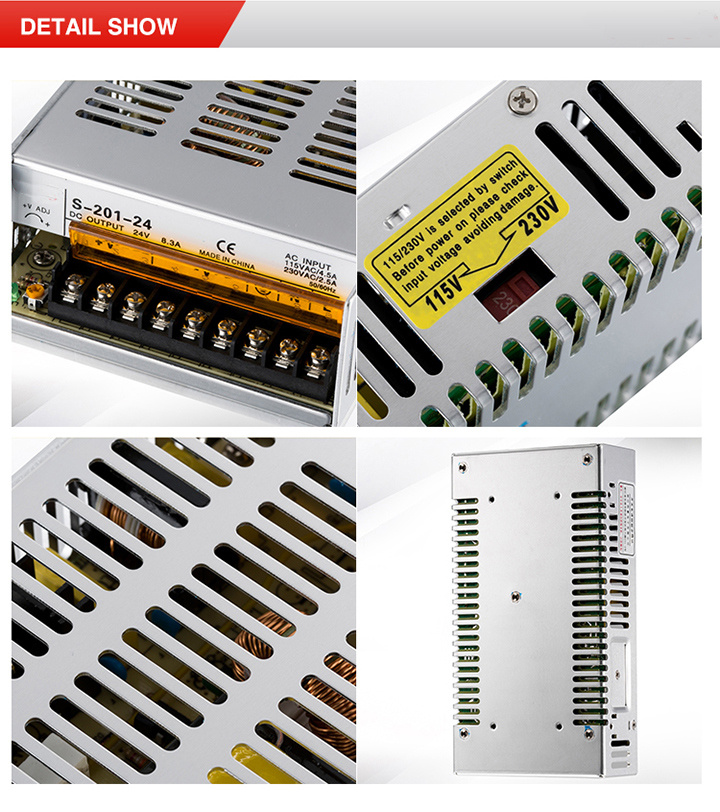

1. AC input range selectable by switch

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 12 months warranty

Specifications:

Model / Specification	S-201-5	S-201-7.5	S-201-12	S-201-13.5	S-201-15	S-201-24	S-201-27	S-201-48
DC output voltage	5V	7.5V	12V	13.5V	15V	24V	27V	48V
Output voltage error (Note2)	±2%	±2%	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	40A	26.5A	16.5A	14.7A	13A	8.3A	7.4A	4.2A
Output current rage	0-40A	0-26.5A	0-16.5A	0-14.7A	0-13A	0-8.3A	0-7.4A	0-4.2A
DC output power	200W	198.75W	198W	198.45W	198W	199.2W	199.8W	201.6W
Adjustable range for DC voltage	4.5-5.6V	6-9V	10-13.2V	12-15V	13.5-18V	20-26.4V	26-32V	41-56V
AC input voltage range	90~132VAC/186~264VAC SELECTED BY JUMPER OR SWTCH 47~63Hz, 254~370VDC
Input current	4.5A/115V 2.5A/230V
AC impulse current	25A/115V 50A/230V
Leakage current	<3.5mA/240VAC
Overload proctection	105%~150%. Type, PULSING HICCUP SHUTDOWN Reset, auto recovery
Temperature coefficient	±0.03%°C(0~50°C)
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Withstand voltage	Input and output interval,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure,500VAC/100M Ohms
Working temperature and humidity	-10°C~+50°C,20%~90%RH
Store temperature and humidity	-20°C~+85°C,10%~95%RH
Overall dimension	21511550mm
Weight	0.9Kgs
