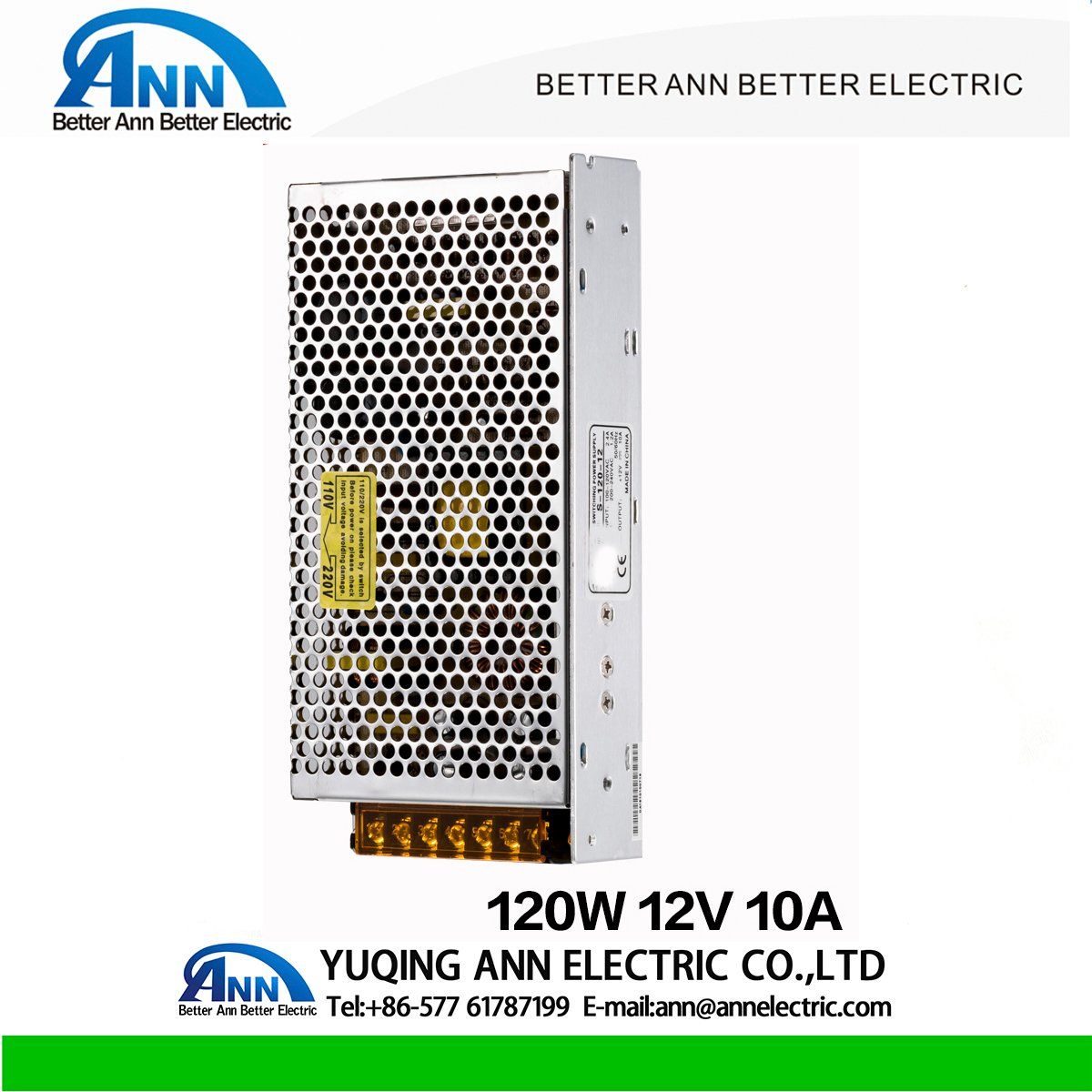

AC Input Adjustable DC 120W 12V Power Supply

Name: AC Input Adjustable DC 120W 12V Power Supply
Brand: all-electronics-online.com
SKU: 839331395
Availability: InStock
Rating: 4.8 (44 reviews)

Price:	US $ 10.8-12/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-120-12
Output Type:	Single
Warranty:	1 Year
Output Power:	101 - 200W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

120W 12V DC Switching Power Supply

Features:

1. DC Output 12v 24v 48v

2. AC input range selectable by switch

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 12 months warranty

Specifications:

Model	S-120-5	S-120-12	S-120-15	S-120-24
DC output voltage	5V	12V	15V	24V
Output voltage tolerance	±2%	±1%	±1%	±1%
Rated output current	24A	10A	8A	5A
Output current range	0-24A	0-10A	0-8A	0-5A
Ripple and noise	50mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%	±0.3%	±0.2%
Load stability	±1%	±0.5%	±0.3%	±0.2%
DC output power	120W	120W	120W	120W
Efficiency	79%	84%	85%	85%
Output voltage adjustment range	±10%	±10%	±10%	±10%
AC input voltage range	85~132VAC/170~265VAC/47~63VAC,120~370VDC
Input current	0.6A/115V 0.35A/230V
AC impulse current	Cold-start current 15A/115V 30A/230V
Leakage current	<0.75mA/240VAC
Overload protection	105%~150% Type,PULSING HICCUP SHUTDOWN,Reset,auto recovery
Over-voltage protection	115%~135% rated output power
Temperature coefficient	±0.03%°C(0~50°C)
Setup rise hold up time	800ms,50ms,20ms/115VAC 300ms,50ms,80ms/230VAC
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ
Working temperature and humidity	-10°C~+60°C,20~90%RH
Store temperature and humidity	-20°C~+85°C,10~95%RH
Overall dimension	1999838mm / 30pcs per carton
Weight	0.6Kgs
