Ningbo Yinzhou Longway Technology Co., Ltd. >> AC Reversible Synchronous Geared Motor for Pellet Feeder

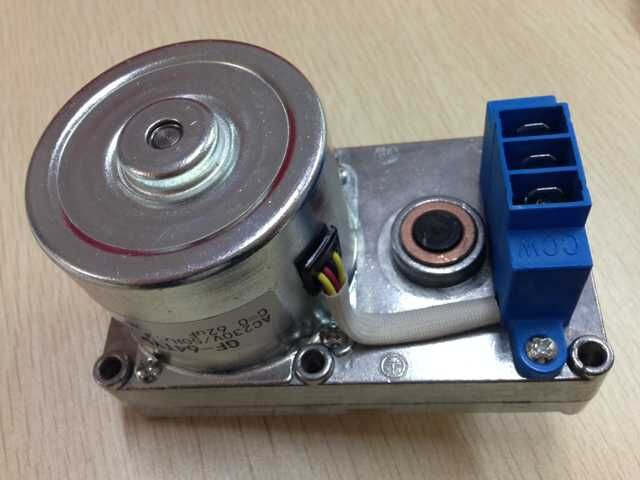

AC Reversible Synchronous Geared Motor for Pellet Feeder

AC Reversible Synchronous Geared Motor for Pellet Feeder
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union

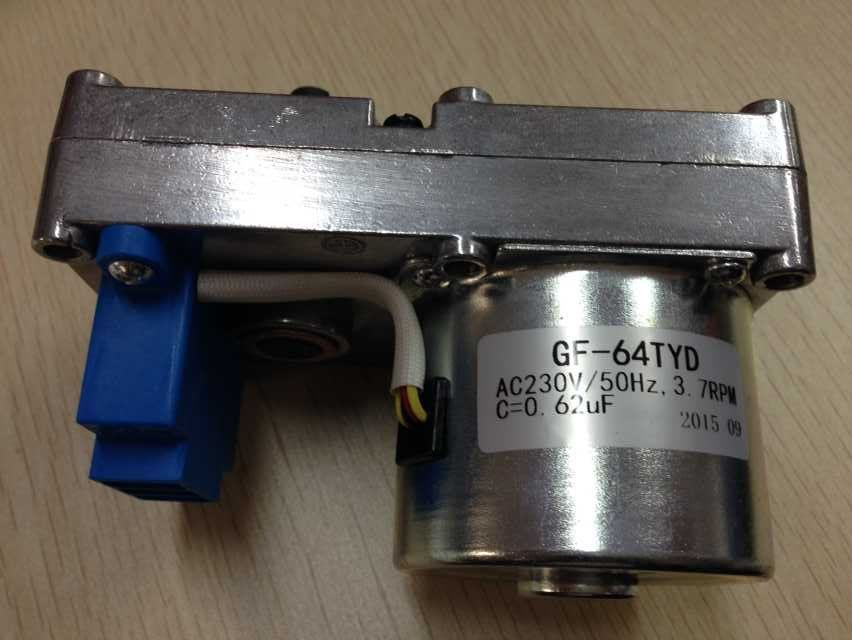

Prod Model: GF-64TYD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

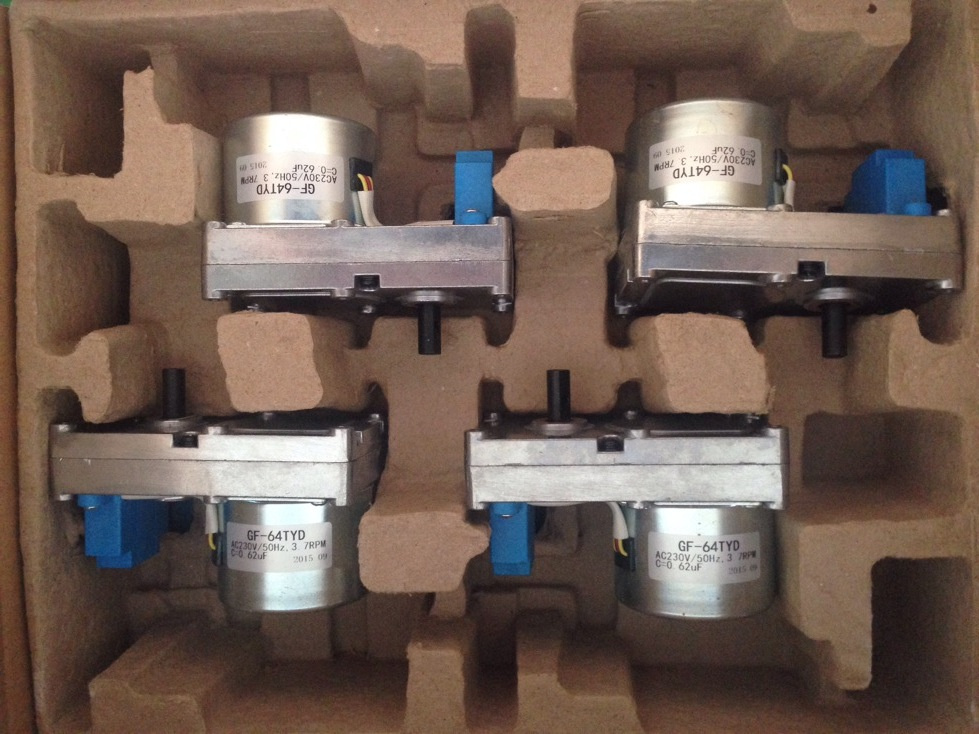

Package: 12PCS/CTN
Net Weight: 0.92kg/PC
CTN Size: 38*31*26
Number Of Stator: Single-Phase
Function: Driving
Application: Home Appliance
Certification: CE, RoHS
Brand: Longway

Product Description

AC REVERSIBLE SYNCHRONOUS GEARED MOTOR:
1)Applications: pellet feeder,pellet stove Auger,pellet burner,pellet grinder.

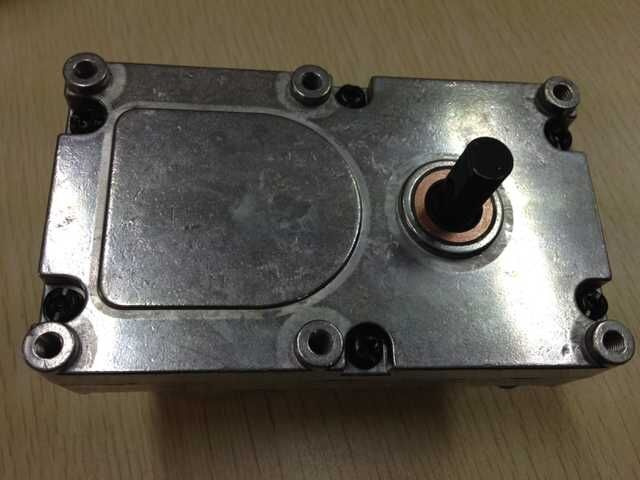

2)Die casting gearbox for heavy duty applications.
3)Reliable starting and directional stability.
4)Rated voltage:24V,110-120V,220-240V
5)Rated frequency:50/60Hz
6)Output power:5~8W
7)Rotate direction:CW/CCW/Bi-directional
8)Speed&torque:
speed(rpm)1.01.51.82.02.43.75.06.08.0
torque(kgf.cm)28025022020018016012010075
9)Above datas are from motor under 50Hz,If under 60Hz,speed x 1.2,torque/1.2
10)If you need other speed and torque,please feel free to contact with us.
welcome to buy our motors,I will give you a good price.



Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
