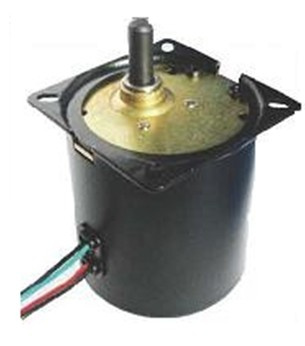

AC Reversible Synchronous Motor for Powder Coating Machine

Name: AC Reversible Synchronous Motor for Powder Coating Machine
Brand: all-electronics-online.com
SKU: 612658065
Availability: InStock
Rating: 4.8 (87 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	64TYD-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Car
Operating Speed:	Low Speed
Operation Mode:	Electric Motor
Magnetic Structure:	Permanent Magnet
Structure:	Rotating Pole Type (',Armature Fixed)
Number Of Poles:	Single-Phase
Ventilation:	Closed
Certification:	CE,Rosh
Brand:	Longway

Product Description

Diameter: Φ 42, Φ 49, Φ 59, Φ 60, Φ 64
Torque: 0.1N. M to 6N. M
Typical applications: Laminator, Paper Shredder, Rotating Christmas Tree Stand, fan, electric oven, grill.

Motor specification:

Item	Date
Rated voltage (V)	24	110			220
Rated Frequency (Hz)	50/60
Input Power (W)	<20
Input current (A)	<0.9		<0.2	<0.1
Noise (db)	5-6
Speed (RPM)	<45
Rotate direction	CW / CCW/ Bi-directional

Speed(rpm)	Working style	15	20	25	30	40	50	60	70	80	99	152
Torque (kg.cm)	S1 coutinuous	30	22	18	18	11.5	9	7.5	6.4	5.6	4.5	3
	S2 15 minutes	40	30	24	20	15	12	10	8.6	7.5	6	4
	S2 5 minutes	60	45	36	30	22.5	18	15	12.8	11	9	6

*The specifications can be designed according to the customer's requirement !

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
