AC Reversible Synchronous Motor S593e (59MM)

Name: AC Reversible Synchronous Motor S593e (59MM)
Brand: all-electronics-online.com
SKU: 647889455
Availability: InStock
Rating: 4.5 (50 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S593E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	59mm
Output Speed:	0.05-3.3rpm
Voltage:	24-220VAC
Current:	0.1-0.9A
Frequency:	50/60Hz
Input Power:	20W
Noise:	45db
Application:	Car
Operation Mode:	Electric Motor
Operating Speed:	AC Motor

Product Description

I. CH MOTOR - AC Re-synchronous Motor S593E(59MM)

Specifications:
-Output Speed: 0.05-3.3RPM
-Voltage: 24-220VAC
-Current: 0.1-0.9A
-Frequency: 50/60Hz
-Input Power: <20W
-Noise: <45dB
-Rotation: CW/CCW Bi-directional

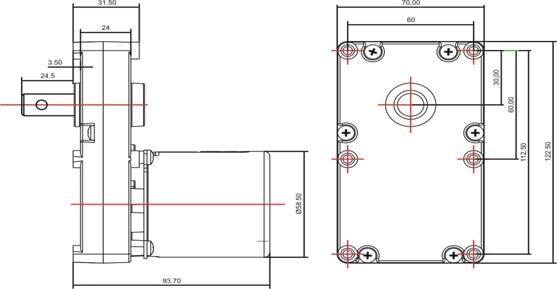

Drawing:

Specification
Model	Output speed (rpm)	Output Torque (kg.cm)			Voltage (V.AC)	Current (A)	Frequency (Hz)	Input Power (W)	Noise (dB)	Rotation
Model	Output speed (rpm)	S1 continuous	S2 15 minutes	S2 5 minutes	Voltage (V.AC)	Current (A)	Frequency (Hz)	Input Power (W)	Noise (dB)	Rotation
S593-200-005	0.05	200			24 ******* 110 ******* 220	<0.9 ******** <0.2 ******* <0.1	50/60Hz	<20	<45	CW / CCW / Bi-directional
S593-200-008	0.08	200
S593-200-011	0.11	200
S593-200-016	0.16	200
S593-200-025	0.25	200
S593-200-033	0.33	200
S593-200-050	0.5	200
S593-200-066	0.66	200
S593-180-083	0.83	180
S593-150-200	2	150
S593-150-330	3.3	150
Note: Above datas are from motors under 50Hz. If under 60Hz, Speed*1.2 , Torque/1.2 Other speed and torque needed, please contact our sale department

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
