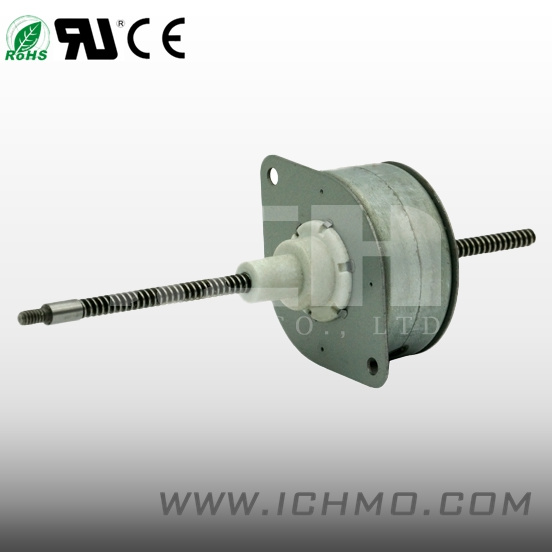

NEMA Micro Electric Linear Actuator Stepper Motor L351-075 (35mm)

NEMA Micro Electric Linear Actuator Stepper Motor L351-075 (35mm)
Price: US $ 15/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T
Prod Model: L351-075
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 35mm
Number Of Stator: Two-Phase
Type: Magnetic-Electric
Excitation Mode: Linear Stepper Motor

Product Description


Specifications:
-Voltage: 5-12V
-Phase No.: 2.4
-Rated Current: 0.46-0.8A
-Phase Resistance: 11-15ohm
-Phase Inductance: 5.2-8.6mH
-Weight: 86g

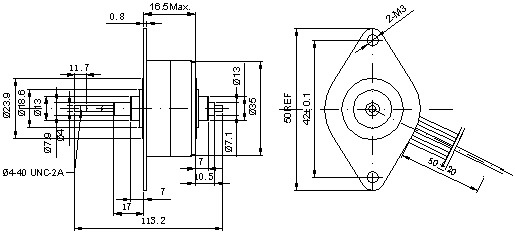

Drawing:
                                                                     Electrical Specification
Series ModelRated Voltage (v)No. of phaseRated
Current
(A)
Phase
Resistance
(ohm)
Phase
Inductance
(mH)
Travel per Step Avail (mm)The Mark Thrust  (N)The Mark Pull    (N)After All Journey (mm)Motor
Wgt
(g)
L351-07555-01520.46118.60.02545555>=7586
L351-07555-021240.8155.20.02545555>=7586
L351-070551240.8155.20.025455557086
I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
