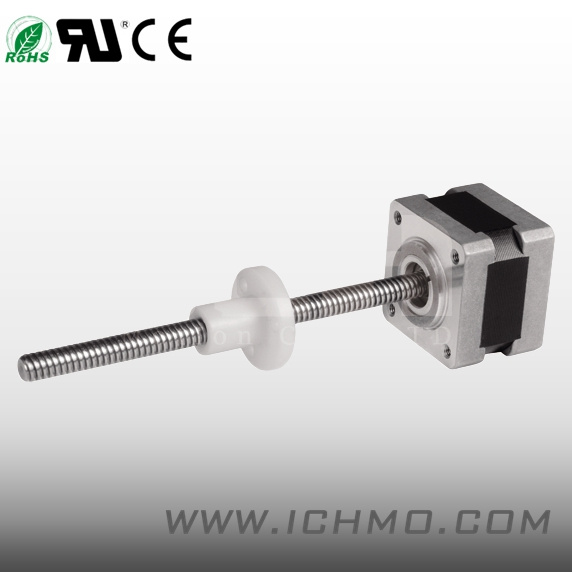

Micro Linear Hybrid Electric Step Stepper Brushless DC Motor

Micro Linear Hybrid Electric Step Stepper Brushless DC Motor
Price: US $ 20/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: T/T
Prod Model: HL353
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Szie: 35mm
Step Angle: 1.8
Phase: 1.8
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Type: Linear
Application: Projector
Brand: I.CH

Product Description

Micro Linear Hybrid Electric Step Stepper brushless DC Motor

- 1.8°/step
2/4 Phase

Screw Specification
 Screw Dia.(mm) ---Tr6.35
Travel Per Step(mm)---0.0079  0.0158  0.0315
Lead(mm)---1.58 3.17 6.35


Screw Dia.(mm) ---Tr8.00
Travel Per Step(mm)---0.0400
Lead(mm)---8

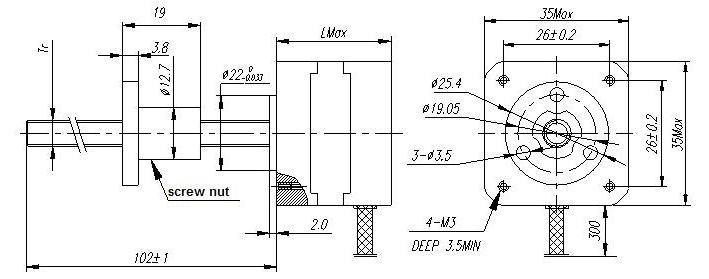

Drawing:



Motor Electrical Specification
Series ModelStep Angle ( o )L
(mm)
Rated Current (A)Phase
Resistance
(Ω)
Phase
Inductance  (mH)
Holding Torque
(N.cm)
Detent Torque (N.cm)Lead
Wire
(NO.)
Motor
Weight
( g)
HL353-012051.8280.462015120.84120
HL353-012081.8280.85.57.0120.84120
HL353-009041.8280.4301190.86120
HL353-018041.8340.422540181.04160
HL353-018081.8340.86.512181.04160
HL353-012041.8340.43022121.06160
