Prod Model:	DC Gear Motor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	From 12mm to 48mm
Voltage:	From 2.4V to 24V
Speed:	From 2rpm to 600rpm
Current:	From 30mA to 180mA
Torque:	From 0.416kg.Cm to 30kg.Cm
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	DC Gear Motor
Number Of Poles:	DC Gear Motor
Structure And Working Principle:	DC Gear Motor
Type:	DC Gear Motor
Brand:	I.CH

Product Description

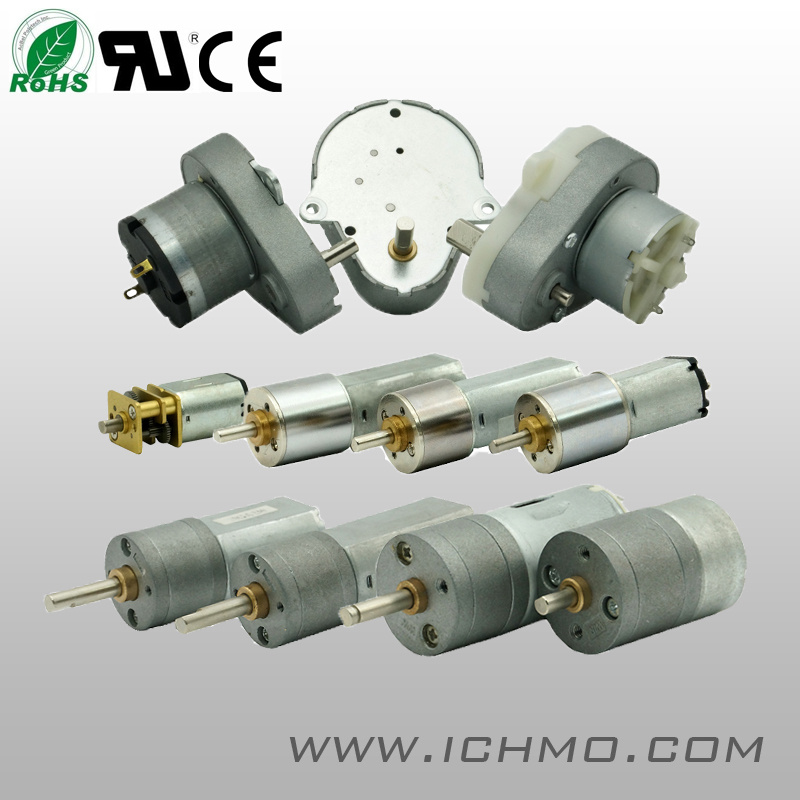

Gear Reduction Box High Torque DC Stepper Electric Motor

Applications: They are mainly used in Electronic lock, Optic equipment, Medical apparatus


Features: I. CH MOTION supply a complete range of DC gear motor. Our micro DC geared motor uses standard DC motor. Diameter of gearbox is from 12 to 37mm, and pear sharp diameter is 48mm. Voltage is from 1.5V to 24V; Power is under 10W; Speed is from 1 to several tens rpm, and Torque is under 30kg. Cm.

Structure and Characteristic of DC motor

DC motor we use has good electric and mechanical performance.

Because of volume and metal brush commutator limit, the speed of DC motor is between 3000 to 12000 rpm normally. Faster speed will decrease motor life.

Low noise DC motor with ring varistor inside is adopted, which can decrease electromagnetic disturbance to environment.

DC motor life is depending on mechanical and chemical wear of metal brush and commutator. It can continuously run over 300 to 500 hours within rated load and speed.

The load torque of DC geared motor has direct relationship with speed and current. When the load increases, the speed linearly decreases and the current linearly increases. So the geared motor has better working near maximum efficiency, then it can obtain ideal running performance, working life and stable characteristic.

In general, the working environment of DC geared motor is the same as DC motor. If there are any special requirement, such as environment temperature, overload, and current limit, please illuminate in advance.

Working life of gearbox usually longer than DC motor, it can reach 1000 to 3000 hours.

Entire reduction ratio of gearbox is between 1: 10 and 1: 500. It can reach 1: 1000 with special design. However, the gearbox with bigger reduction ratio is not allowed "counter rotation", which means the output shaft of gearbox cannot be the driving shaft and counter rotated forcedly.

The gearbox is combined with multi-pair of gears. Every pair includes gear wheel and pinion which is joggled one another. The first pinion is mounted on the motor shaft of DC motor. The bearing of gearbox output shaft is usually oil bearing made of brass or iron.

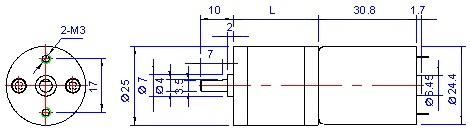

One standard drawing for your reference




Electrical Specification
SERIES	Figure Size	VOLTAGE V	NO LOAD		AT MAXIMUM EFFICIENCY				STALL
			SPEED rpm	CURRENT M A	SPEED rpm	TORQUE Kg . cm	CURRENT m A	OUTPUT m W	TORQUE Kg . cm	CURRENT m A
D12	12mm	2.4~6	17~210	30~120	12~160	0.16~1.5	150~700	60~640	0.9~4	240~1150
D16	16mm	2.4~12	24~400	40~90	11~330	0.2~2.5	120~440	90~680	0.8~4.5	400~1000
D20	20mm	2.4~18	15~620	30~180	12~500	0.1~4	60~670	70~1800	0.4~12	130~3500
D25	25mm	3~24	6~650	30~150	4~535	0.07~14	70~5000	70~4000	0.25~35	250~3000
D36	36mm	0~3	1.4~1.7	40~50	1.2~1.5	3.0~6.0	50~85	40~75	30~60
D42	42mm	0~12	23~52	140~310	21~46	5.0~18	250~1300	1000~8500	0~30
D48	48mm	6.0~24	2.3~60	40~120	2.0~45	2.0~30	90~600	530~2800	7~50	350~2500
Note: We accept the customized design if the customers give us the details, thanks!
