NEMA 17/34 Servo Brushless DC Stepper Motor

NEMA 17/34 Servo Brushless DC Stepper Motor
Price: US $ 20/Piece
Trade Terms: others
Min Order: 500/Piece
Pay Type: L/C,T/T
Prod Model: D425
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Household Appliances
Operating Speed: Adjust Speed
Excitation Mode: Brushless Motor
Brand: I.CH

Product Description

NEMA 17/34 Servo Brushless DC Stepper Motor

Specifications:
-Rated Power: 32-64W
-Rated Voltage: 24-36VDC
-Current: 1.8-2.4A
-Poles No.: 4, 8
-Rated Speed: 3000RPM
-Rated Torque: 10-20N. Cm
-Peak Torque: 35-70N. Cm
-Length: 49-71mm
-Weight: 0.35-0.55Kg

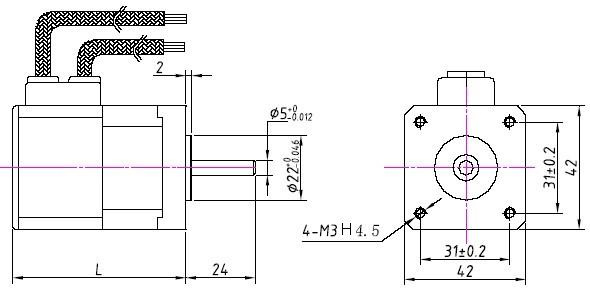

Drawing:

                                                                   Specification
ModelRated powerRated voltageCurrentNumber of poles  Rated speedRated torquePeak torqueMoment constantLengthWeight
WVDCArpmN. cmN. cmN. cm/AmmKg
D425-01018A32241. 8  4300010355.7510.35
D425-02024A64362.420708.5710.55
D425-01018B32241.88300010355.7490.35
D425-02024B64362.420708.5680.55
*Note: We can customize the special speed, Voltage, Assembled size. High speed at 4 poles (Conventional). Low speed at 8 poles
I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
