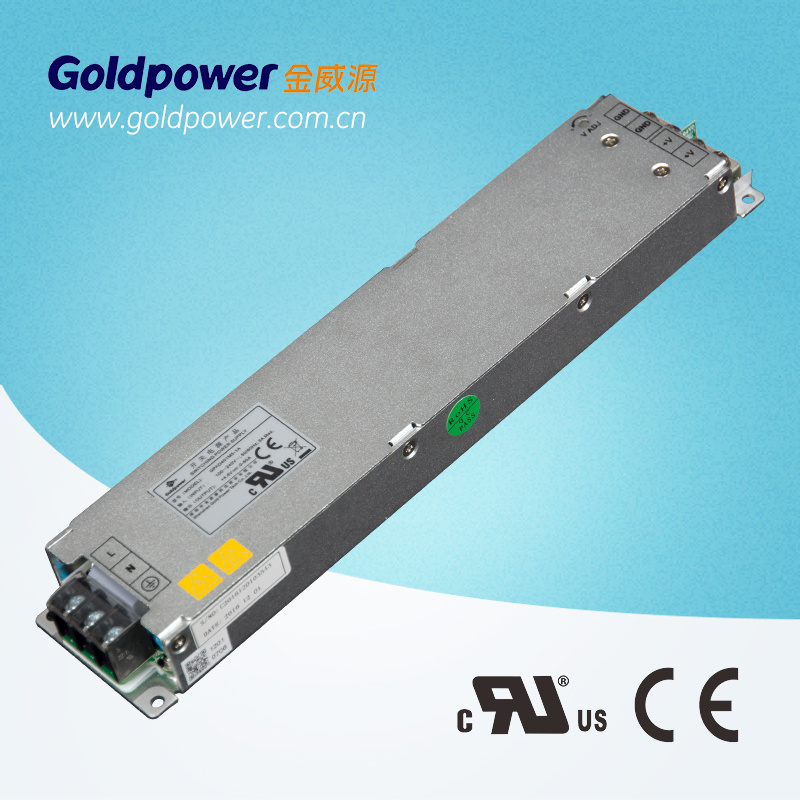

AC to DC 400W 5V LED Switching Power Supply

Name: AC to DC 400W 5V LED Switching Power Supply
Brand: all-electronics-online.com
SKU: 733194982
Availability: InStock
Rating: 4.8 (82 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPAD401M5-1A
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Certification:	CB
Power Supply Voltage:	4.2~5VDC
Brand:	Goldpower

Product Description

AC to DC 400W 5V LED switching power supply with UL CB is our 400W Series LED power supply.

Feature:
1. 4.2-5V multi-file adjustable, can satisfy the demands of all kinds of different brightness screen
2. Small shock current, with complete protective function. Fewer requirements for the air switch of on-site installation.
3. The stability & reliability has been proven by millions of power supply
4. The power factor up to 0.95, efficiency over than 90%.

Specification:

Input
Item	Parameter	Unit
Input voltage range	90~264	Vac
Input inrush current	60	A
Input frequency	47~63	Hz
Power factor	0.95
Output
Output voltage range	4.2~5	Vdc
Output efficiency	90	%
Stabilized voltage precision	±5	%
Load regulation	±1	%
Turn-on output delay	2	s
Ripple & Noise	200	mV
Dynamic response	±5	%
MTBF	≥200,000	H
Environmental
Working temperature	-25~55	ºC
Relative humidity	5-95	%
Storage temperature	-25-100	ºC
Altitude	4000	m
General Characteristics
Insulation resistance	≥10	MΩ
Dimension	2505326 mm
Weight	≤1Kg

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
