AC to DC Mini Power Supply 12V 20W LED Switching Power Supply

Name: AC to DC Mini Power Supply 12V 20W LED Switching Power Supply
Brand: all-electronics-online.com
SKU: 820933205
Availability: InStock
Rating: 4.9 (99 reviews)

Price:	US $ 3.8/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSF-20W
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Certification:	CCC
Power Supplying System:	Power
Brand:	CNC

Product Description

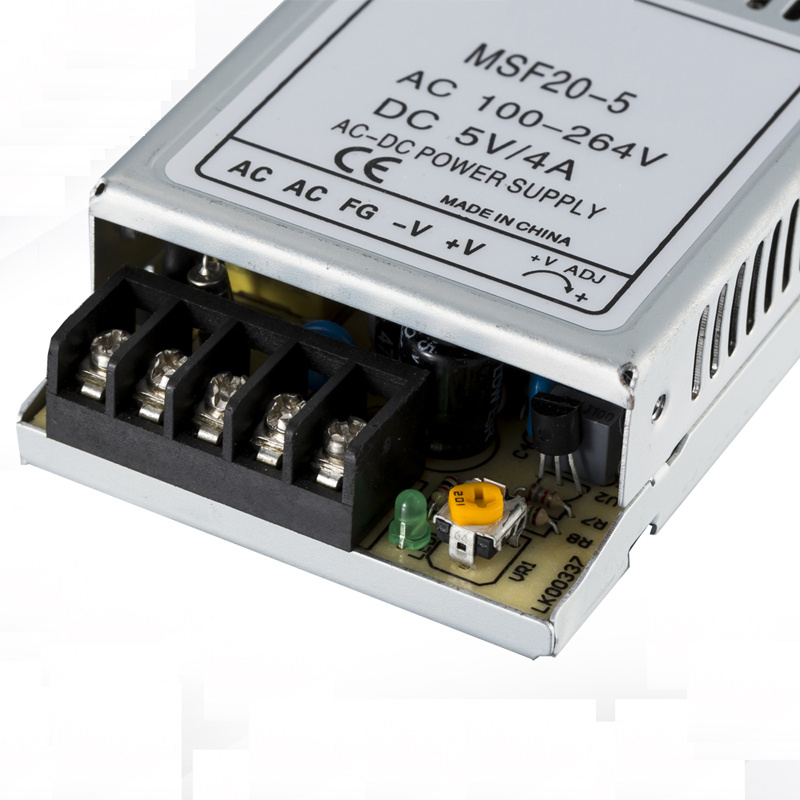

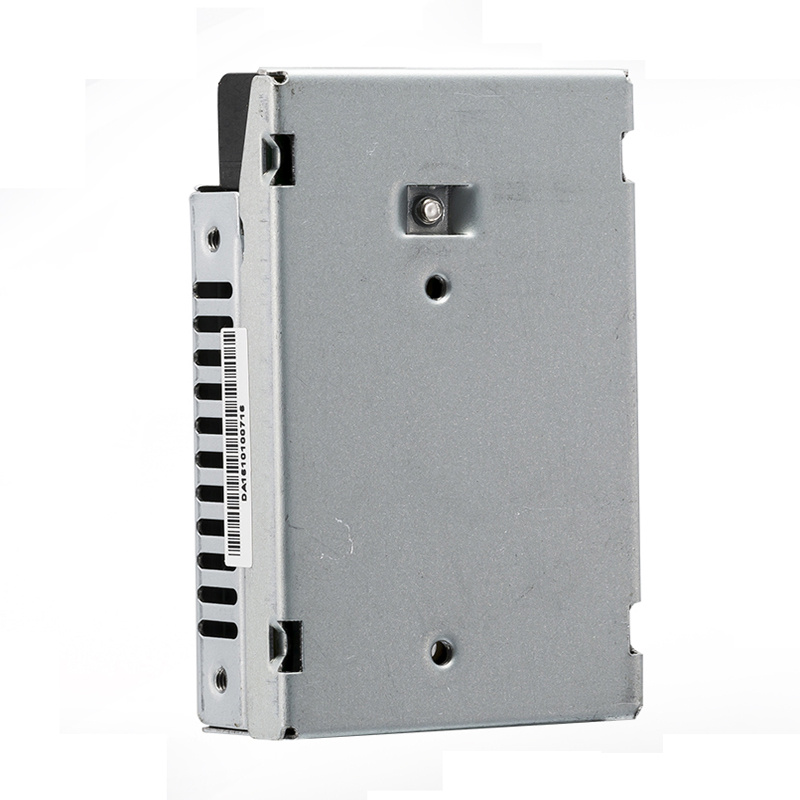

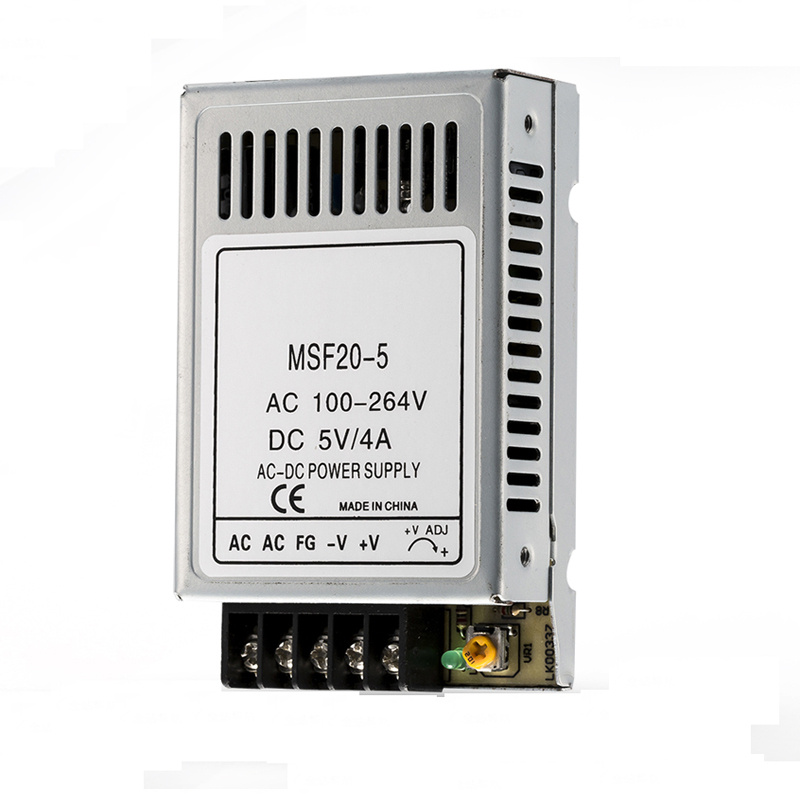

AC to DC mini power supply 12v 20W led switching power supply

1. China Top 500 Enterprise
2. 26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries

MODEL	MSF-20-5	MSF-20-12	MSF-20-15	MSF-20-24
DC VOLTAGE	5V	12V	15V	24V
RATED CURRENT	4A	2A	1.6A	0.85A
CURRENT RANGE	0 ~ 2A	0 ~ 0.83A	0 ~ 0.83A	0 ~ 0.42A
RATED POWER	20W	20W	20W	20W
RIPPLE & NOISE (max.)	50mVp-p	50mVp-p	50mVp-p	100mVp-p
VOLTAGE ADJ. RANGE	4.75 ~ 5.5V	10.8 ~ 13.2V	13.5 ~ 16.5V	21.6 ~ 26.4V
VOLTAGE TOLERANCE	2.0%	1.0%	1.0%	1.0%
LINE REGULATION	0.5%	0.5%	0.5%	0.5%
LOAD REGULATION	1.0%	0.5%	0.5%	0.5%
SETUP, RISE, HOLD TIME	200ms, 50ms, 20ms at full load
VOLTAGE RANGE	85 ~ 264VAC
FREQUENCY RANGE	47 ~ 63Hz
EFFICIENCY (Typ.)	68%	71%	72%	75%
AC CURRENT	0.5A/115VAC 0.25A/230VAC
INRUSH CURRENT (max.)	COLD START 15A/115VAC 30A/230VAC
LEAKAGE CURRENT	<0.5mA/240VAC
OVERLOAD	105 ~ 135% rated output power
OVERLOAD	Protection type : Constant current limiting, recovers automatically after fault condition is reoved
WORKING TEMP.	-10 ~ +50C (Refer to output load derating curve)
WORKING HUMIDITY	20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY	-20 ~ +85C , 10 ~ 95% RH
TEMP. COEFFICIENT	0.02%/C (0 ~ 50C)
VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY STANDARDS	Design refer to UL1012
WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATION	Design refer to FCC Part15 J Conduction Class B
MTBF	522.1K hrs min. MIL-HDBK-217F (25C)
DIMENSION	975825mm (LWH)
