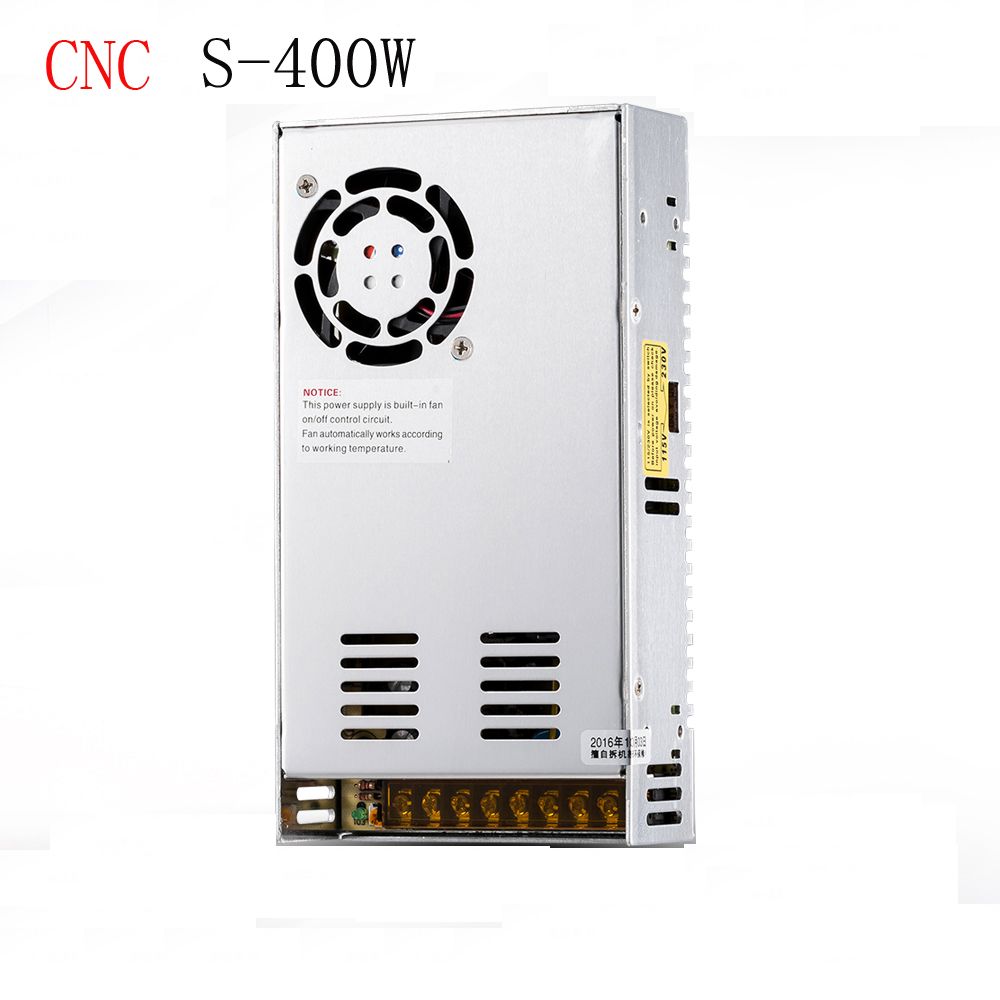

S-400W Made in China Factory Price 48V 8.33A 400W CCTV Power Supply

Name: S-400W Made in China Factory Price 48V 8.33A 400W CCTV Power Supply
Brand: all-electronics-online.com
SKU: 821193315
Availability: InStock
Rating: 4.5 (77 reviews)

Price:	Negotiable/Piece
Min Order:	20/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-400W
Output Type:	Single
Warranty:	2 Years
Output Power:	301 - 400W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Certification:	CCC
Power Supplying System:	Power
Brand:	CNC

Product Description

S-400w made in China factory price 48v 8.33a 400w cctv power supply

1. China Top 500 Enterprise
2. 26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries

Model	S-400W-5V	S-400W-12V	S-400W-15V	S-400W-24	S-400W-48
DC output voltage	5V	12 V	15 V	24V	48V
DC output current	60A	33A	27A	17A	8.3A
DC output voltage error	±1%	±1%	±1%	±1%	±1%
Ripple & noise	150mV	150mV	150mV	150mV	150mV
efficiency	73%	74 %	78%	81%	83 %
AC input voltage range	85-132VAC/170-264vac 47-63HZ 240-370VDC
Input current	6.5A/115V 4A/230V
AC inrush current	Cola-start current 25A/115V 50A/230V
Leakage current	<3.5mA/240VAC
DC adjustable range	±10% rated output voltage
Over load protection	105-135% cut off the output auto -recovery
Over-voltage protection	115-135 cut off the output auto -recovery
Setup rise hold up time	200ms 50ms 20ms
Withstand voltage	I/P-O/P:1.5KVAC 1minute I/P-FG:1.5KVAC 1minute O/P-O/P:0.5KVAC 1minute
Withstand temperature	-10°C~+60°C,20%-90% RH
weight	1.05kg

WHY US?
1. We Are Suppler of Three Gorges Project,China National Petroleum,Sinopec Group;
2. China Famous Export Enterprise, Our Products Sale in Over 100 Countries;
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.

CNC Electric Group Co.,Ltd.
Add:CNC High-tech industrial zone, north Baixiang,Wenzhou, Zhejiang province, China.325603

web:www.cncele.com

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
