| Prod Model: |
S-600W |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
>500W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Certification: |
CCC |
| Power Supplying System: |
Power |
| Brand: |
CNC |
Product Description

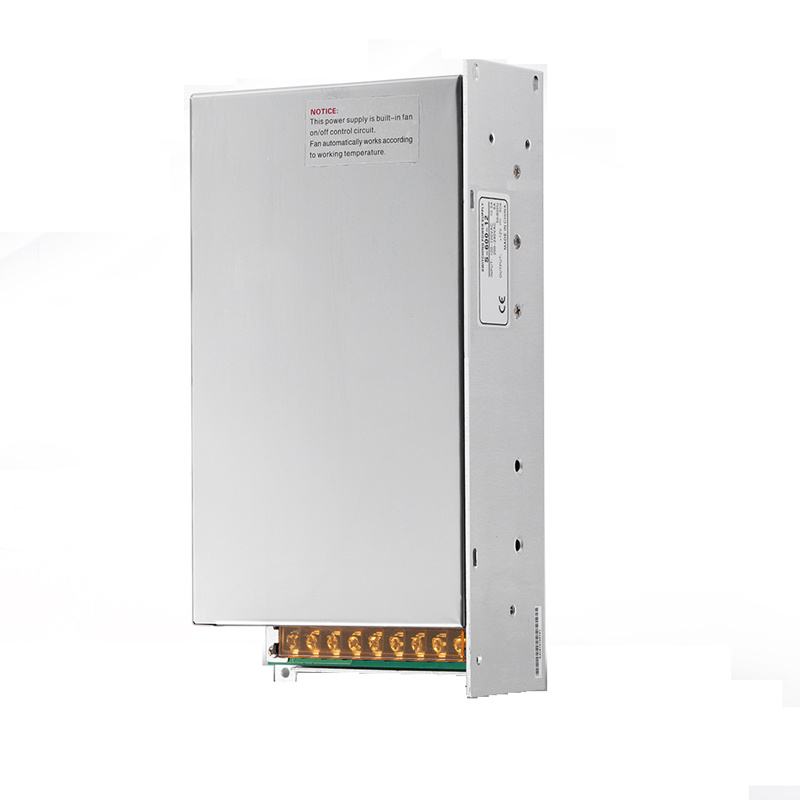

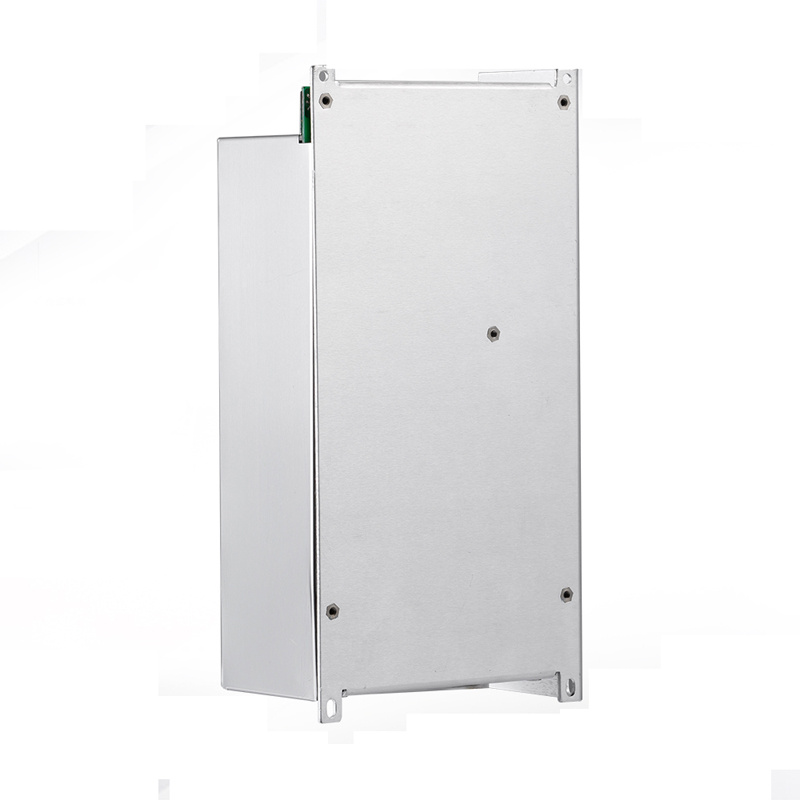

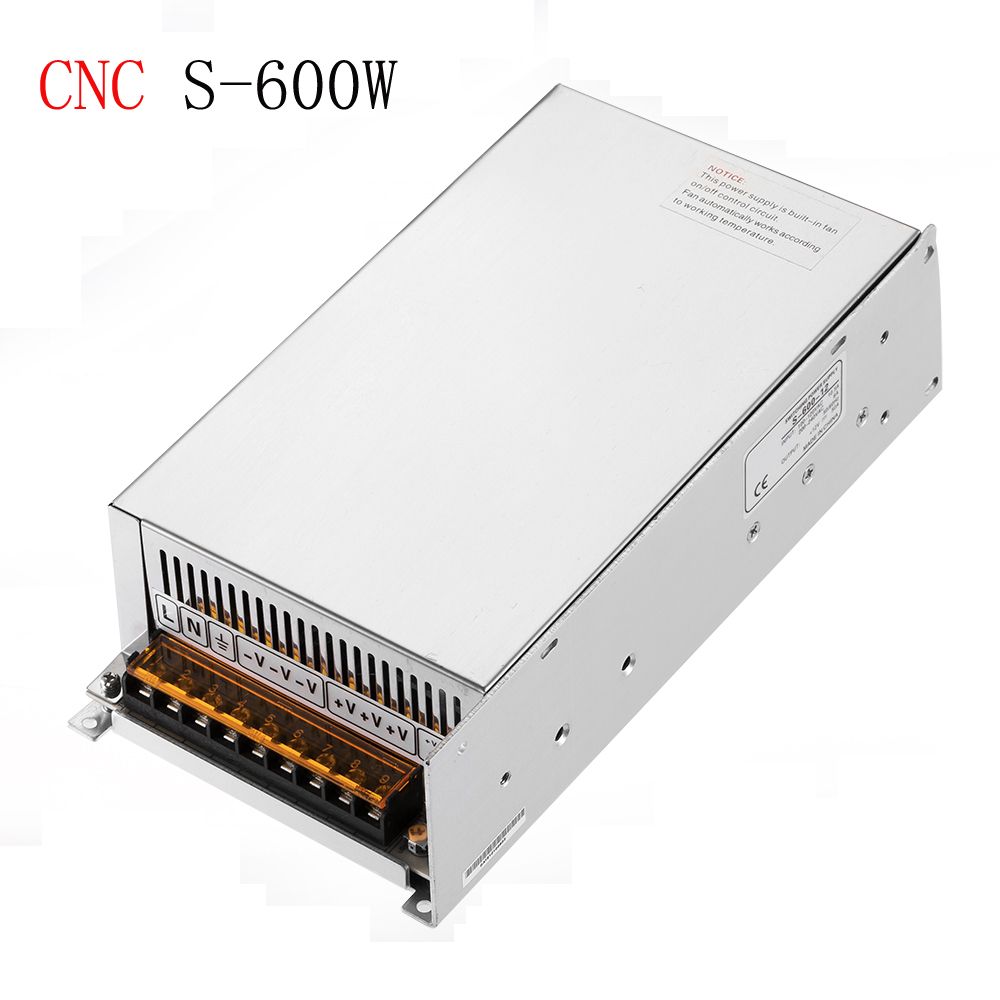

Nestest Factory outlet 600w 48vdc switching mode power supply
1. China Top 500 Enterprise
2. 26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries
| MODEL | S-600-12 | S-600-13.5 | S-600-15 | S-600-24 | S-600-27 | S-600-48 |
| OUTPUT | DC VOLTAGE | 12V | 13.5V | 15V | 24V | 27V | 48V |
| RATED CURRENT | 50A | 44A | 40A | 25A | 22A | 12.5A |
| CURRENT RANGE | 0 ~ 50A | 0 ~ 44A | 0 ~ 40A | 0 ~ 25A | 0 ~ 22A | 0 ~ 12.5A |
| RATED POWER | 600W | 600W | 600W | 600W | 594W | 600W |
| RIPPLE & NOISE (max.) | 240mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | 200mVp-p | 300mVp-p |
| VOLTAGE ADJ. RANGE | 10 ~ 13.2V | 12 ~ 15V | 13.5 ~ 18V | 20 ~ 26.4V | 26 ~ 32V | 41 ~ 56V |
| VOLTAGE TOLERANCE | 1.0% | 1.0% | 1.0% | 1.0% | 1.0% | 1.0% |
| LINE REGULATION | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% |
| LOAD REGULATION | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% |
| SETUP, RISE, HOLD TIME | 200ms, 50ms, 20ms at full load |
| INPUT | VOLTAGE RANGE | 180 ~ 264VAC (110VAC input can be custom-made) |
| FREQUENCY RANGE | 47 ~ 63Hz |
| EFFICIENCY (Typ.) | 84% | 84% | 84% | 86.0% | 87.0% | 88% |
| AC CURRENT | 7A/115V 3.5A/230V |
| INRUSH CURRENT (max.) | 18A/115V 36A/230V |
| LEAKAGE CURRENT | |
| PROTECTION | OVERLOAD | 105 ~ 135% of rate load |
| Protection type : Fold back current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 13.8 ~ 16.2V | 15.5 ~ 18.2V | 18 ~ 21V | 27.6 ~ 32.4V | 31 ~ 36.5V | 57.6 ~ 67.2V |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed. |
| FAN CONTROL,O.T.P. | RTH1 or RTH250 C FAN ON,45 C FAN, 70 C output shut down |
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60 C, 20 ~ 90% RH non-condensing |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -20 ~ +85 C, 10 ~ 95% RH |
| TEMP. COEFFICIENT | 0.03%/ C (0 ~ 50 C) |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
| SAFETY & EMC | SAFETY STANDARDS | Design refer to UL1950, TUV EN60950-1 |
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
| EMI CONDUCTION & RADIATION | Compliance to EN55022 (CISPR22) Class B |
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 |
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11;ENV50204,Light industry level,criteria A |
| OTHERS | MTBF | 138.6K hrs min. MIL-HDBK-217F (25 C) |
| DIMENSION | 240*125*65mm (L*W*H) |
| PACKING | 1.35Kgs/pcs, 12pcs/17.7Kgs/0.0326CMB |
