Latest Design Ycb9f-80 Pre-Paid MCB

Name: Latest Design Ycb9f-80 Pre-Paid MCB
Brand: all-electronics-online.com
SKU: 729456585
Availability: InStock
Rating: 4.5 (69 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCB9F-80
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	CNC
Rated Voltage:	230/400V
Rated Current:	80A
Main Feature:	Pre-Paid Card Signal Control Circuit Breaker
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CB
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Structure:	Conventional Circuit Breaker
Poles Number:	1/2/3/4p
Installation:	DIN Rail

Product Description

-China Top 500 Enterprise
-Full-automatic assembly line
-Output: 100000pcs/day

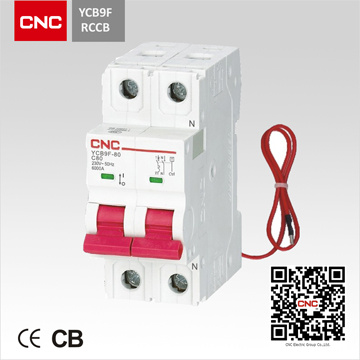

Latest Design YCB9F-80 Pre-paid MCB

Product Overview
YCB9-80F MCB is suitable for the circuit of AC 50/60HZ, rated voltage 230/400V, rated current 80A. It can be used for remote control and automatic signal control. It's also wilder used with IC card pre-paid meter supporting to control circuit on off. While it can be used on the overload protection and short circuit protection.

Normal Working Condition
1. Altitude: ≤ 2000m;
2. Mounting Type: II, III
3. Installation Method: Embedded Vertical DIN Standard Din Rail Installation
4. Pollution Degree: 2

Item	Data
Frame size	80
Rated insulation voltage	500V
Rated impulse withstand voltage	4kV
Rated frequency	50Hz/60Hz
Poles	1P+N, 3P+N
Instantaneous trip type	C, D
Rated short-circuit capacity Icn	6kA(80A), 10kA(10-63A)
Service Short-circuit capacity Ics	6kA(80A), 7.5kA(10-63A)
Mechanical life	20000
Electrical life	8000
Scope of work	(65%~120%)Un
Delay action time T	1s
Reset time T	≤30s
Operating temperature	-25°C~+60°C
Relative Humidity	T=20, less than 95%; T=40, less than 50%
Wire cross-sectional area	0.3mm²
Signal connecting wire length	500mm
Grid distance	45mm
Enclosure protection level	IP20
Standard	IEC60898-1, GB10963.1
Certification	CCC

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
