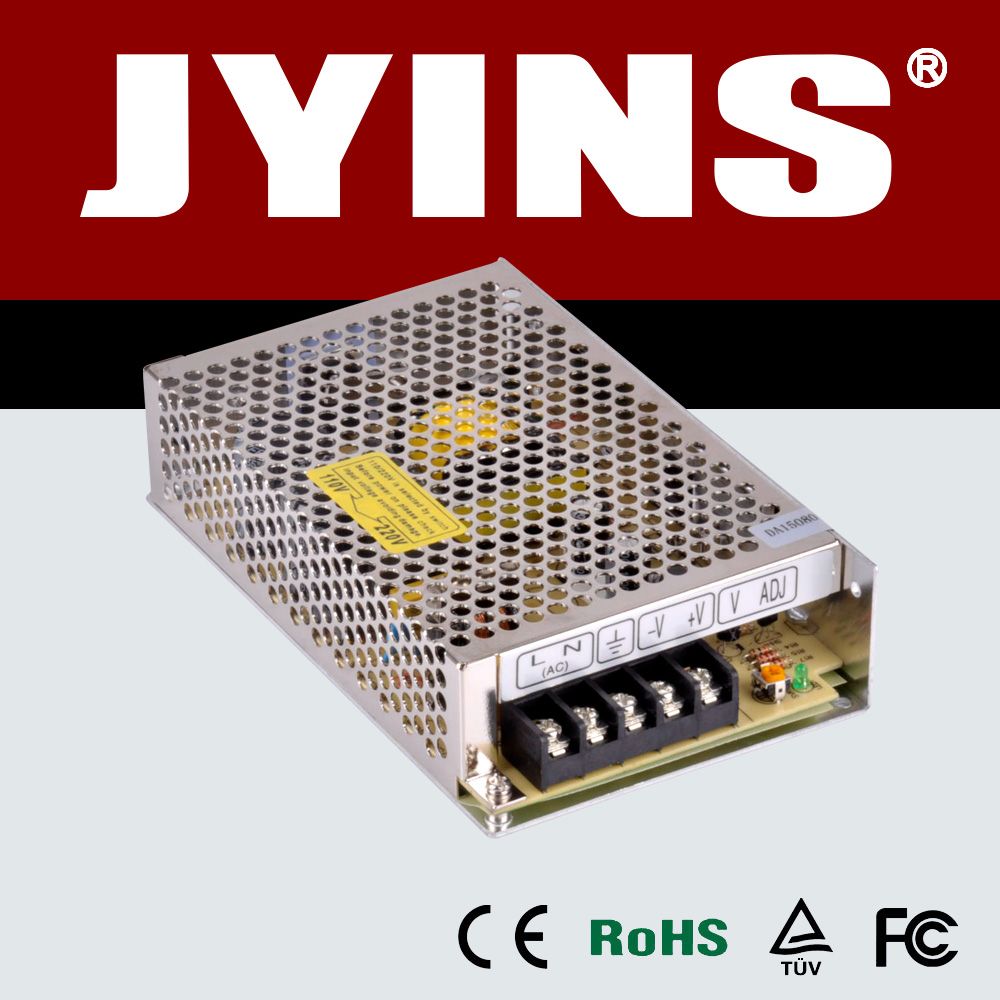

AC to DC Switching Power Supply (SMPS)

AC to DC Switching Power Supply (SMPS)
Price: US $ 7-20/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Detail: According to Your Quantity and Your Requirement
OEM: Accepted
Warranty Time: 18 Months
Color: Metallic
Output Type: Single
Warranty: >2 Years
Output Power: 51 - 100W
Input Voltage: 220V
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Width Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: CE
Brand: Jyins

Product Description

Ac to dc Switching Power Supply (SMPS)

Features:
1) AC input range selected by switch.
2) Protections: Short circuit/Over load.
3) Cooling by free air convection.
4) 100% full load burn-in.
5) Lost cost.
6) High reliability.

AC/DC DC/DC Switching Power Supply

1. INPUT: 85 ~ 132VAC / 170 ~ 264VAC selected by switch 240 ~ 370VDC 47 ~ 63Hz
2. SETUP, RISE, HOLD TIME: 200ms, 100ms, 30ms
3. WORKING TEMP.: -10 ~ +60 C 20 ~ 90% RH
4: WITHSTAND VOLTAGE: I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
5. ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
6. DIMENSION: 99*97*36mm (L*W*H)
7. PACKING: 0.32Kg; 60PCS/19.3Kg/0.57CUFT

Apply to the automatic controlled field. Such as LED screen, industrial control equipment, communications equipment and instrument&meter etc.

If you want to know more information about our items please visit our website.
OUTPUT
MODEL S-15-5 S-15-12 S-15-24
DC VOLTAGE 5V 12V 24V
RATED CURRENT 3A 1.3A 0.7A
RIPPLE & NOISE 50MVP-p 50MVP-p 100MVP-p

Packing: Standard export packing

HS Code: 85044014
Trademark: JYINS
Model: S-15
Standard: CE, RoHS compliant
Productivity: 15000PCS/year
Origin: Wenzhou
Packing: Standard export packing
Min. Order: 100PCS
S-1500-5/12/15/24/48seriesDC output voltage5v/12v/15v/24v/48v
Rated output current217.5A
DC output power1000W
Adjustable range for DC voltage+/-10%
Overall dimension291*132*132mm
Weight4.75Kgs

DR-30-5/12/15/24/seriesDC output voltage5v/12v/15v/24v
Rated output current3A/2A/2A/1.5A
DC output power15W/24W/30W/35W
Adjustable range for DC voltage4.75-5.5V/10.8-13.2V/13.5-16.5V/21.6-26.4V
Overall dimension78*93*56mm
Weight0.27Kgs
