| Prod Model: |
EKM1-OF |
| Voltage: |
415V |
| Protection Degree: |
IP20 |
| OEM: |
Acceptable |
| Export Market: |
World |
| Quality: |
AAA |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
1 |
| Certification: |
TUV |
Product Description

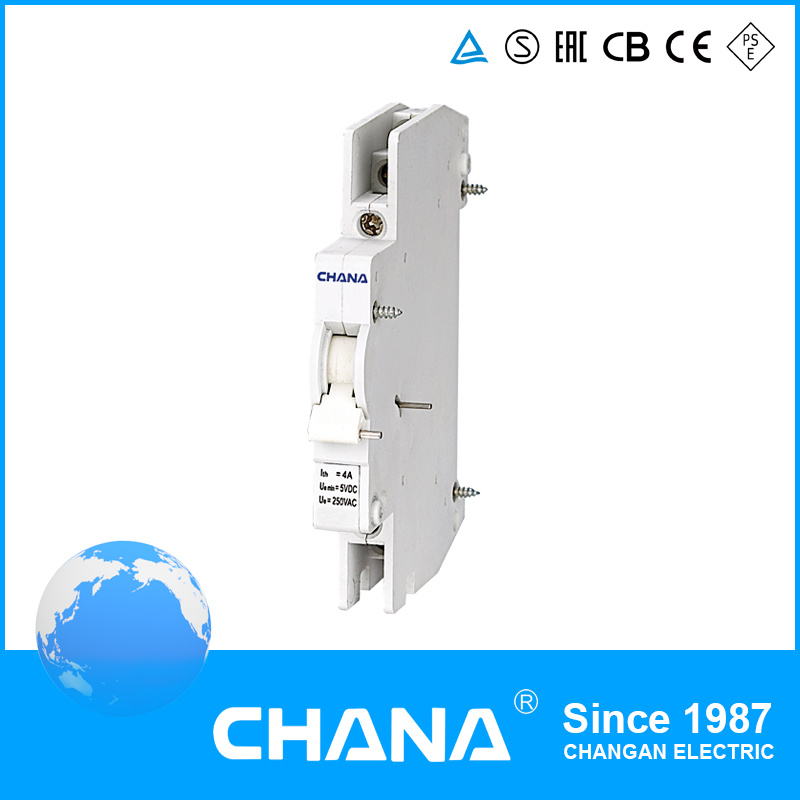

Description For AC415V 400V 50HZ 60Hz MCB 1NO+1NC Auxiliary
Free samples can be provided!!!
Technical Data
1)EKM1-OF&EKM1-FB
Electrical Features
Rated value: A C415 /400V 50/60Hz 3A
A C240 /400V 50/60Hz 3A
D C130V 1A
D C48V 2A
D C24V 6A
Configurations: EKM1-OF 1N/O+1N/C
EKM1-FB 1N/O+1N/C
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Rated short circuit making capacity: 20le, t=0.1s
Dielectric test voltage at ind. Freq. for 1min: 2kV
Insulation voltage Ui: 500V
Pollution degree: 2
Mechanical Features
Electrical life:6,000
Mechanical life:10,000
Protection degree: I P20
Ambient temperature (with daily average≤35ºC):-5ºC...+40ºC
Storage temperation: -25ºC...+70ºC
Installation
Terminal connection type: Cable
Terminal size top/bottom for cable: 2.5mm2 18-13AWG
Tightening torque 0.8 N*m 7In-Ibs.
Item | Data |
| Contact operating | AC: Un=415V In=3A Un=240V In=6A |
| current | DC: Un=130V In=1A Un=48V In=2A Un=24V In=6A |
| Dielectric Properties | Auxiliary contact should bear 2000V, |
| 1 min frequency voltage withstand test. |
| Life | The operating life of auxiliary contact |
| shall never be less than 5000 times. |
2EKM1-MX
Electrical Features
Rated voltage US(V): AC230/400 50/60Hz DC24 DC48 A C24 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Rated short circuit making capacity: 20le, t=0.1s
Dielectric test voltage at ind. Freq. for 1min: 2kV
Insulation voltage Ui: 500V
Pollution degree: 2
Mechanical Features
Electrical life:4,000
Mechanical life:4,000
Protection degree: I P20
Ambient temperature (with daily average≤35ºC):-5ºC...+40ºC
Storage temperation: -25ºC...+70ºC
Installation
Terminal connection type: Cable
Terminal size top/bottom for cable: 2.5mm2 18-13AWG
Tightening torque 0.8 N*m 7In-Ibs.
Dimensions(mm)
