| Prod Model: |
EKM1-MN+MV |
| Rated Frequency: |
50/60Hz |
| Rated Voltage: |
AC230V |
| Rated Insulating Voltage: |
500V |
| Electrical Life: |
4,000 |
| Mechanical Life: |
4,000 |
| Protection Degree: |
IP20 |
| Terminal Connection Type: |
Cable |
| Export Market: |
Global |
| Quality: |
AAA |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
1 |
| Certification: |
TUV |
Product Description

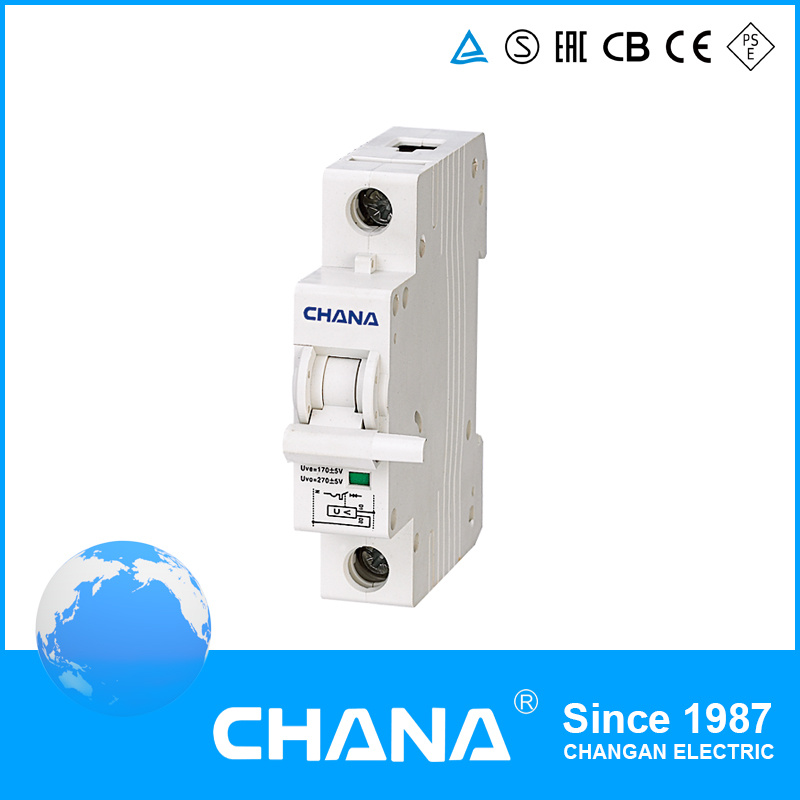

EKM1-MX+MV Over/Under-voltage Tripper
Specification
| Standard | IEC60947-5 |
| Electrical Feature |
| Rated voltage Ue | AC 230V |
| Rated Insulation voltage Ui | 500V |
| Over-voltage tripping range | 280V±5% |
| Under-voltage tripping range | 170V±5% |
| Mounted on the right side of circuit breaker, actuate the combined device to trip in case of under-voltage or over-voltage, effectively prevent the device from closing operation under abnormal power voltage condition. |
| Mechanical Feature |
| Electrical life | 4000 |
| Mechanical life | 4000 |
| Protection degree | IP20 |
| Ambient temperature (with daily average≤ 35º C) | -5 º C...+40 º C |
| Storage temperature | -25 º C...+70 º C |
| Installation |
| Terminal connection type | Cable |
| Terminal size top/bottom for cable | 2.5 18-13AWG |
| Tightening torque | 0.8 N*m 7In-Ibs |
