AC 690V MPCB 0.1A-0.4A Motor Protection Circuit Breaker

Name: AC 690V MPCB 0.1A-0.4A Motor Protection Circuit Breaker
Brand: all-electronics-online.com
SKU: 829400445
Availability: InStock
Rating: 4.9 (36 reviews)

Price:	US $ 6.31-7.20/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CS2-3201
Rated Voltage:	230V~690V
Standard:	IEC/En 60947-2, 60947-4-1
Rated Current:	0.1~0.4A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	3
Certification:	CCC

Product Description

CS2 Motor Protection Circuit Breaker

1. Description

Electric ratings: AC690V, 32A, 80A;
Standard: IEC/EN 60947-2, IEC60947-4-1

2. Operating Conditions

Temperature: -5ºC~+40ºC average temperature in 24 hours not exceed +35ºC
Altitude: not exceed 2000m
Air conditions: At mounting site, relative humidity not exceed 50% at the max temperature of +40ºC, higher relative humidity is allowable under lower temperature, for example, RH could be 90% at +20ºC
Pollution grade: Grade
Release grade: 10A(CS2-32)   10A(CS2-80)
Rated operational system: Continuous operational system
Mounting conditions:
   The inclination between the mounting plane and the vertical plane shall not exceed 5°
   The product shall be installed and operated at a place without obvious shake, Impact and vibration.

3. Technical Data

Model of overload relay	Code	Rated current(A)	Rated ultimate short-circuit breaking capacity lcu(KA)			Rated service short-circuit breaking capacity lcs(KA)			Standard rated power of three-phase motor(KW)
Model of overload relay	Code	Rated current(A)	230/240V	400/415V	660/690V	230/240V	400/415V	660/690V	230/240V	400/415V	660/690V
CS2-32	3201	0.1~0.16	100	100	100	100	100	100	-	-	-
	3202	0.16~0.25	100	100	100	100	100	100	-	-	-
	3203	0.25~0.4	100	100	100	100	100	100	-	-	-
	3204	0.4~0.63	100	100	100	100	100	100	-	-	0.37
	3205	0.63~1	100	100	100	100	100	100	-	-	0.55
	3206	1~1.6	100	100	100	100	100	100	-	-	1.1
	3207	1.6~2.5	100	100	3	100	100	2.25	0.37	0.75	1.5
	3208	2.5~4	100	100	3	100	100	2.25	0.75	1.5	3
	3210	4~6.3	100	100	3	100	100	2.25	1.1	2.2	4
	3214	6~10	100	100	3	100	100	2.25	2.2	4	7.5
	3216	9~14	100	15	3	100	7.5	2.25	3	5.5	9
	3220	13~18	100	15	3	100	7.5	2.25	4	9	11
	3221	17~23	50	15	3	50	6	2.25	5.5	11	15
	3222	20~25	50	15	3	50	6	2.25	5.5	11	18.5
	3232	24~32	50	15	3	50	6	2.25	7.5	12.5	22
CS2-80	8025	16~25	-	15	-	-	7.5	-	5.5	11	-
	8040	25~40	-	15	-	-	7.5	-	11	22	-
	8063	40~63	-	15	-	-	7.5	-	15	33	-
	8080	56~80	-	15	-	-	7.5	-	22	45	-

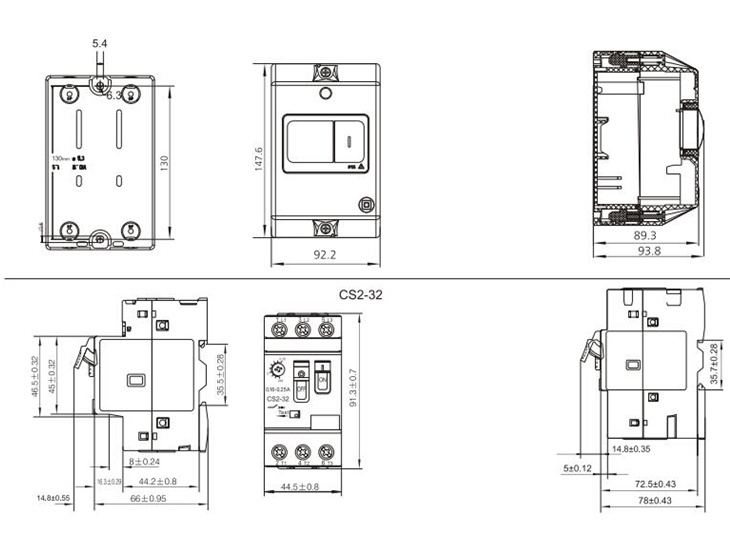

4. Overall and mounting dimensions (mm)

5. Certificate

6. Company Profile

Changan Group Co., Ltd, Established in 1987, comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 30years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,
Contactor, Relay, Switch, Solar Inverter etc..
1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Europe, South America, Mid-east and Africa Market.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
