CS2 Digital Motor Protector Circuit Breaker MPCB

Prod Model:	CS2-3221
Rated Voltage:	AC690V
Rated Current In:	6-10A
Standard:	IEC/En 60947-2 IEC60947-4-1
Export Market:	Global
Quality:	AAA
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Poles Number:	3
Certification:	CE
Structure:	MPCB

Product Description

Description
1.Electric ratings: AC690V, 32A, 80A;
2.Standard: IEC/EN 60947-2, IEC60947-4-1

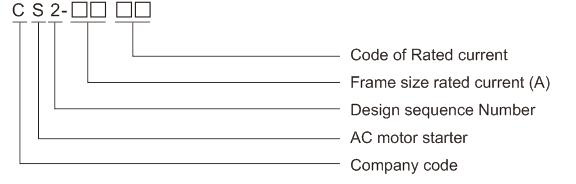

Type Designation

3.Operating Conditions
1.Temperature: -5ºC~+40ºC average temperature in 24 hours not exceed +35ºC
2.Altitude: not exceed 2000m
3.Air conditions: At mounting site, relative humidity not exceed 50% at the max temperature of +40ºC, higher relative humidity is allowable under lower temperature, for example, RH could be 90% at +20ºC
4.Pollution grade: Grade
5.Release grade: 10A(CS2-32)   10A(CS2-80)
6.Rated operational system: Continuous operational system
7.Mounting conditions:
   The inclination between the mounting plane and the vertical plane shall not exceed 5°
   The product shall be installed and operated at a place without obvious shake, Impact and vibration.

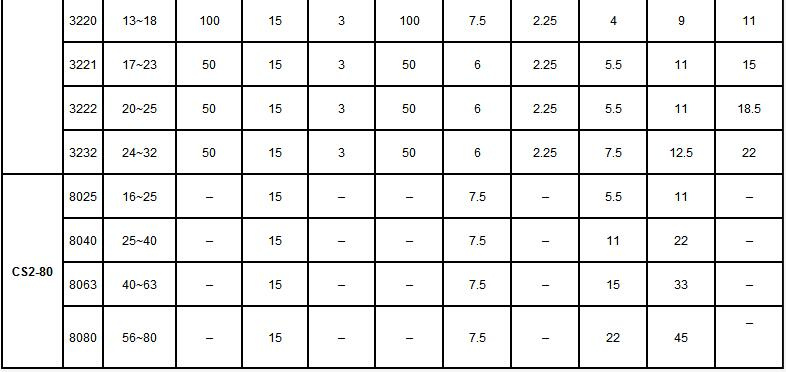

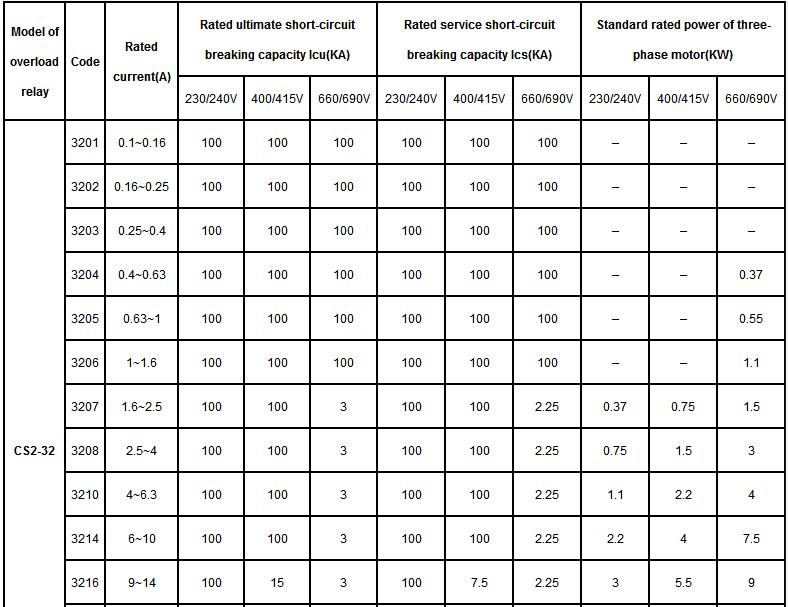

4.Technical Data

Model of overload relay	Code	Rated current(A)	Rated ultimate short-circuit breaking capacity lcu(KA)			Rated service short-circuit breaking capacity lcs(KA)			Standard rated power of three-phase motor(KW)
			230/240V	400/415V	660/690V	230/240V	400/415V	660/690V	230/240V	400/415V	660/690V
CS2-32	3201	0.1~0.16	100	100	100	100	100	100	-	-	-
	3202	0.16~0.25	100	100	100	100	100	100	-	-	-
	3203	0.25~0.4	100	100	100	100	100	100	-	-	-
	3204	0.4~0.63	100	100	100	100	100	100	-	-	0.37
	3205	0.63~1	100	100	100	100	100	100	-	-	0.55
	3206	1~1.6	100	100	100	100	100	100	-	-	1.1
	3207	1.6~2.5	100	100	3	100	100	2.25	0.37	0.75	1.5
	3208	2.5~4	100	100	3	100	100	2.25	0.75	1.5	3
	3210	4~6.3	100	100	3	100	100	2.25	1.1	2.2	4
	3214	6~10	100	100	3	100	100	2.25	2.2	4	7.5
	3216	9~14	100	15	3	100	7.5	2.25	3	5.5	9
	3220	13~18	100	15	3	100	7.5	2.25	4	9	11
	3221	17~23	50	15	3	50	6	2.25	5.5	11	15
	3222	20~25	50	15	3	50	6	2.25	5.5	11	18.5
	3232	24~32	50	15	3	50	6	2.25	7.5	12.5	22
CS2-80	8025	16~25	-	15	-	-	7.5	-	5.5	11	-
	8040	25~40	-	15	-	-	7.5	-	11	22	-
	8063	40~63	-	15	-	-	7.5	-	15	33	-
	8080	56~80	-	15	-	-	7.5	-	22	45	-
