Ce CB Approved Motor Protection Circuit Breaker 16A-25A MPCB

Name: Ce CB Approved Motor Protection Circuit Breaker 16A-25A MPCB
Brand: all-electronics-online.com
SKU: 829400825
Availability: InStock
Rating: 4.3 (34 reviews)

Price:	US $ 6.36-7.21/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CS2-8025
Rated Current:	016~25A
Rated Voltage:	230V~690V
Standard:	IEC/En 60947-2, 60947-4-1
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	3
Certification:	CCC

Product Description

CS2 Motor Protection Circuit Breaker

1. Description

Electric ratings: AC690V, 32A, 80A;
Standard: IEC/EN 60947-2, IEC60947-4-1

2. Operating Conditions

Temperature: -5ºC~+40ºC average temperature in 24 hours not exceed +35ºC
Altitude: not exceed 2000m
Air conditions: At mounting site, relative humidity not exceed 50% at the max temperature of +40ºC, higher relative humidity is allowable under lower temperature, for example, RH could be 90% at +20ºC
Pollution grade: Grade
Release grade: 10A(CS2-32)   10A(CS2-80)
Rated operational system: Continuous operational system
Mounting conditions:
   The inclination between the mounting plane and the vertical plane shall not exceed 5°
   The product shall be installed and operated at a place without obvious shake, Impact and vibration.

3.Technical Data

Model of overload relay	Code	Rated current(A)	Rated ultimate short-circuit breaking capacity lcu(KA)			Rated service short-circuit breaking capacity lcs(KA)			Standard rated power of three-phase motor(KW)
Model of overload relay	Code	Rated current(A)	230/240V	400/415V	660/690V	230/240V	400/415V	660/690V	230/240V	400/415V	660/690V
CS2-32	3201	0.1~0.16	100	100	100	100	100	100	-	-	-
	3202	0.16~0.25	100	100	100	100	100	100	-	-	-
	3203	0.25~0.4	100	100	100	100	100	100	-	-	-
	3204	0.4~0.63	100	100	100	100	100	100	-	-	0.37
	3205	0.63~1	100	100	100	100	100	100	-	-	0.55
	3206	1~1.6	100	100	100	100	100	100	-	-	1.1
	3207	1.6~2.5	100	100	3	100	100	2.25	0.37	0.75	1.5
	3208	2.5~4	100	100	3	100	100	2.25	0.75	1.5	3
	3210	4~6.3	100	100	3	100	100	2.25	1.1	2.2	4
	3214	6~10	100	100	3	100	100	2.25	2.2	4	7.5
	3216	9~14	100	15	3	100	7.5	2.25	3	5.5	9
	3220	13~18	100	15	3	100	7.5	2.25	4	9	11
	3221	17~23	50	15	3	50	6	2.25	5.5	11	15
	3222	20~25	50	15	3	50	6	2.25	5.5	11	18.5
	3232	24~32	50	15	3	50	6	2.25	7.5	12.5	22
CS2-80	8025	16~25	-	15	-	-	7.5	-	5.5	11	-
	8040	25~40	-	15	-	-	7.5	-	11	22	-
	8063	40~63	-	15	-	-	7.5	-	15	33	-
	8080	56~80	-	15	-	-	7.5	-	22	45	-

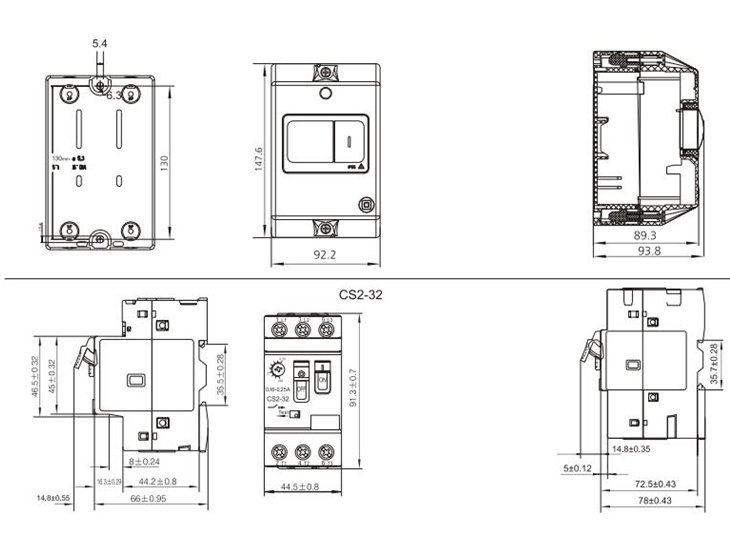

4. Overall and mounting dimensions (mm)

5. Feature Product

6. Our Services

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B.After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.

C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.

Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!

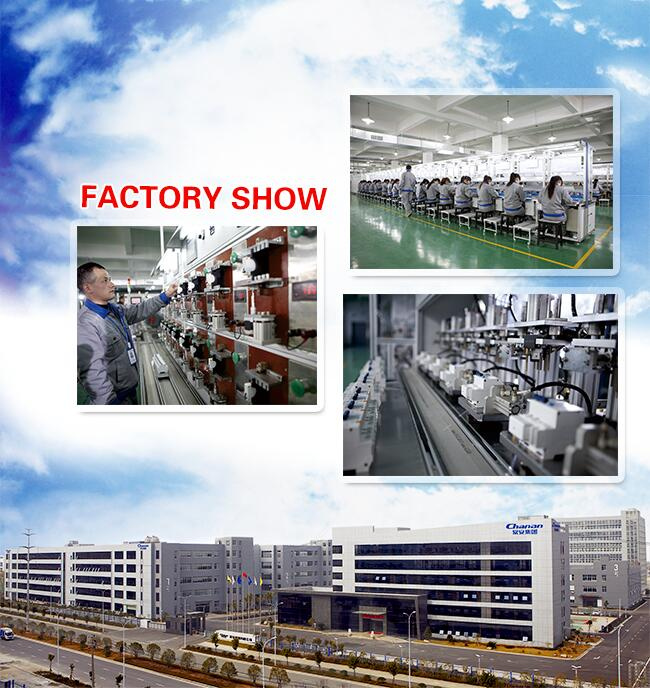

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

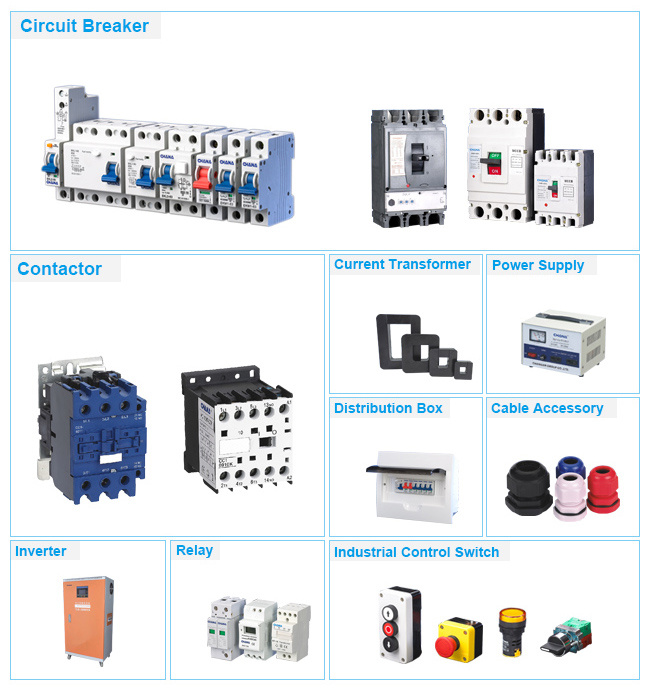

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
