| Prod Model: |
CS2-3202 |
| Rated Current: |
0.1~0.4A |
| Rated Voltage: |
230V~690V |
| Standard: |
IEC/En 60947-2, 60947-4-1 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description

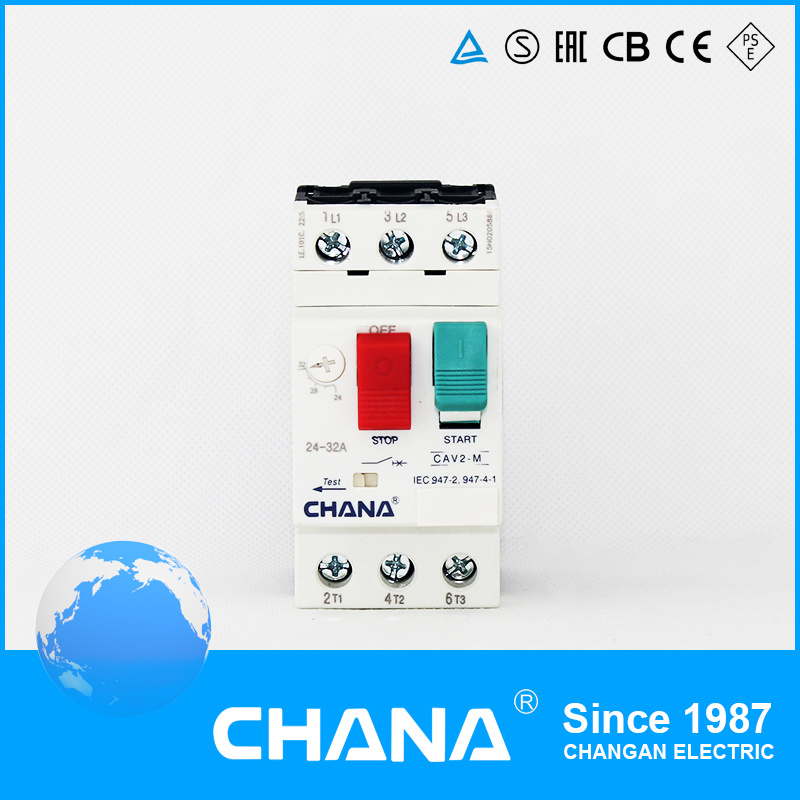

CS2 Motor Protection Circuit Breaker1. DescriptionElectric ratings: AC690V, 32A, 80A;Standard: IEC/EN 60947-2, IEC60947-4-12. Operating Conditions Temperature: -5ºC~+40ºC average temperature in 24 hours not exceed +35ºCAltitude: not exceed 2000m
Air conditions: At mounting site, relative humidity not exceed 50% at the max temperature of +40ºC, higher relative humidity is allowable under lower temperature, for example, RH could be 90% at +20ºC
Pollution grade: Grade Release grade: 10A(CS2-32) 10A(CS2-80)
Rated operational system: Continuous operational system
Mounting conditions:
The inclination between the mounting plane and the vertical plane shall not exceed 5°
The product shall be installed and operated at a place without obvious shake, Impact and vibration. 4.Technical Data | Model of overload relay | Code | Rated current(A) | Rated ultimate short-circuit breaking capacity lcu(KA) | Rated service short-circuit breaking capacity lcs(KA) | Standard rated power of three-phase motor(KW) |
| 230/240V | 400/415V | 660/690V | 230/240V | 400/415V | 660/690V | 230/240V | 400/415V | 660/690V |
| CS2-32 | 3201 | 0.1~0.16 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | - |
| 3202 | 0.16~0.25 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | - |
| 3203 | 0.25~0.4 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | - |
| 3204 | 0.4~0.63 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | 0.37 |
| 3205 | 0.63~1 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | 0.55 |
| 3206 | 1~1.6 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | 1.1 |
| 3207 | 1.6~2.5 | 100 | 100 | 3 | 100 | 100 | 2.25 | 0.37 | 0.75 | 1.5 |
| 3208 | 2.5~4 | 100 | 100 | 3 | 100 | 100 | 2.25 | 0.75 | 1.5 | 3 |
| 3210 | 4~6.3 | 100 | 100 | 3 | 100 | 100 | 2.25 | 1.1 | 2.2 | 4 |
| 3214 | 6~10 | 100 | 100 | 3 | 100 | 100 | 2.25 | 2.2 | 4 | 7.5 |
| 3216 | 9~14 | 100 | 15 | 3 | 100 | 7.5 | 2.25 | 3 | 5.5 | 9 |
| 3220 | 13~18 | 100 | 15 | 3 | 100 | 7.5 | 2.25 | 4 | 9 | 11 |
| 3221 | 17~23 | 50 | 15 | 3 | 50 | 6 | 2.25 | 5.5 | 11 | 15 |
| 3222 | 20~25 | 50 | 15 | 3 | 50 | 6 | 2.25 | 5.5 | 11 | 18.5 |
| 3232 | 24~32 | 50 | 15 | 3 | 50 | 6 | 2.25 | 7.5 | 12.5 | 22 |
| CS2-80 | 8025 | 16~25 | - | 15 | - | - | 7.5 | - | 5.5 | 11 | - |
| 8040 | 25~40 | - | 15 | - | - | 7.5 | - | 11 | 22 | - |
| 8063 | 40~63 | - | 15 | - | - | 7.5 | - | 15 | 33 | - |
| 8080 | 56~80 | - | 15 | - | - | 7.5 | - | 22 | 45 | - |

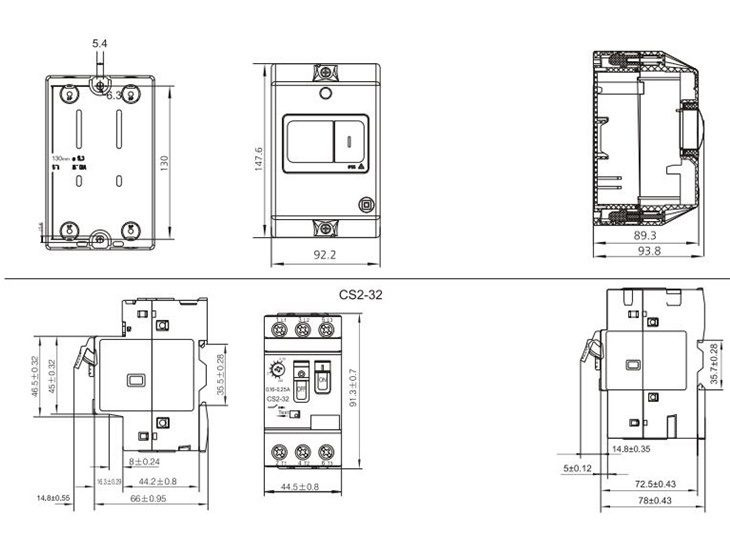

5.Overall and mounting dimensions (mm)
