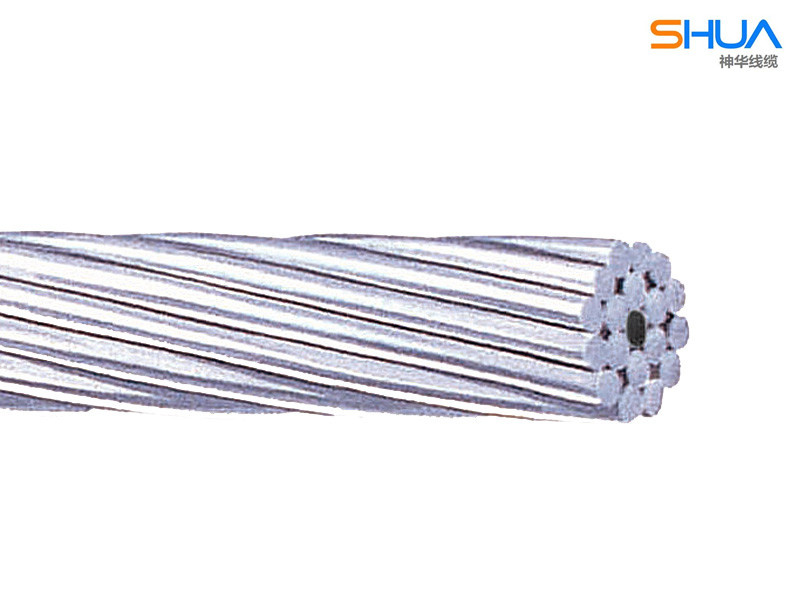

ACSR Steel Core Bare Aluminum Cable

Name: ACSR Steel Core Bare Aluminum Cable
Brand: all-electronics-online.com
SKU: 732324975
Availability: InStock
Rating: 4.5 (65 reviews)

Price:	US $ 0.1/Meter
Trade Terms:	FOB
Min Order:	100/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ACSR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	as Your Requests
Delivery Details:	15 Days or Depend on Your Quantity
Type:	Bare
Conductor Type:	Stranded
Application:	Heating
Conductor Material:	Aluminum
Insulation Material:	Bare
Certification:	CCC

Product Description

General description
1350-H19 alloy bare aluminum clad steel reinforced cable, hard drawn, galvanized steel core, ACSR.

Specifications
Viakons bare aluminum clad steel reinforced cables with galvanized steel core, ACSR, meet the following specifications:

NOM-063-SCFI Electrical Products - conductors - safety requirements.
NMX-J-058 Concentric Lay stranded Aluminum cable and steel core (ACSR).
ASTM B-232 Concentric Lay Stranded Aluminum Conductors, Coated Steel Reinforced.
Main applications
ACSR cables are used for long distance electrical power transmission and overhead primary or secondary distribution lines.
ACSR cables can also be insulated or semi-insulated when used in wooded areas.

Characteristics

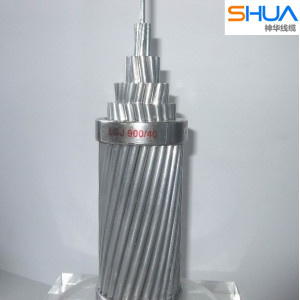

ACSR cables are concentric lay stranded with galvanized steel core.
Aluminum alloy 1350-H19 wires, concentrically stranded over a steel core, hard drawn.
Sizes are 8.367 to 901.9 mm2 (8 AWG to 1590 kcmil).
Packaged on wood reels.

Advantages
The light weight of aluminum, in comparison to coppers weight, reduces the cost of handling, fixtures, posts, etc.
Galvanized steel core is used to support mechanical tensions.

No existen especificaciones té Cnicas para este producto.
AAC Bare Aluminum Wires and Cables ACSR/AS Steel Core Bare Aluminum Cable Bare Copper Cable
Bare Copper Wire Cable for Lightning Arrester Galvanized Steel Cable Guy Common Grade
Highly Resistant Galvanized Steel Cable

The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...

The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.

We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
