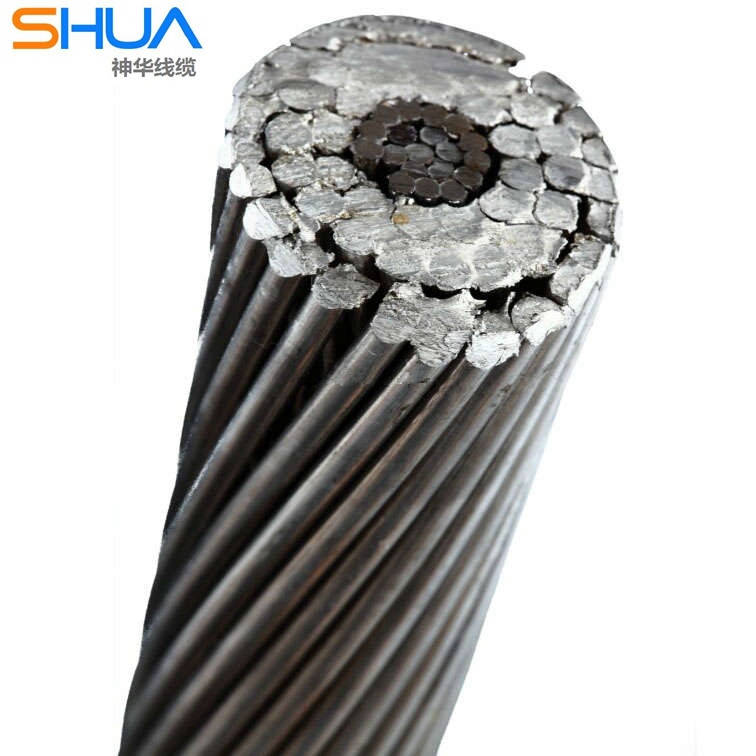

| Prod Model: |
ACSR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
According to Your Requirements |
| MOQ: |
100m |
| Packing Details: |
Wooden Drums or Iron-Wooden Drum |
| Delivery Detail: |
Within 15 Days or Based on Your Quantity |
| Type: |
Bare |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Aluminum |
| Insulation Material: |
Bare |
| Certification: |
CCC |
Product Description
1. Application:
This kind of cable could be used in security or alarm device installation or in low voltage applications such as telephone extensions and cirsuits.
2. Standard:
Our products could be designed to comply with IEC standard or CE, DIN, VDE, BS, AS, GB, NZS, GOST, NFC, UL, ANSI standards as customer's request.
3. Product Features:
1) Min. Ambient temperature for installation: -90 ° C
2) Max. Normal continuous operating temperature: 250° C
3) Max. Permissible conductor temperature at short circuit (5s. At longest): 250° C
4) Permissible bending radius:
Single core: ≥ 20(d+D)± 5%
Three core: ≥ 15(d+D)± 5%
| ASTM-B 232/B 232M METRIC UNITS | Code Name | Size | Stranding |
| No |
| AWG-MCM | Al. | Steel |
| TURKEY | 6 | 6 | 1 |
| SWAN | 4 | 6 | 1 |
| SWANATE | 4 | 7 | 1 |
| SPARROW | 2 | 6 | 1 |
| SPARATE | 2 | 7 | 1 |
| ROBIN | 1 | 6 | 1 |
| RAVEN | 1/0 | 6 | 1 |
| QUAIL | 2/0 | 6 | 1 |
| PIGEON | 3/0 | 6 | 1 |
| PENGUIN | 4/0 | 6 | 1 |
| WAXWING | 266,8 | 18 | 1 |
| PARTRIDGE | 266,8 | 26 | 7 |
| ORSTRICH | 300 | 26 | 7 |
| MERLIN | 336,4 | 18 | 1 |
| LINNET | 336,4 | 26 | 7 |
| ORIOLE | 336,4 | 30 | 7 |
| CHICKADEE | 397,5 | 18 | 1 |
| BRANT | 397,5 | 24 | 7 |
| IBIS | 397,5 | 26 | 7 |
| LARK | 397,5 | 30 | 7 |
| PALICAN | 477 | 18 | 1 |
| FLICKER | 477 | 26 | 7 |
| HAWK | 477 | 26 | 7 |
| HEN | 477 | 30 | 7 |
| OSPREY | 556,5 | 18 | 1 |
| PARAKEET | 556,5 | 24 | 7 |
| DOVE | 556,5 | 26 | 7 |
| EAGLE | 556,5 | 27 | 7 |
| PEACOCK | 605 | 24 | 7 |
| SQUAB | 605 | 26 | 7 |
| WOODDUCK | 605 | 30 | 7 |
| TEAL | 605 | 30 | 19 |
| KINGBIRD | 636 | 18 | 1 |
| ROOK | 636 | 24 | 7 |
| GROSBEAK | 636 | 26 | 7 |
| SCOTER | 636 | 30 | 7 |
| EGRET | 636 | 30 | 19 |
| SWIFT | 636 | 36 | 1 |
| FLAMINGO | 666,6 | 24 | 7 |
| GANNET | 666,6 | 26 | 7 |
| STILT | 715,5 | 24 | 7 |
| STARLING | 715,5 | 26 | 7 |
| REDWING | 715,5 | 30 | 19 |
| CUCKOO | 795 | 24 | 7 |
| DRAKE | 795 | 26 | 7 |
| COOT | 795 | 36 | 1 |
| TERN | 795 | 45 | 7 |
| CONDOR | 795 | 54 | 7 |
| MALLARD | 795 | 30 | 19 |
| RUDDY | 900 | 45 | 7 |
| CANARY | 900 | 54 | 7 |
| CATBIRD | 954 | 36 | 1 |
| RAIL | 954 | 45 | 7 |
| CARDINAL | 954 | 54 | 7 |
| TANAGER | 1.033,5 | 36 | 1 |
| ORTOLAN | 1.033,5 | 45 | 7 |
| CURLEVV | 1.033,5 | 54 | 7 |
| BLUEJAY | 1.113,0 | 45 | 7 |
| FINCH | 1.113,0 | 54 | 19 |
| BUNTING | 1.192,5 | 45 | 7 |
| GRACKLE | 1.192,5 | 54 | 19 |
| SKYLARK | 1.272,0 | 36 | 1 |
| BITTERN | 1.272,0 | 45 | 7 |
| PHEASANT | 1.272,0 | 54 | 19 |
| DIPPERF | 1.351,5 | 45 | 7 |
| MARTIN | 1.351,5 | 54 | 19 |
| BOBOLINK | 1.431,0 | 45 | 7 |
| PLOVER | 1.431,0 | 54 | 19 |
| NUTHATCH | 1.510,5 | 45 | 7 |
| PARROT | 1.510,5 | 54 | 19 |
| LAPWING | 1.590,0 | 45 | 7 |
| FALCON | 1.590,0 | 54 | 19 |
| CHUKAR | 1.780,0 | 84 | 19 |
| BLUEBIRD | 2.156,0 | 84 | 19 |
| KIWI | 2.167,0 | 72 | 7 |
| THRASHER | 2.312,8 | 76 | 19 |
| GROUSE | 80,0 | 8 | 1 |
| PETREL | 101,8 | 12 | 7 |
| MINORCA | 110,8 | 12 | 7 |
| LEGHORN | 134,6 | 12 | 7 |
| GUINEA | 159,0 | 12 | 7 |
| DOTTEREL | 176,9 | 12 | 7 |
| DORKING | 190,8 | 12 | 12 |
| BRAHMA | 203,2 | 12 | 19 |
| COCHIN | 211,3 | 12 | 7 |
| AS 3607 ACSR/GZ | Code Name | Stranding and wire diameter no | Cross- sectional area |
|
| Aluminium | Steel | mm2 |
| Almond | 6 | 1 | 34.4 |
| Apricot | 6 | 1 | 41.6 |
| Apple | 6 | 1 | 49.5 |
| Banana | 6 | 1 | 77.3 |
| Cherry | 6 | 7 | 120 |
| Grape | 30 | 7 | 182 |
| Lemon | 30 | 7 | 262 |
| Lychee | 30 | 7 | 307 |
| Lime | 30 | 7 | 356 |
| Mango | 54 | 7 | 431 |
| Orange | 54 | 7 | 506 |
| Olive | 54 | 7 | 587 |
| Pawpaw | 54 | 19 | 672 |
| Quince | 3 | 4 | 16.8 |
| Raisin | 3 | 4 | 34.4 |
| Sultana | 4 | 3 | 49.5 |
| Walnut | 4 | 3 | 77.3 |
| IEC 61089 | Code Name | Area | Number of Wires |
| Total |
| mm 2 | Al | St |
| 16 | 18.7 | 6 | 1 |
| 25 | 29.2 | 6 | 1 |
| 40 | 46.7 | 6 | 1 |
| 63 | 73.5 | 6 | 1 |
| 100 | 117 | 6 | 1 |
| 125 | 132 | 18 | 1 |
| 125 | 145 | 26 | 7 |
| 160 | 169 | 18 | 1 |
| 160 | 186 | 26 | 7 |
| 200 | 211 | 18 | 1 |
| 200 | 233 | 26 | 7 |
| 250 | 275 | 22 | 7 |
| 250 | 291 | 26 | 7 |
| 315 | 337 | 45 | 7 |
| 315 | 366 | 26 | 7 |
| 400 | 428 | 45 | 7 |
| 400 | 452 | 54 | 7 |
| 450 | 481 | 45 | 7 |
| 450 | 508 | 54 | 7 |
| 500 | 535 | 45 | 7 |
| 500 | 565 | 54 | 7 |
| 560 | 599 | 45 | 7 |
| 560 | 631 | 54 | 19 |
| 630 | 674 | 45 | 7 |
| 630 | 710 | 54 | 19 |
| 710 | 759 | 45 | 7 |
| 710 | 800 | 54 | 19 |
| 800 | 835 | 72 | 7 |
| 800 | 867 | 84 | 7 |
| 800 | 901 | 54 | 19 |
| 900 | 939 | 72 | 7 |
| 900 | 975 | 84 | 7 |
| 1000 | 1043 | 72 | 7 |
| 1120 | 1167 | 72 | 19 |
| 1120 | 1211 | 84 | 19 |
| 1250 | 1352 | 84 | 19 |
| 1250 | 1303 | 72 | 19 |
| DIN 48 204 | Code Name | Section | Stranding |
| mm2 | No |
| Total | Al | Steel |
| 16/2,5 | 17,85 | 6 | 1 |
| 25/4 | 27,8 | 6 | 1 |
| 35/6 | 40,0 | 6 | 1 |
| 44/32 | 75,7 | 14 | 7 |
| 50/8 | 56,3 | 6 | 1 |
| 50/30 | 81,0 | 12 | 7 |
| 70/12 | 81,3 | 26 | 7 |
| 95/15 | 109,7 | 26 | 7 |
| 95/55 | 152,8 | 12 | 7 |
| 105/75 | 181,5 | 14 | 19 |
| 120/20 | 141,4 | 26 | 7 |
| 120/70 | 193,3 | 12 | 7 |
| 125/30 | 157,7 | 30 | 7 |
| 150/25 | 173,1 | 26 | 7 |
| 170/40 | 211,9 | 30 | 7 |
| 185/30 | 213,6 | 26 | 7 |
| 210/35 | 243,2 | 26 | 7 |
| 210/50 | 261,6 | 30 | 7 |
| 230/30 | 260,7 | 24 | 7 |
| 240/40 | 282,5 | 26 | 7 |
| 265/35 | 297,8 | 24 | 7 |
| 300/50 | 353,7 | 26 | 7 |
| 305/40 | 344,1 | 54 | 7 |
| 340/30 | 369,1 | 48 | 7 |
| 380/50 | 431,5 | 54 | 7 |
| 385/35 | 420,1 | 48 | 7 |
| 435/55 | 490,6 | 54 | 7 |
| 450/40 | 488,2 | 48 | 7 |
| 490/65 | 553,9 | 54 | 7 |
| 495/35 | 528,2 | 45 | 7 |
| 510/45 | 555,5 | 48 | 7 |
| 550/70 | 621,3 | 54 | 7 |
| 560/50 | 611,2 | 48 | 7 |
| 570/40 | 610,7 | 45 | 7 |
| 650/45 | 698,8 | 45 | 7 |
| 680/85 | 764,6 | 54 | 19 |
| 1,045/45 | 1.090,9 | 72 | 7 |
| BS 215-2/BS EN 50182 | Code Name | Section | Stranding No. |
| mm2 | Al | Steel |
| MOLE | 12.37 | 6 | 1 |
| SQUIRREL | 24.5 | 6 | 1 |
| GOPHER | 30.57 | 6 | 1 |
| WEASEL | 36.87 | 6 | 1 |
| FOX | 42.81 | 6 | 1 |
| FERRET | 49.47 | 6 | 1 |
| RABBIT | 61.71 | 6 | 1 |
| MINK | 73.6 | 6 | 1 |
| SKUNK | 100.1 | 12 | 7 |
| BEAVER | 87.5 | 6 | 1 |
| HORSE | 116.2 | 12 | 7 |
| RACOON | 91.9 | 6 | 1 |
| OTTER | 97.9 | 6 | 1 |
| CAT | 111.3 | 6 | 1 |
| HARE | 122.5 | 6 | 1 |
| DOG | 118.6 | 6 | 7 |
| COYOTE | 151.8 | 26 | 7 |
| COUGAR | 138.81 | 18 | 1 |
| TIGER | 161.8 | 30 | 7 |
| WOLF | 195 | 30 | 7 |
| DINGO | 167.51 | 18 | 1 |
| LYNX | 226.2 | 30 | 7 |
| CARACAL | 194.4 | 18 | 1 |
| PANTHER | 261.6 | 30 | 7 |
| JAGUAR | 222.3 | 18 | 1 |
| LION | 293.9 | 30 | 7 |
| BEAR | 326.1 | 30 | 7 |
| GOAT | 400 | 30 | 7 |
| SHEEP | 462.6 | 30 | 7 |
| ANTELOPE | 422.6 | 54 | 7 |
| BISON | 431.2 | 54 | 7 |
| DEER | 529.8 | 30 | 7 |
| ZEBRA | 484.5 | 54 | 7 |
| ELK | 588.4 | 30 | 7 |
| CAMEL | 537.7 | 54 | 7 |
| MOOSE | 597 | 54 | 7 |
| KEZIAH | 226.2 | 30 | 7
|
