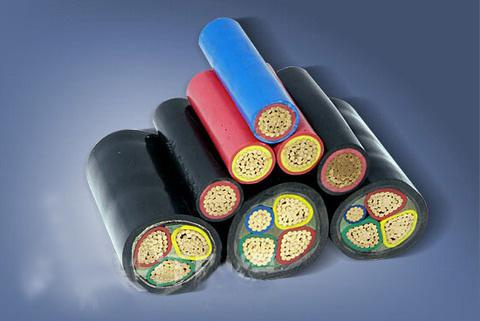

PVC or XLPE Insulated Power Cable

Name: PVC or XLPE Insulated Power Cable
Brand: all-electronics-online.com
SKU: 756565415
Availability: InStock
Rating: 4.3 (100 reviews)

Price:	US $ 0.15-60/Piece
Trade Terms:	FOB,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Anhui, China (Mainland)
Brand Name:	Shua
Conductor Material:	Aluminum
Jacket:	PVC, XLPE, PE
Main Products:	Power Cable, Electrical
Application:	Power Station
Certification:	CE
Brand:	Shenhua
Voltage:	1kv to 35kv
Insulation Material:	: XLPE, PE, PVC or HDPE

Product Description

Packaging & Delivery

Packaging Details:	International wooden drum, wooden-steel drum, or as required
Delivery Detail:	20 days

Product Description
xlpe insulated copper conductor 32kv power cable
Standard

IEC 60502, BS 6622/BS 7538, VDE 0276

Construction

Conductor, Conductor Screen, Insulation, Insulation Screen, Metallic Layer, Separation Sheath (for armoured cable), Lapped Bedding (for armoured lead sheathed cable), Armour (for armoured cable), Oversheath.

Nominal Section:

Area(mm2) :1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2

Features:
XLPE insulated power cable do not has excellent electric, mechanical properties,but also has powerful resistance against chemical corrosion,heat resistance and enviromental stress resistance. Its structure is simple. The long period operating temperature is +90 °C. It is conveninet to use and can be laid with no restriction of different level.

Types:
xlpe insulated copper conductor 32kv power cable

China Type		Description	Application
Cu	Al	Description	Application
YJV	YJLV	XLPE insulation PVC sheath power cable (Cu/XLPE/PVC)	To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside
YJY	YJLY	XLPE insulation PE sheath power cable (Cu/XLPE/PE)
YJV22	YJLV22	XLPE insulation, steel tape armor, PVC sheath power cable (Cu/XLPE/PVC/STA/PVC)	To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force.
YJV23	YJLV23	XLPE insulation, steel tape armor, PE sheath power cable (Cu/XLPE/PVC/STA/PE)
YJV62	YJLV62	XLPE insulation, no magnetism steel tape armor, PE sheath power cable
YJV32	YJLV32	XLPE insulation, thin steel-wire armor, PVC sheath power cable (Cu/XLPE/PVC/SWA/PVC)	Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint .
YJV72	YJLV72	XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable
YJV42	YJLV42	XLPE insulation, thick steel-wire armor, PVC sheath power cable	Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint.

The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...

The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.

We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
