Acss Conductor (Aluminum Conductor. Steel Supported.) , Acss Cable

Name: Acss Conductor (Aluminum Conductor. Steel Supported.) , Acss Cable
Brand: all-electronics-online.com
SKU: 684019301
Availability: InStock
Rating: 4.5 (118 reviews)

Price:	US $ 1000/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	acss
Color:	as Per Your Request
Sample:	as Per Your Customers' Request
Core Material:	Steel or Zinc Coated Steel
Type:	Bare
Conductor Type:	Stranded
Application:	Overhead
Conductor Material:	Aluminum
Insulation Material:	Bare
Certification:	ISO9001
Sheath Material:	No
Brand:	Huatong

Product Description

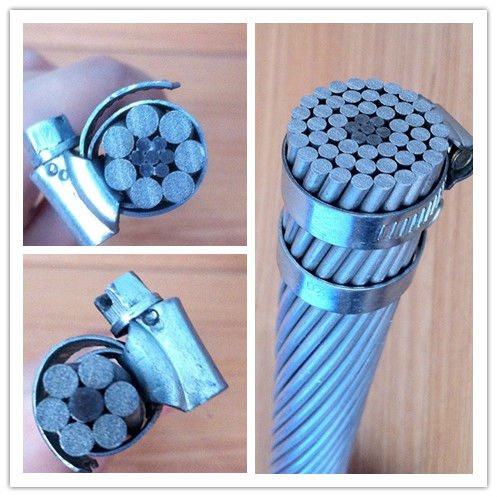

ACSS :Aluminum Conductor. Steel Supported.
STANDARDS
ACSS conductor meets or exceeds the following ASTM standards:
l      B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced.

l      B-500 Metallic Coated Stranded Steel Core For Aluminum Conductors, Steel Reinforced.

l      B-609 Aluminum1350 round Wire, Annealed and Intermediate Tempers, for Electrical Purposes

l      B-802 Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum Conductors, Steel

Reinforced.

l      B-803 High-Strength Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum and

Aluminum-Alloy Conductors, Steel Reinforced.

l      B-856 Concentric-Lay-Stranded Aluminum Conductors, Coated Steel Supported(ACSS)

Applications

ACSS is used for overhead distribution and transmission lines. It is designed to operate continuously at elevated temperatures up to 250°C without loss of strength; it sags less than a comparable ACSR under electrical loadings; it is self-damping if prestretched during installation; and its final sags are not affected by long term creep of aluminum. The advantages make ACSS especially useful in reconductoring applications requiring increased current with existing tensions and clearances, new line applications where structures can be economized because of reduced conductor sag, new line applications requiring high emergency loadings, and lines where aeolian vibration is a problem.
ASTM B856

Code word (ACSS)	Size (kcmil)	Strand- ing (Al/St)	Diameter(in)				Weight per1000 ft(lb)	Rated strength			Resistance Ω/1000ft		Ampacity at 200Ω (AMPS)
			Individual wire		Steel core	Comp. cable		Standard strength Lbs	High strength Lbs	HS285** strength Lbs	DC at 20ºC	AC at 75ºC
			Al	Steel	Steel core	Comp. cable		Standard strength Lbs	High strength Lbs	HS285** strength Lbs	DC at 20ºC	AC at 75ºC
Partridge	266.8	26/7	0.1013	0.0788	0.2363	0.642	366.8	8880	9730	11400	.0619	.0761	812
Junco	266.8	30/7	0.0943	0.0943	0.2829	0.660	417.4	11700	13000	15200	.0615	.0756	822
Ostrich	300.0	26/7	0.1074	0.0835	0.2506	0.680	412.4	10000	10900	12800	.0551	.0677	877
Linnet	336.4	26/7	0.1137	0.0885	0.2654	0.720	462.5	11200	12300	14400	.0491	.0604	945
Oriole	336.4	30/7	0.1059	0.1059	0.3177	0.741	526.3	14800	16300	19100	.0488	.0600	957
Brant	397.5	24/7	0.1287	0.0858	0.2574	0.772	511.4	11000	12100	14100	.0417	.0514	1047
Lbis	397.5	26/7	0.1236	0.0962	0.2885	0.783	546.5	13000	14200	16500	.0416	.0512	1054
Lark	397.5	30/7	0.1151	0.1151	0.3453	0.806	621.9	17500	19300	22600	.0413	.0508	1068
Flicker	477	24/7	0.1410	0.0940	0.2819	0.846	613.6	13000	14200	16400	.0348	.0429	1180
Hawk	477	26/7	0.1354	0.1053	0.3160	0.858	655.8	15600	17100	19800	.0346	.0427	1188
Hen	477	30/7	0.1261	0.1261	0.3783	0.883	746.3	21000	22700	26700	.0344	.0424	1204
Parakeet	556.5	24/7	0.1523	0.1015	0.3045	0.914	715.9	15200	16600	19200	.0298	.0368	1306
Dove	556.5	26/7	0.1463	0.1138	0.3413	0.927	765.1	18200	19900	23200	.0297	.0366	1315
Eagle	556.5	30/7	0.1362	0.1362	0.4086	0.953	870.6	24500	26500	31100	.0295	.0363	1331
Peacock	605	24/7	0.1588	0.1058	0.3175	0.953	778.3	16500	18100	20800	.0274	.0339	1379
Squab	605	26/7	0.1525	0.1186	0.3559	0.966	831.8	19700	21300	25200	.0273	.0337	1389
Wood Duck	605	30/7	0.1420	0.1420	0.4260	0.994	946.5	26000	28300	33300	.0271	.0334	1407
Teal	605	30/19	0.1420	0.0852	0.4260	0.994	938.6	26600	29300	34800	.0272	.0335	1406
Rook	636	24/7	0.1628	0.1085	0.3256	0.977	818.2	17300	19000	21900	.0261	.0322	1425
Grosbeak	636	26/7	0.1564	0.1216	0.3649	0.991	874.4	20700	22400	26000	.0260	.0321	1435
Scoter	636	30/7	0.1456	0.1456	0.4368	1.019	995.0	27400	29700	35000	.0258	.0318	1454
Egret	636	30/19	0.1456	0.0874	0.4368	1.019	986.8	28000	30900	36600	.0258	.0319	1453
Flamingo	666.6	24/7	0.1667	0.1111	0.3333	1.000	857.6	18200	19900	22900	.0249	.0308	1470
Gannet	666.6	26/7	0.1601	0.1245	0.3736	1.014	916.4	21700	23400	27300	.0248	.0306	1480
Stilt	715.5	24/7	0.1727	0.1151	0.3453	1.036	920.5	19500	21300	24600	.0232	.0287	1540
Starling	715.5	26/7	0.1659	0.1290	0.3871	1.051	983.7	23300	25200	29800	.0231	.0286	1550
Redwing	715.5	30/19	0.1544	0.0927	0.4633	1.081	1110.1	30800	34000	39800	.0230	.0284	1570
Cuckoo	795	24/7	0.1820	0.1213	0.3640	1.092	1022.7	21700	23300	26900	.0209	.0259	1650
Drake	795	26/7	0.1749	0.1360	0.4080	1.107	1093.0	25900	28000	32600	.0209	.0257	1662
Macaw	795	42/7	0.1376	0.0764	0.2293	1.055	857.5	11800	12600	14300	.0211	.0262	1621
Tern	795	45/7	0.1329	0.0886	0.2658	1.063	894.9	14200	15200	17400	.0210	.0263	1618
Condor	795	54/7	0.1213	0.1213	0.3640	1.092	1022.7	21700	23300	26900	.0209	.0266	1618
Mallard	795	30/19	0.1628	0.0977	0.4884	1.139	1233.4	34300	37900	44300	.0207	.0255	1683
Ruddy	900	45/7	0.1414	0.0943	0.2828	1.131	1013.1	15800	17000	19200	.0186	.0233	1755
Canary	900	54/7	0.1291	0.1291	0.3873	1.162	1157.8	24600	26400	30500	.0184	.0236	1756
Redbird	954	24/7	0.1994	0.1329	0.3987	1.196	1227.3	26000	28000	32300	.0174	.0217	1859
Rail	954	45/7	0.1456	0.0971	0.2912	1.165	1073.9	16700	18000	20400	.0175	.0220	1824
Towhee	954	48/7	0.1410	0.1097	0.3290	1.175	1122.3	19700	21300	24300	.0175	.0218	1842
Cardinal	954	54/7	0.1329	0.1329	0.3987	1.196	1227.3	26000	28000	32300	.0174	.0223	1825
Canvasback	954	30/19	0.1783	0.1070	0.5350	1.248	1480.1	41100	45400	53100	.0172	.0214	1897
Snowbird	1033.5	42/7	0.1569	0.0871	0.2614	1.203	1114.7	15400	16500	18500	.0162	.0204	1924
Ortolan	1033.5	45/7	0.1515	0.1010	0.3031	1.212	1163.4	18100	19500	22000	.0162	.0204	1921
Curlew	1033.5	54/7	0.1383	0.1383	0.4150	1.245	1329.6	28200	30300	35000	.0161	.0206	1924
Bluejay	1113	45/7	0.1573	0.1048	0.3145	1.258	1252.8	19500	21100	23800	.0150	.0190	2017
Finch	1113	54/19	0.1436	0.0861	0.4307	1.292	1428.9	30400	33200	38700	.0150	.0193	2015
Bunting	1192.5	45/7	0.1628	0.1085	0.3256	1.302	1342.4	21400	23500	25400	.0140	.0178	2110
Bittern	1272	45/7	0.1681	0.1121	0.3362	1.345	1431.9	22300	24000	27200	.0131	.0167	2200
Pheasant	1272	54/19	0.1535	0.0921	0.4604	1.381	1633.0	34100	37300	43000	.0131	.0169	2200
Dipper	1351	45/7	0.1733	0.1155	0.3465	1.386	1520.8	23700	25500	28800	.0124	.0158	2289
Martin	1351	54/19	0.1582	0.0949	0.4745	1.424	1734.5	36200	39600	45600	.0123	.0160	2288
Bobolink	1431	45/7	0.1783	0.1189	0.3566	1.427	1610.8	25100	27000	30500	.0117	.0150	2375
Plover	1431	54/19	0.1628	0.0977	0.4884	1.465	1837.2	38400	41900	48300	.0117	.0151	2375
Nuthatch	1510	45/7	0.1832	0.1221	0.3664	1.465	1699.8	26500	28100	31800	.0111	.0143	2459
Parrot	1510	54/19	0.1672	0.1003	0.5017	1.505	1938.6	40400	44200	51000	.0110	.0144	2460
Ratite	1590	42/7	0.1946	0.1081	0.3243	1.492	1715.0	23400	25000	27900	.0105	.0136	2543
Lapwing	1590	45/7	0.1880	0.1253	0.3759	1.504	1789.8	27900	29600	33500	.0105	.0136	2543
Falcon	1590	54/19	0.1716	0.1030	0.5148	1.544	2041.4	42600	46600	53700	.0105	.0137	2545
Chukar	1780	84/19	0.1456	0.0873	0.4367	1.601	2070.8	35400	38200	43900	.0094	.0122	2751
Mockingbird	2034.5	72/7	0.1681	0.1121	0.3362	1.681	2159.3	27200	28900	32000	.0083	.0110	2960
Roadrunner	2057	76/19	0.1645	0.0768	0.3839	1.700	2245.2	31700	33900	38300	.0082	.0108	2992
Bluebird	2156	84/19	0.1602	0.0961	0.4806	1.762	2508.2	42100	45500	51700	.0078	.0103	3106
Kiwi	2167	72/7	0.1735	0.1157	0.3470	1.735	2299.9	29000	30800	34100	.0078	.0104	3080
Thrasher	2312	76/19	0.1744	0.0814	0.4070	1.802	2523.5	35600	38100	43000	.0073	.0098	3218
Joree	2515	76/19	0.1819	0.0849	0.4245	1.880	2745.1	38700	41400	46800	.0067	.0092	3390

Factory photo :

Production line :(aging oven )

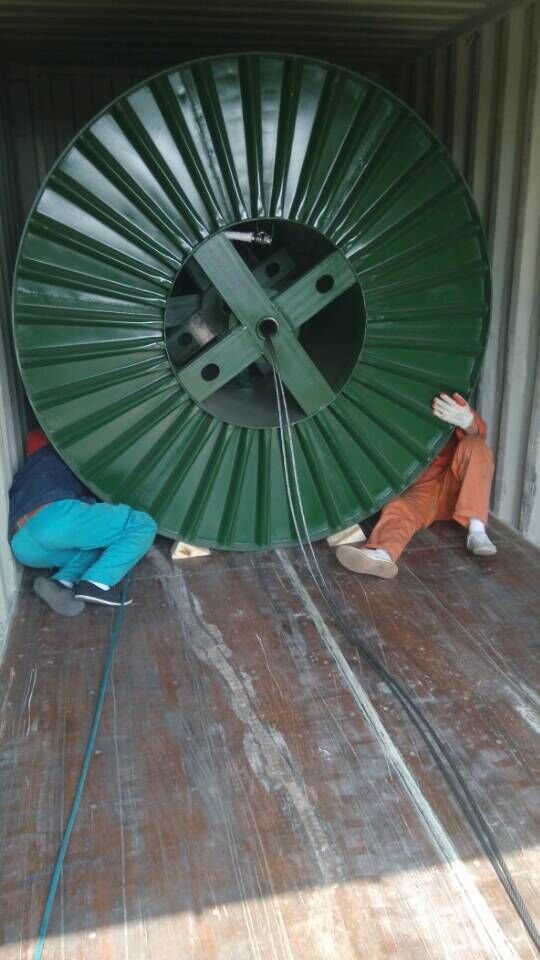

Container :

Huatong Cable Inc. has made outstanding contribution to STATE GRID, China SOUTH POWER GRID and the construction of domestic and foreign power market since foundation in 1993. The honors should be attributed to more than 20 years of constant R&D, market service and strong will.

Huatong Cable Inc. has set up overhead conductor division, power cable division and division of wire and cable for equipment. The division respectively takes charge of manufacture and marketing of overhead conductor, power cable and wire and cable for equipment. In 2002, our company set up the cable industry design and technology R&D department, providing technical support for product design and production. Our company makes independent innovation, and seeks cooperation with academic institutions including Shanghai Electric Cable Research Institute and China Electric Power Research Institute so as to meet the customized demands of customers and production needs of special cable. Now our company owns 25 exclusive rights to use trademark registered at home and abroad and 14 independent intellectual property patents. ACSR-720/50 aluminum cable steel reinforced has passed the technical appraisal of China Electricity Council. 500KV or above extra-high voltage conductor was put into production, came into service and had good operation record.

In 2013, Huatong Brand was awarded WELL KNOWN MARK OF China by the Trademark Office of the State Administration of Industry and Commerce, enjoying a high reputation in domestic market. The honor and legal status reflect the recognition of customers and support of the State Administration of Industry and Commerce. It is the only enterprise in cable industry in Henan that was awarded WELL KNOWN MARK OF China and Huatong brand will serve the society in the future.
