| Prod Model: |
WLCA12-2-Q |
| Contact Configuration: |
2-Circuit Double Break Type |
| Actuator: |
Adjustable Roller Lever |
Product Description

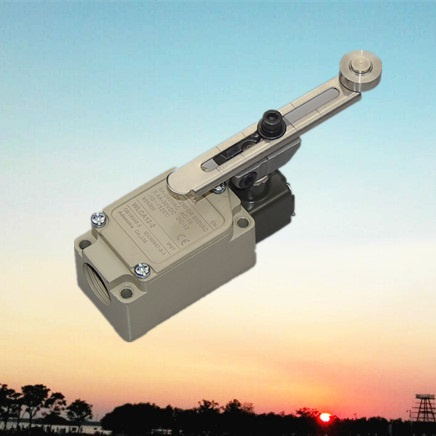

Standard sensitivity, IP67, Snap action, Self-reset mechanism, 2-circuit double break type, SPST-NO / SPST-NC, Adjustable roller lever
| Shape/Structure | General-purpose Limit switches |
|---|
| Actuator | Adjustable roller lever
|
|---|
| Contact configuration | 2-circuit double break type |
|---|
| Load | General load |
|---|
| Degree of protection | IEC60529 (JEM): IP67
NEMA250: Type3, 4, 13 |
|---|
| Shape/Structure | General-purpose Limit switches |
|---|
| Service life | General type |
|---|
| Operating mechanism | Snap action |
|---|
| Actuator | Adjustable roller lever |
|---|
| Frequency | 50/60 Hz |
|---|
| Switching mechanism | Self-reset mechanism |
|---|
| Contact configuration | 2-circuit double break type |
|---|
| Contact form | SPST-NO / SPST-NC |
|---|
| Load | General load |
|---|
| Ratings (AC): Non-Inductive load | Rated voltage: 125 VAC / Resistive load: 10 A(NC) 10 A(NO) / Lamp load: 3 A(NC) 1.5 A(NO)
Rated voltage: 250 VAC / Resistive load: 10 A(NC) 10 A(NO) / Lamp load: 2 A(NC) 1 A(NO)
Rated voltage: 500 VAC / Resistive load: 10 A(NC) 10 A(NO) / Lamp load: 1.5 A(NC) 0.8 A(NO) |
|---|
| Ratings (AC): Inductive load | Rated voltage: 125 VAC / Inductive load: 10 A(NC) 10 A(NO) / Motor load: 5 A(NC) 2.5 A(NO)
Rated voltage: 250 VAC / Inductive load: 10 A(NC) 10 A(NO) / Motor load: 3 A(NC) 1.5 A(NO)
Rated voltage: 500 VAC / Inductive load: 3 A(NC) 3 A(NO) / Motor load: 1.5 A(NC) 0.8 A(NO) |
|---|
| Ratings (DC): Non-Inductive load | Rated voltage: 8 VDC / Resistive load: 10 A(NC) 10 A(NO) / Lamp load: 6 A(NC) 3 A(NO)
Rated voltage: 14 VDC / Resistive load: 10 A(NC) 10 A(NO) / Lamp load: 6 A(NC) 3 A(NO)
Rated voltage: 30 VDC / Resistive load: 6 A(NC) 6 A(NO) / Lamp load: 4 A(NC) 3 A(NO)
Rated voltage: 125 VDC / Resistive load: 0.8 A(NC) 0.8 A(NO) / Lamp load: 0.2 A(NC) 0.2 A(NO)
Rated voltage: 250 VDC / Resistive load: 0.4 A(NC) 0.4 A(NO) / Lamp load: 0.1 A(NC) 0.1 A(NO) |
|---|
| Ratings (DC): Inductive load | Rated voltage: 8 VDC / Inductive load: 10 A(NC) 10 A(NO) / Motor load: 6 A(NC) 6 A(NO)
Rated voltage: 14 VDC / Inductive load: 10 A(NC) 10 A(NO) / Motor load: 6 A(NC) 6 A(NO)
Rated voltage: 30 VDC / Inductive load: 6 A(NC) 6 A(NO) / Motor load: 4 A(NC) 4 A(NO)
Rated voltage: 125 VDC / Inductive load: 0.8 A(NC) 0.8 A(NO) / Motor load: 0.2 A(NC) 0.2 A(NO)
Rated voltage: 250 VDC / Inductive load: 0.4 A(NC) 0.4 A(NO) / Motor load: 0.1 A(NC) 0.1 A(NO) |
|---|
| Inrush current | NC: 30 A
NO: 20 A |
|---|
| Conduit size | G1/2 |
|---|
| Earth terminal | Without ground terminal |
|---|
| Ambient temperature | Operating: -10 to 80 ºC |
|---|
| Ambient humidity | Operating: 35 to 95% |
|---|
| Permissible operating speed | 1 mm/s to m/s |
|---|
| Permissible operating frequency (Mechanically) | 120 operations / 1 minute Max. |
|---|
| Permissible operating frequency (Electrically) | 30 operations / 1 minute Max. |
|---|
| Contact resistance | 25 mOhm Max. (Initial value)
(Measuring method is contact resistance meter.) |
|---|
| Insulation resistance | Between each terminal of the same polarities: null MΩ
Between live-metallic part and ground: null MΩ
Between each terminal and non-live-metallic part: null MΩ
(at 500 VDC Megger) |
|---|
| Dielectric strength | Between each terminal of the same polarities: null V
Between live-metallic part and ground: null V
Between each terminal and non-live-metallic part: null V
(50/60 Hz for 1 min) |
|---|
| Durability (Mechanically) | 15,000,000 operations Min. (No load)
(Temperature, Humidity conditions: 5 CEL to 35 CEL, 40 %RH to 70 %RH) |
|---|
| Durability (Electrically) | 750,000 operations Min. (Resistive load 10 A at 125 VAC)
(Temperature, Humidity conditions: 5 CEL to 35 CEL, 40 %RH to 70 %RH) |
|---|
| Vibration resistance (Malfunction) | Vibration frequency range: 10 to 55 Hz, Double amplitude: 1.5 mm, Contact opening: 1 ms Max. at the free position and the total travel position. |
|---|
| Shock resistance (Destruction) | 1,000 m/s2 |
|---|
| Shock resistance (Malfunction) | Contact opening is 1 ms Max. at the free position and the total travel position at 300 m/s2. |
|---|
| Degree of protection | IEC60529 (JEM): IP67
NEMA250: Type3, 4, 13 |
|---|
| Mounting specification | Front mounting
Back mounting |
|---|
| Operating Force (OF) | Standard value Max. 13.34 N |
|---|
| Release Force (RF) | Standard value Min. 2.23 N |
|---|
| Pre-Travel (PT) | Standard value 15 +/- 5 DEG |
|---|
| Over-Travel (OT) | Standard value 30 DEG Min. |
|---|
| Movement Differential (MD) | Standard value 12 DEG Max. |
|---|
| Condition of operating characteristics | When the rod length is 38 mm |
|---|
