ADSL Splitter for Rj11 and RJ45

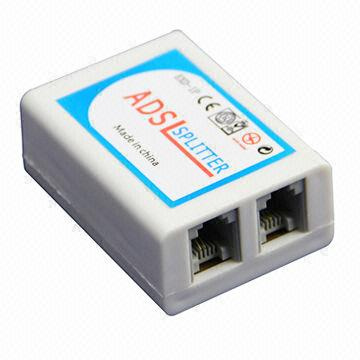

Name: ADSL Splitter for Rj11 and RJ45
Brand: all-electronics-online.com
SKU: 741704705
Availability: InStock
Rating: 4.3 (58 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ST-ASDL-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Use:	8p8c,6p6c,6p4c
Quality:	Superior Quality
Price:	Competitive Price
OEM/ODM:	Avalible
Usage:	Server
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

Product Decription

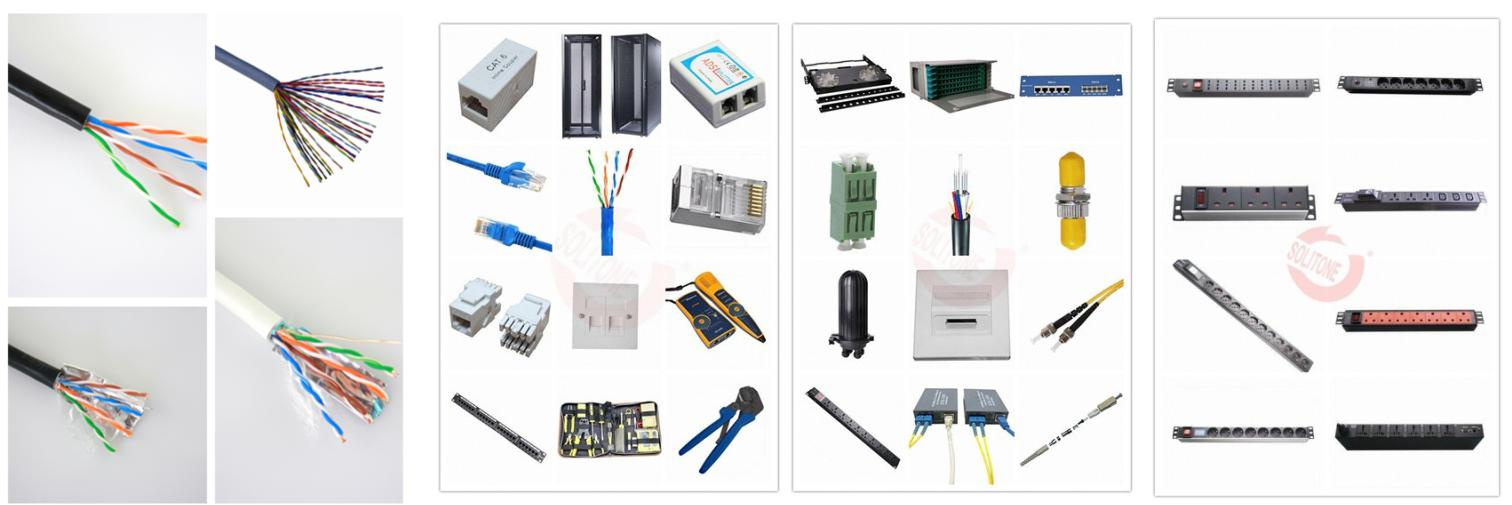

We are specialized in producing LAN cable, patch panel, keystone jack, patch cord, cable management, modular plug, faceplate, network cabinet, PDU and much more since 2000

Features:
It is used for separating voice signal and ADSL digital signal from telephone signal, it can protect the voice signal and ADSL digital signal from the interference of a telephone and a fax machine

Specifications:

Tip to ring
Pots-3dB, cut-off frequency	7/8kHz
Pots pass ripple loss	(20Hz to 4kHz) ± 0.5dB
Attenuation	30-300kHz ≥ -65dB, 30-1104kHz ≥ -55dB
DC resistance each line	12.5 Ohms (maximum)
Insertion loss (200Hz to 4kHz)	-0.5dB (maximum)
Return loss	300-500 ≥ -16, 500-2, 000 ≥ -18, 2, 000-2, 400Hz ≥ -18dB
Longitudinal balance (CMRR)
200Hz-1kHz)	-58dB (minimum)
3kHz	-53dB (minimum)
Pots loop current	100mA DC
Envelope delay distortion (0.2 to 4.0kHz)	100u seconds (maximum)
Impedance (300Hz to 3.4kHz)	600 Ohms
Hi-pot test	Tip to ring, 250V DC/1mA 2 seconds

Marketing Under "Solitone" Brand

Shenzhen Leo Network Technology has 14 years of experience in supplying network communication products for various applications such as copper network cabling, fiber-optic, network cabinet, security cables and mini LAN SOHO systems to clients in the Americas, the Middle East, Africa, Asia, Western Europe and Australasia. Our products are well marketed under the brand "Solitone".

Daily Output of 560, 000 Meters

By utilizing 10 production lines and supported by 250 to 300 workers in our 16, 000sqm factory, we can turn out 560, 000 meters daily. To guarantee quality, we have nine to 14 QC auditors with an average experience of 13 years. They perform piece-by-piece inspections at each production level before delivery. We have an R&D team composed of five to nine engineers with an average experience of 10 years. They can produce customized items. To keep your option fresh, we release three to five new models per month.

Get a Reply within 24 Hours

Over 20 customers have been cooperating with us for over 10 years. Because we are highly committed to providing high quality, 95% of our customers place repeat orders with us. We are willing to support all developing companies, small or medium.

E-mail us today to know more. We will reply within one working day.
