ADSS 12core 300m Span All Dielectric Self-Supporting Aerial Fiber Optical Network Cable

Name: ADSS 12core 300m Span All Dielectric Self-Supporting Aerial Fiber Optical Network Cable
Brand: all-electronics-online.com
SKU: 755718645
Availability: InStock
Rating: 4.7 (96 reviews)

Price:	US $ 0.4-0.9/Meter
Trade Terms:	FOB,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ADSS-300M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Structure:	ADSS Optical Fiber Cable
Installation:	Aerial
Fiber Options:	Itu G652D ,G657A,Om1,Om2,Om3,Om4
Fiber Count:	2-288 Cores
Installation Tensile:	15kn
Bend Radius (Under Installation:	20 X External Diameter of Cable
Strength Member:	Kevlar Yarn
Span:	80-750m
Certificate:	ISO9001/Ce/RoHS
Warranty (Year):	2
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	Other
Core:	2-288
Brand:	Efon
Sheath Material:	LSZH/PE Sheath/Flame Retardant Sheath/Anti-Rodent

Product Description

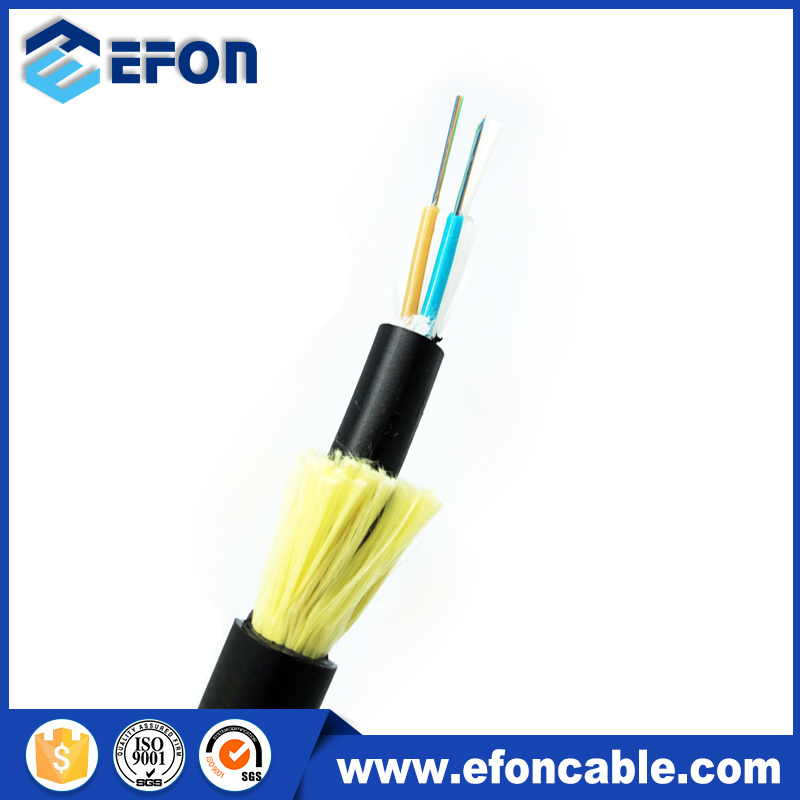

ADSS 12core 100m span All Dielectric Self-Supporting Aerial Fiber Optical Network Cable

Product Description:

ADSS (All-Dielectric Self-Supporting) cable is ideal forinstallation in distribution as well as transmission environments, even when live-line installations are required.

Features
Can be installed without shutting offthe power.
ExcellentAT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
Large span lengths and the largest span is over 200m.
Good performance oftensile strength and temperature.
The design life span is over 30 years.

Applications
Aerial

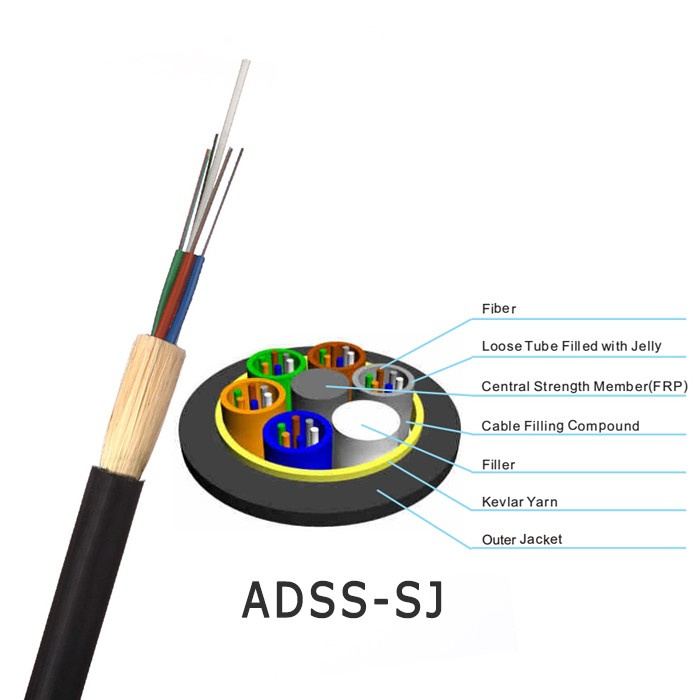

Structure and Technical Specifications ADSS-SJ(50-150M)

Ref. Outer Diameter (mm)	Ref. Weight (kg/km)		Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	Suitable Span (NESC Standard,m)
Ref. Outer Diameter (mm)	PE Jacket	AT Jacket	Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	A	B	C	D
11	110	120	1.0	2.5	8	3.0	6.6	2.1	120	80	100	80
11.5	115	125	1.5	4	10	4.5	7.3	1.8	180	120	150	120
12	120	130	2.5	6	15	7.5	8.3	1.5	250	150	290	150

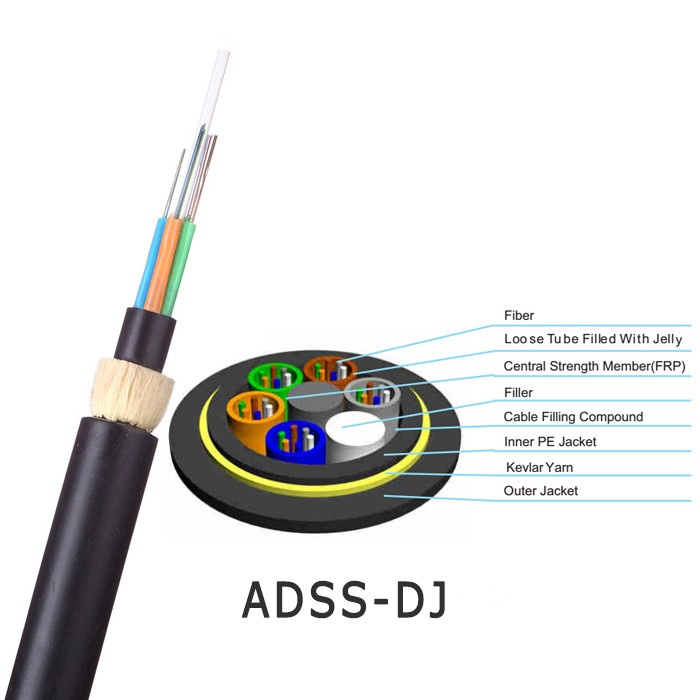

Structure and Technical Specifications ADSS-DJ(50-750M)

Ref. Outer Diameter (mm)	Ref. Weight (kg/km)		Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	Suitable Span (NESC Standard,m)
Ref. Outer Diameter (mm)	PE Jacket	AT Jacket	Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	A	B	C	D
12.5	125	136	1.5	4	10	4.6	7.6	1.8	160	100	140	100
13.0	132	142	2.25	6	15	7.6	8.3	1.5	230	150	200	150
13.3	137	148	3.0	8	20	10.35	9.45	1.3	300	200	290	200
13.6	145	156	3.6	10	24	13.8	10.8	1.2	370	250	350	250
13.8	147	159	4.5	12	30	14.3	11.8	1.0	420	280	400	280
14.5	164	177	5.4	15	36	18.4	13.6	0.9	480	320	460	320
14.9	171	185	6.75	18	45	22.0	16.4	0.6	570	380	550	380
15.1	179	193	7.95	22	53	26.4	18.0	0.3	670	460	650	460
15.5	190	204	9.0	26	60	32.2	19.1	0.1	750	530	750	510

Note: Only a part of ADSS cables are listed in the table. ADSS cables with other spans can be inquired from EFON directly.

Specifications in the table are got on condition that there is no height difference and the installation sag is 1 %.

Fiber count is 2 to 72. The identification of fibers complies with the national standard. This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.

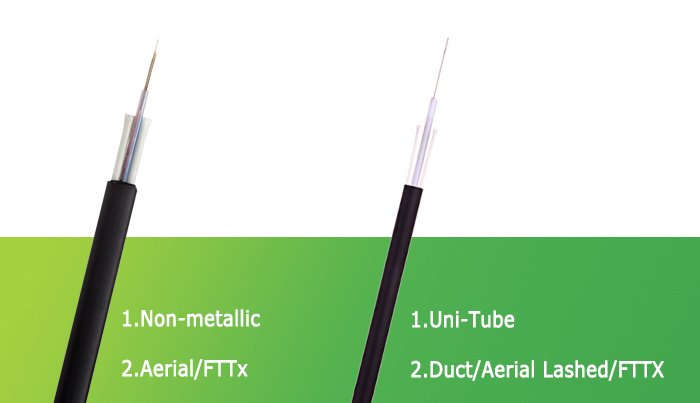

You May Like

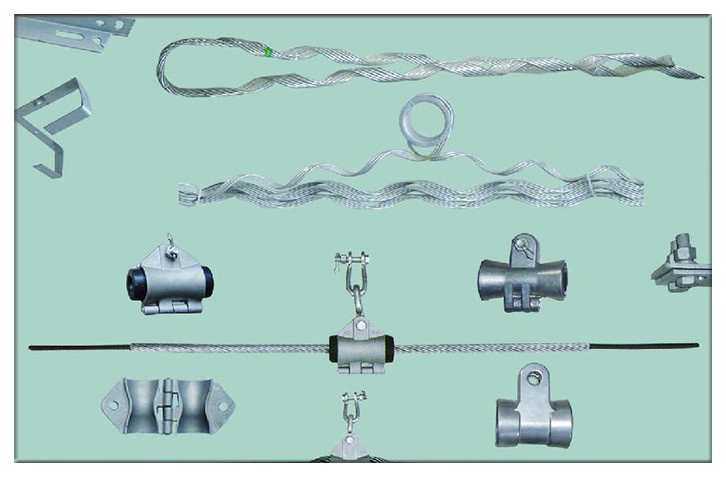

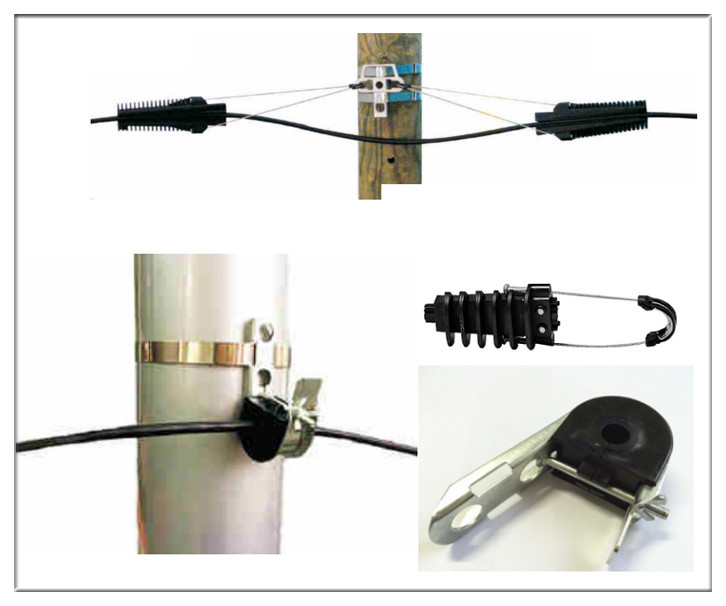

You May Need : Cable Fitting for ADSS Cable

About Us

We produce fiber optic cable, patch cord, pigtail, optical coupler, PLC splitter and other passive components for FTTX.

We offer products of a consistent quality. Our QC team monitors the manufacturing process and inspects all products before shipment.

We have a professional customer service team, which is always ready to consult you on all the issues related to our products.

Our Principles:
* Full customer satisfaction
* Commitment to high-quality service
* Relationships based on mutual trust and respect
* Long-term cooperation rather than one time profitable sale

EFON CABLE is your reliable partner in mainland China!

We were established in 2001 as a manufacturer of fiber optic cable. Since then we have been growing to become a leading Chinese manufacturer and exporter of fiber optic products around the globe.
