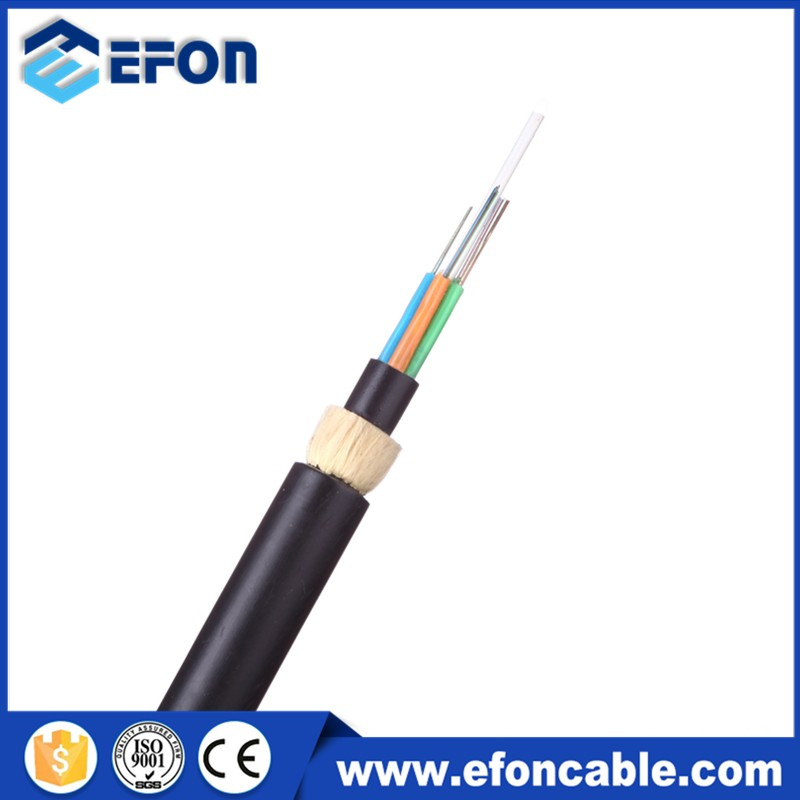

Aerial ADSS Fiber Optic Cable (ADSS)

Prod Model:	ADSS-200M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Structure:	ADSS Optical Fiber Cable
Applications:	Aerial
Fiber Options:	Itu G652D ,G657A,Om1,Om2,Om3,Om4
Fiber Count:	2-288 Cores
Installation Tensile:	8000n
Bend Radius (Under Installation):	20 X External Diameter of Cable
Strength Member:	Kevlar Yarn
Material Of Jacket:	Black Polyethylene (PE)
Certifications:	ISO9001/Ce/RoHS
Warranty (Year):	2
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	Other
Core:	2-288
Brand:	Efon
Sheath Material:	LSZH/PE Sheath/Flame Retardant Sheath/Anti-Rodent

Product Description

                              Aerial ADSS Fiber Optic Cable (ADSS)
Product Description:
  ADSS (All-Dielectric Self-Supporting) cable is ideal forinstallation in distribution as well as transmission environments, even when live-line installations are required.

Features
1.Can be installed without shutting offthe power.
2.ExcellentAT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
3.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and   backprops.
4.Large span lengths and the largest span is over 200m.
5.Good performance oftensile strength and temperature.
6.The design life span is over 30 years.

Applications
Aerial

Structure and Technical Specifications                                     ADSS-SJ(50-150M)

Ref. Outer Diameter (mm)	Ref. Weight (kg/km)		Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	Suitable Span (NESC Standard,m)
	PE Jacket	AT Jacket							A	B	C	D
11	110	120	1.0	2.5	8	3.0	6.6	2.1	120	80	100	80
11.5	115	125	1.5	4	10	4.5	7.3	1.8	180	120	150	120
12	120	130	2.5	6	15	7.5	8.3	1.5	250	150	290	150

Structure and Technical Specifications                                     ADSS-DJ(50-750M)

Ref. Outer Diameter (mm)	Ref. Weight (kg/km)		Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	Suitable Span (NESC Standard,m)
	PE Jacket	AT Jacket							A	B	C	D
12.5	125	136	1.5	4	10	4.6	7.6	1.8	160	100	140	100
13.0	132	142	2.25	6	15	7.6	8.3	1.5	230	150	200	150
13.3	137	148	3.0	8	20	10.35	9.45	1.3	300	200	290	200
13.6	145	156	3.6	10	24	13.8	10.8	1.2	370	250	350	250
13.8	147	159	4.5	12	30	14.3	11.8	1.0	420	280	400	280
14.5	164	177	5.4	15	36	18.4	13.6	0.9	480	320	460	320
14.9	171	185	6.75	18	45	22.0	16.4	0.6	570	380	550	380
15.1	179	193	7.95	22	53	26.4	18.0	0.3	670	460	650	460
15.5	190	204	9.0	26	60	32.2	19.1	0.1	750	530	750	510

Note: Only a part of ADSS cables are listed in the table. ADSS cables with other spans can be inquired from EFON directly.
