Aerial Cable 35 Kv 3-Layer AAAC (ANSI/ICEA S-66-524) Tree Wire

Name: Aerial Cable 35 Kv 3-Layer AAAC (ANSI/ICEA S-66-524) Tree Wire
Brand: all-electronics-online.com
SKU: 807928595
Availability: InStock
Rating: 4.7 (130 reviews)

Price:	US $ 29/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	48.69-652.4 AWG or Kcmil
Standard:	ANSI/Icea S-66-524
Factory Area:	100000mm2
QC:	25
Voltage Level:	35kv
Key Words:	Tree Wire
Insulation Layer:	3
Insulation Color:	Black
Trade Mark:	Huatong
HS Code:	8544601200
Delivery Time:	15days
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Aluminum
Insulation Material:	XLPE
Certification:	CCC
Brand:	Huatong

Product Description

Aluminum Conductors. Track-Resistant HD Polyethylene or Track-Resistant Crosslinked Polyethylene Covering.

Construction

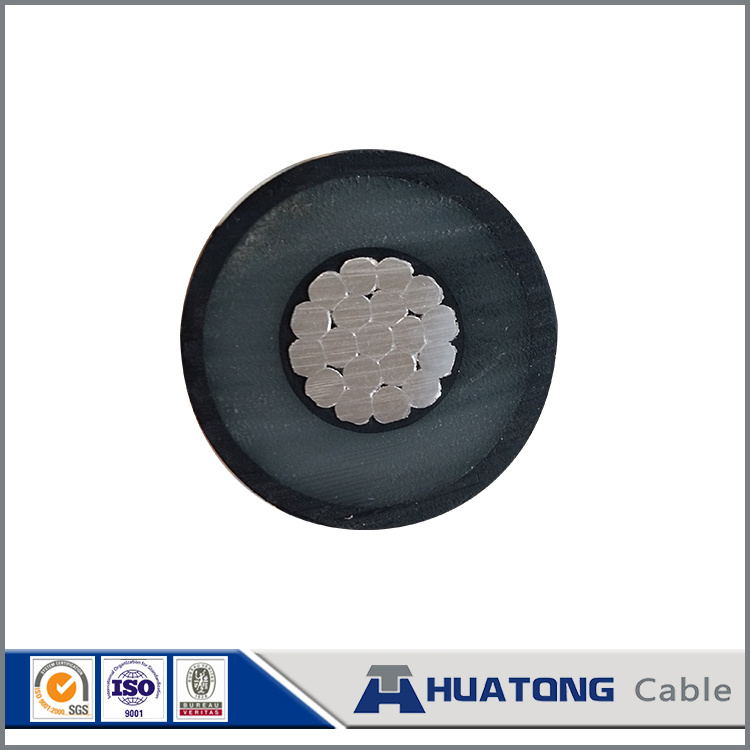

Conductors are concentrically stranded, AAC (1350-H19), either compressed or full compact depending on conductor size, AAAC or ACSR. Available with high-density track-resistant polyethylene (HDTRPE) or Track-Resistant Crosslinked Polyethylene (XLPE) covering. Strand shield option available as shown in illustration.

Application
Used for primary and secondary overhead distribution where limited space is available or desirable for rights of way. Installed as an uninsulated conductor; However, covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors in such close proximity. The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation; Particularly useful in congested areas such as alleyways or tight corridors.

Specifications
15kV - 35kV covered multi-layer tree wire meets or exceeds all applicable ICEA specifications and the following ASTM specifications:
ASTM B230
ASTM B231
ASTM B232
ASTM B398
ASTM B399
ASTM B400

3-Layer 35kV AAAC Tree Wire
Size	Equivalent		Conductor Diameter	Covering Thickness (mils)			Cable O.D.	Rated Strength	Weight per 1000 ft.
(kcmil)	AAC (AWG or kcmil)	Stranding	(mils)	Conductor Shield	Inner Layer	Outer Layer	(mils)	(lbs)	(lbs)
48.69	4	7	250	15	175	125	880	1584	278
77.47	2	7	316	15	175	125	946	2520	333
123.3	1/0	7	398	15	175	125	1028	4014	411
155.4	2/0	7	447	15	175	125	1077	4851	462
195.7	3/0	7	502	15	175	125	1132	6111	523
246.9	4/0	7	563	15	175	125	1193	7704	598
312.8	266.8	19	642	15	175	125	1272	9900	689
394.5	336.4	19	720	15	175	125	1351	11970	799
465.4	397.5	19	783	15	175	125	1412	14040	892
559.5	477	19	858	20	175	125	1498	16920	1024
652.4	556.5	19	927	20	175	125	1567	19710	1141

Huatong Cable Inc. has made outstanding contribution to STATE GRID, China SOUTH POWER GRID and the construction of domestic and foreign power market since foundation in 1993. The honors should be attributed to more than 20 years of constant R&D, market service and strong will.

Huatong Cable Inc. has set up overhead conductor division, power cable division and division of wire and cable for equipment. The division respectively takes charge of manufacture and marketing of overhead conductor, power cable and wire and cable for equipment. In 2002, our company set up the cable industry design and technology R&D department, providing technical support for product design and production. Our company makes independent innovation, and seeks cooperation with academic institutions including Shanghai Electric Cable Research Institute and China Electric Power Research Institute so as to meet the customized demands of customers and production needs of special cable. Now our company owns 25 exclusive rights to use trademark registered at home and abroad and 14 independent intellectual property patents. ACSR-720/50 aluminum cable steel reinforced has passed the technical appraisal of China Electricity Council. 500KV or above extra-high voltage conductor was put into production, came into service and had good operation record.

In 2013, Huatong Brand was awarded WELL KNOWN MARK OF China by the Trademark Office of the State Administration of Industry and Commerce, enjoying a high reputation in domestic market. The honor and legal status reflect the recognition of customers and support of the State Administration of Industry and Commerce. It is the only enterprise in cable industry in Henan that was awarded WELL KNOWN MARK OF China and Huatong brand will serve the society in the future.
