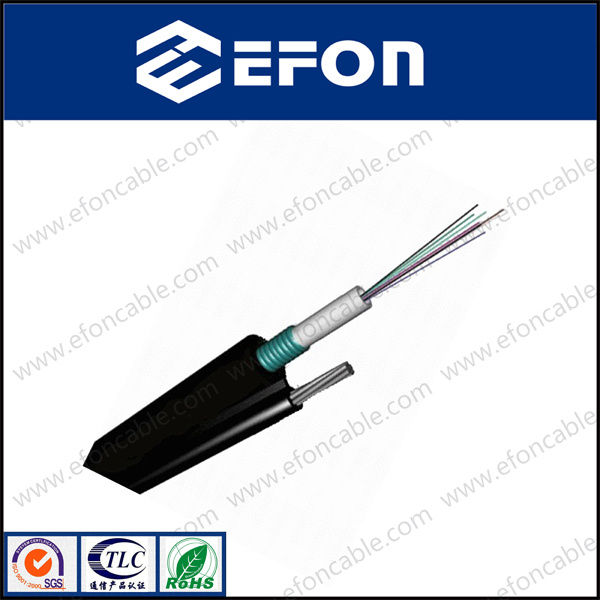

Aerial Fiber Optic Cable Gyxtc8s

Prod Model:	GYXTC8S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	Sm G652D
Fiber Material:	Doped Silica
Fiber:	Single Mode
Armored:	Aluminium Tape/Steel Tape
Loose Tube:	Central Loose Tube
Diameter Of Self Support Member:	0.9mm*7;1.0mm*7;1.2mm*7;1.5mm*7
Material Of Jacket:	Lszh/PE /Flame Retardant Sheath
Bending Radius:	Static 10*Cable-D: Dynamic 20*Cable-D
Max Tension:	4000n
Applications:	for Hanging on Poles
Application:	Communication
Certification:	CCC
Type:	Fiber Optical Cable
Connection Structure:	Other
Core:	2-288
Brand:	Efon
Sheath Material:	Lszh/PE Sheath/Flame Retardant Sheath/Anti-Rodent

Product Description

Description   The loose tube are made of high modulus plastics(PBT), which are filled with water resistant gel. The corrugated steel tape is applied which provide for crush resistant. Outer sheath is made of UV resistance PE jacket. Figure 8 self-supporting structure provide high tensile strength and enab les easy and cost aerial installations.

Features:
1, Unitube design. Up to 24fibers.
2, Water blocking, UV resistance, High and low temperature resistance.
3, The corrugated steel tape(CST) armor provide desirable crush resistant.
4, Adopt strict process and raw materials control guarantee the lifespan more than 30 years.

Application:
For hanging on poles

Products Standard

Mechanical Performance
Max Tension Performance	IEC 60794-1-2-E
Max. Operation Tension	IEC 60794-1-2-E1
Crush Test	IEC 6079 -1-2-E3
Impact Test	IEC 60794-1-2-E4
Repeated Bending	IEC 60794-1-2-E6
Torsion Test	IEC 60794-1-2-E7
Cable bend	IEC 60794-1-2-E11A
Attenuation Coefficient	ITU-T G.652
Structural Test	IEC-60793-1-20
Environmental Performance
Temperature Cycling	IEC 60794-1-2-F1
Water Penetration	IEC 60794-1-2-F5B
Filing Compound Flow	IEC 60794-1-E14

Structure and Technical Specifications


Fiber Count	2-8	10-12		14-24
Diameter of Self support member (Steel wire)	7x0.9mm	7x1.0mm		7x1.2mm
Diameter of Loose tube(mm)	2.4	2.4		2.8
Diameter of Cable(mm)	7.3	7.3		7.7
Gross weight(Kg/Km)	_	_		_
Min. bending radius	Static 10xD     Dynamic 20xD
Max. tensile force, N (short term)	2700N		3000N		4000N
